Industrial Ultra-Speed VDSL2 Extender
Introduction
LevelOne is an Industrial Ultra-Speed VDSL2 Extender that supports VDS-2201 VDSL2 profile 35b/30a/17a with a
remarkable aggregated bandwidth of over 300Mbps. It delivers fiber optic-like speeds on existing copper
infrastructure, enabling a good alternative in the place where fiber is not economical to deploy. The
VDS-2201 is equipped with a Gigabit Ethernet port (RJ45 connector) and one VDSL2 port (RJ45 connector) in
the metal enclosure for easy installation in hardened environment. The symmetric configuration can be a
applied as a long-reach Ethernet connection up to 3,000 s, while an Asymmetric configuration can be used feet
for other services like video streaming or IP surveillance services which require high traffic flow in a uni-
direction configuration.
Features
◼ Ultra-Speed Ethernet extension over UTP, CAT 5e/6/7, or Coaxial cables
◼ Easy DIP switch configuration to best perform in various cable infrastructure
◼ Cost effective bridge function to connect two Ethernet networks or devices
◼ IEEE 802.1Q VLAN tag transparent
◼ Support a wide operating temperature range
◼ Plug-and-play installation in harsh environments

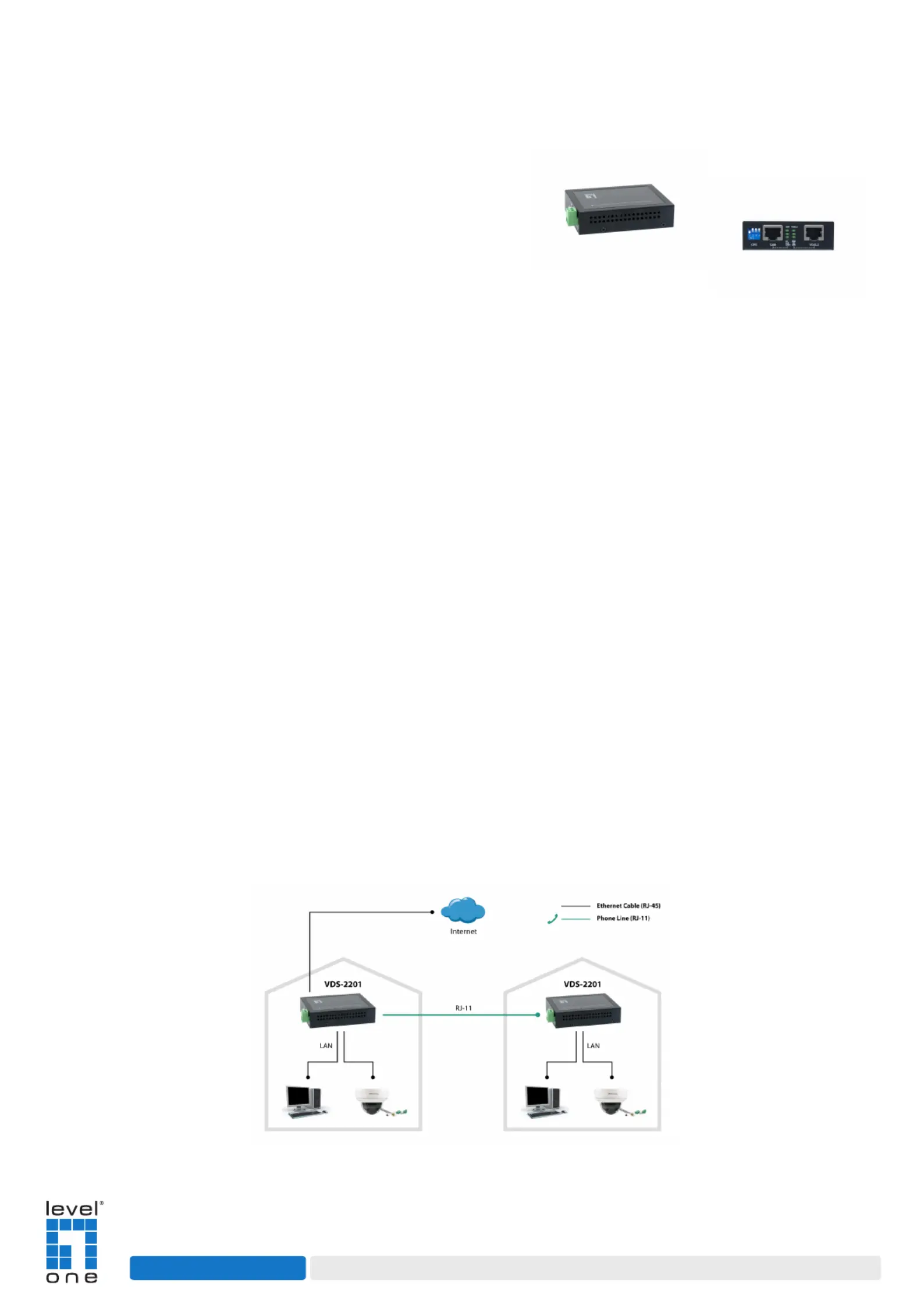

Application
w w w . l e v e l 1 . c o m
VDS-2201
Specifications
VDSL2 Interface
◼ RJ45 connector
◼ DMT Encoding
◼ On-board surge protection
LAN Interface
◼ 1 x RJ45 connector
◼ 10/100/1000 Base-T; Auto-Negotiation, Auto- -MDI/MDI X.
◼ Complying with IEEE 802.3/802.3u/802.3z
4-position DIP Switch
◼ Selectable Master(CO) or Remote(RT) mode
◼ Selectable Symmetric or Asymmetric mode
◼ Selectable G.INP or Interleave mode
◼ Selectable SNR High and SNR Low
LED
◼ Syste powerm
◼ CO/R modeT
◼ VDSL2 link status
◼ Etherne status t link
Power Supply
◼ 12~24 VDC over terminal block
◼ Power Consumption: 4.5 Watts (Max)
Power Wiring
◼ 2-PIN Terminal Block
◼ Wire range: 0.2 mm² to 2.5 mm²
◼ Solid wire (AWG):12-28
◼ Stranded wire (AWG): 12-30
◼ Torque:5 lb-In / 0.5 Nm / 0.56 Nm
◼ Wire strip length: 7-8 mm
◼ Max wire length: 3m (9.84 ft)
Environment
◼ Operating Temperature: -2 ~60 5°C
◼ Storage Temperature: -4 ~ +70°C 0
◼ Humidity: 0~95%HR (non-condensing)
Physical Characteristics
◼ ◼ Dimension (W x H x D): 94.5 x 23.0 x 72.5 mm
Weight 220g ：
◼ Installation (Optional): Wall Mounting or DIN-rail
Front Panel
Performance
UTP, 26AWG
Symmetric, SNR Low, G.INP
Distance
(Feet)
Upstream Line Rate
(Mbps)
Downstream Line Rate
(Mbps)
500
146
162
1,000
116
112
2,000
35
61
3,000
28
30
UTP, 26AWG
Asymmetric, SNR Low, Interleave
Distance
(Feet)
Upstream Line Rate
(Mbps)
Downstream Line Rate
(Mbps)
500
64
284
1,000
59
171
2,000
31
67
3,000
10
35
NOTE: The above performance data is for reference only, the
actual data rate may vary depending the quality the cables on of
and environmental factors.
Regulatory
Compliance
◼ CE & UKCA Class A
◼ FCC Part 15 Class A
◼ EN62368
NOTE: Features and specifications are subject change without prior notice. to
w w w . l e v e l 1 . c o m
