Installation Guide

Quality, Design and Innovation

home.liebherr.com/fridge-manuals

Contents

1 General safety instructions.................................. 2

2 Installation conditions.......................................... 3

2.1 Location......................................................................... 3

2.2 Installing multiple appliances.................................... 3

2.3 Mains connection......................................................... 4

3 Appliance dimensions........................................... 4

4 Recess dimensions................................................ 5

4.1 Internal dimensions..................................................... 5

5 Ventilation requirements...................................... 6

6 Custom panel weights.......................................... 6

7 Water connection*................................................ 6

7.1 Dimensions for the water connection...................... 7

7.2 Water pressure............................................................. 7

8 Transporting appliance......................................... 7

9 Unpacking the appliance...................................... 7

10 Setting up the appliance....................................... 7

10.1 After installation.......................................................... 7

11 Disposing of packaging......................................... 8

12 What the symbols mean....................................... 8

13 **** freezer compartment door*.......................... 9

13.1 Moving the door hinge................................................ 9

14 Reversing the door................................................ 9

15 Connecting the appliance to the water supply*.. 11

15.1 Connecting the hose................................................... 11

15.2 Checking the water system........................................ 11

16 Installing the appliance in the recess.................. 12

17 Cabinet fronts....................................................... 18

17.1 Dimensions.................................................................... 18

17.2 Mounting the cabinet front(s).................................... 19

17.3 Setting the clearance to avoid collision................... 19

18 Water tank*........................................................... 20

18.1 Inserting the water tank............................................. 20

19 Water filter*.......................................................... 20

19.1 Inserting the water filter............................................. 20

20 Connecting the appliance to the power supply.... 20

The manufacturer is continually working on the further

development of all types and models. Please be aware that

we reserve the right to make changes to the shape, equip‐

ment and technology.

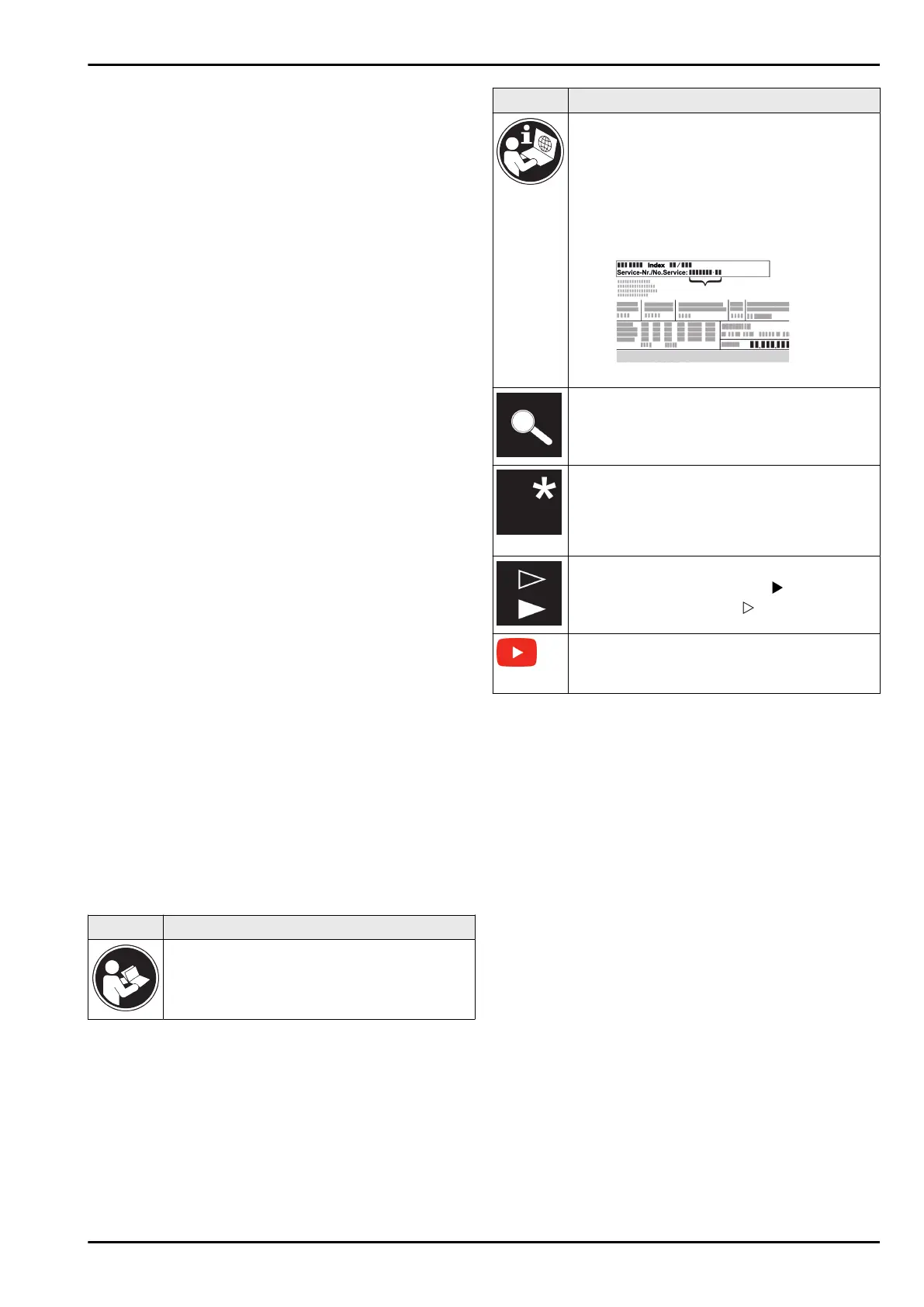

Symbol

Explanation

Read instructions

Please read the information in these instruc‐

tions carefully to understand all of the benefits

of your new appliance.

Symbol Explanation

Additional information on the Internet

The digital manual with additional informa‐

tion and in other languages can be found

via the QR code on the front of the

manual or by entering the service number at

home.liebherr.com/fridge-manuals.

The service number can be found on the serial

tag:

Fig.Example illustration

Check appliance

Check all parts for transport damage. If you

have any complaints, please contact your

agent or customer service.

Differences

These instructions apply to a range of models,

so differences are possible. Sections that

apply to certain models only are marked with

an asterisk (*).

Instructions and results

Instructions are marked with a .

Results are marked with a .

Videos

Videos about the appliances are available on

the YouTube channels of Liebherr-Hausgeräte.

1 General safety instructions

Please keep this assembly manual in a safe

place so you can refer back to it at any

time.

If you pass the appliance on, please hand

this assembly manual to the next user.

Read this assembly manual carefully before

installation and use to ensure safe and

correct use of the appliance. Follow

the instructions, safety instructions and

warning messages included at all times.

They are important for ensuring you can

operate and install the appliance safely and

without any problems.

First read the general safety instructions in

the “General safety instructions” section of

the operating instructions, which accom‐

pany these installation instructions, and

follow them. If you cannot find the

operating instructions, you can down‐

load the operating instructions from the

internet by entering the service number

at home.liebherr.com/fridge-manuals. The

General safety instructions

2 * Depending on model and options

Produktspezifikationen

Marke:	Liebherr
Kategorie:	Kühlschrank
Modell:	IRBci 5170 Peak
Display-Typ:	TFT
Breite:	559 mm
Tiefe:	546 mm
Gewicht:	70300 g
Produktfarbe:	Weiß
Steuerung:	Berührung
Höhe:	1770 mm
AC Eingangsspannung:	220 - 240 V
AC Eingangsfrequenz:	50 - 60 Hz
Eingebautes Display:	Ja
Verpackungsbreite:	572 mm
Verpackungstiefe:	622 mm
Verpackungshöhe:	1829 mm
Paketgewicht:	74200 g
Geräteplatzierung:	Integriert
Energieeffizienzklasse:	C
Kabellänge:	2.2 m
Gehäusematerial:	Edelstahl
Energieeffizienzskala:	A bis G
Verstellbare Füße:	Ja
Stromstärke:	1.2 A
Minimale Betriebstemperatur:	10 °C
Maximale Betriebstemperatur:	43 °C
Nutzinhalt Kühlschrank:	296 l
Kühlschrank - Anzahl der Ablagen/Körbe:	8
Kühlschrank - Temperaturbereich:	3 - 9 °C
Jährlicher Energieverbrauch:	100 kWh
Energieverbrauch:	0.274 kWh/24h
Geräuschpegel:	32 dB
Türanschlag:	Rechts
Wechselbare Türen:	Ja
Türfarbe:	Weiß
Regalmaterial:	Glas
Klimaklasse:	SN-T
Lampentyp:	LED
Türschließ-Erinnerungs-Alarm:	Ja
Lärmemissionsklasse:	B
Einstellbare Regale:	Ja
Innenbeleuchtung Kühleinheit:	Ja
Anzahl der Gemüseschubladen:	3
Ablageflächen Kühlschranktür:	4
Eierablage:	Ja
Flaschengestelle:	Ja
Super Kühlungs-Funktion:	Ja
Fresh Zone Fach:	Ja
Abtauautomatik (Kühleinheit):	Ja
Einbauraum Breite:	570 mm
Einbauraum Tiefe:	550 mm
Einbauraum Höhe:	1772 mm
Türöffnungswinkel:	115 °
Urlaubsschaltung:	Ja
Dosenregal:	Ja
Multi Airflow System:	Nein
Energieeffizienzindex (EEI):	64
Fresh Zone Fach Nutzinhalt:	98.4 l
