Installation instructions

Side-by-Side combinations

101212

7085626 - 00

SBS ...

Contents

1 General safety information................................... 2

2 External dimensions of the appliance................. 2

3 Side-by-side assembly.......................................... 2

The manufacturer works constantly on the further development

of all the types and models. Therefore please understand that

we have to reserve the right to make design, equipment and

technical modifications.

To get to know all the benefits of your new appliance, please

read the information contained in these instructions carefully.

The instructions apply to several models. Differences may

occur. Text relating only to specific appliances is marked with

an asterisk (*).

Instructions for action are marked with a

, the results of

action are marked with a .

1 General safety information

The socket must be easily accessible so that

the appliance can be quickly disconnected

from the supply in an emergency. It must be

outside the area of the rear of the appliance.

DANGER identifies a situation involving direct

danger which, if not obviated, may

result in death or severe bodily

injury.

WARNING identifies a dangerous situation

which, if not obviated, may result in

death or severe bodily injury.

CAUTION identifies a dangerous situation

which, if not obviated, may result in

minor or medium bodily injury.

NOTICE identifies a dangerous situation

which, if not obviated, may result in

damage to property.

Note identifies useful information and tips.

2 External dimensions of the

appliance

Appliance designation Height A (mm)

SBS(es) 6352 1664

SBSes 7155 1841

SBSes 7165 1841

SBS(esf) 7212 1841

SBS(es) 7252 1841

SBS(es) 7253 1841

SBS 7262 1841

SBSes 7263 1841

SBSes 7353 1841

Fig. 1

For appliances supplied with wall spacers, the measurement

increases by 35 mm.

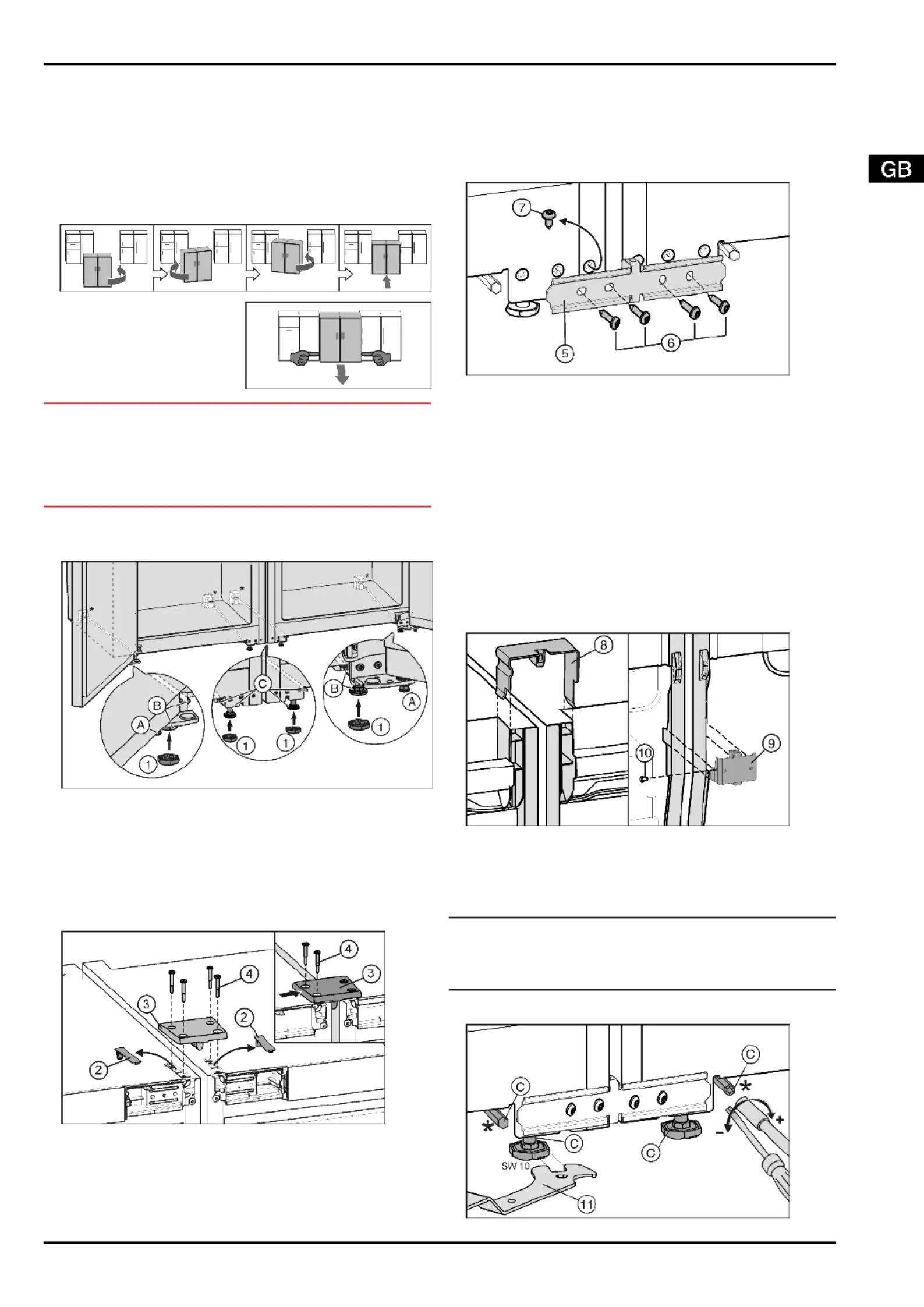

3 Side-by-side assembly

Install the freezer or the appliance with freezer compartment on

the left as viewed from the front. These appliances have a side-

wall heating on the right-hand side to prevent the formation of

condensation.

All the assembly components are supplied with the appliance.

Fig. 2

Fig. 3

Ensure that the following tools are to hand:

Spirit level

Power screwdriver

Screwdriver Torx® 25

Open-ended spanner size 10 (included in supply package)

Allen key size 2 (included in supply package)*

Information for moving the combined appliance:

General safety information

Before assembling the appliances, site them as closely as

possible to the final position.

When moving the appliances, always take hold of them at

the outer front corners. On no account should you push with

your knee against the side walls or door.

The combined appliance is easiest to shift diagonally by

moving the left and right corner alternately.

Once the combined appliance is exactly in front of the aper-

ture, push it straight in.

If the combined appliance

has to be pulled out of the

aperture again, take hold of

it in the lower third area and

pull it straight forwards.

NOTICE

Risk of damage when moving the combined SBS appliance!

The combined SBS appliance is heavy once assembled. The

appliance may be dented by improper movement.

Observe the information given on moving the appliance (see

above).

Remove all protective film from the outside of the housing.

On the front of the appliance:

Fig. 4

If necessary, completely retract the height-adjustable feet

Fig. 4 (A)

at the front of both appliances so that they are not

touching the floor.

Place the caps

Fig. 4 (1)

onto the four front height-adjust-

able feet.

Push both appliances together up to approx. 10 mm apart

so that they stand flush at the front.

Fig. 5

Unclip and remove the covers

Fig. 5 (2)

The joining plate automatically aligns the height of the appli-

ances. If one appliance is slightly higher than the other, start

with that appliance.

Put the joining plate

Fig. 5 (3)

in place and fix it loosely to

one appliance with two screws

Fig. 5 (4)

Move the joining plate sideways so that the centre bar of the

plate lies on the side wall of the appliance. Tighten the

screws.

Now screw the joining plate to the other appliance. As you

do this, shift the appliances together or apart slightly as

necessary.

Fig. 6

If the appliance is fitted with the pre-mounted screw

Fig. 6 (7)

: Undo the screw.

The joining plate automatically aligns the depth of the appli-

ances. If one appliance is further forward than the other, start

with that appliance. Otherwise start with the appliance on the

left.

Fix the joining plate

Fig. 6 (5)

loosely to one appliance with

two screws

Fig. 6 (6)

Move the joining plate sideways so that the centre bar of the

plate lies on the side wall of the appliance. Tighten the

screws.

Now screw the joining plate to the other appliance. As you

do this, shift the appliances together or apart slightly as

necessary.

On the rear of the appliance:

Fig. 7

Insert the joining clamp

Fig. 7 (8)

at the top of the centre

side walls.

Insert the joining angle

Fig. 7 (9)

into the recess at the

bottom.

If the joining angle is too loose, fix it with a screw

Fig. 7 (10)

Note

To avoid vibration noise, ensure neither the clamps nor the

screws are in contact with the tubes on the rear of the appli-

ance!

On the front of the appliance:

Fig. 8

Side-by-side assembly
