Please read carefully the instruction manual before use. Contents of this manual are

subject to change without prior notice for reasons such as functionality enhancements.

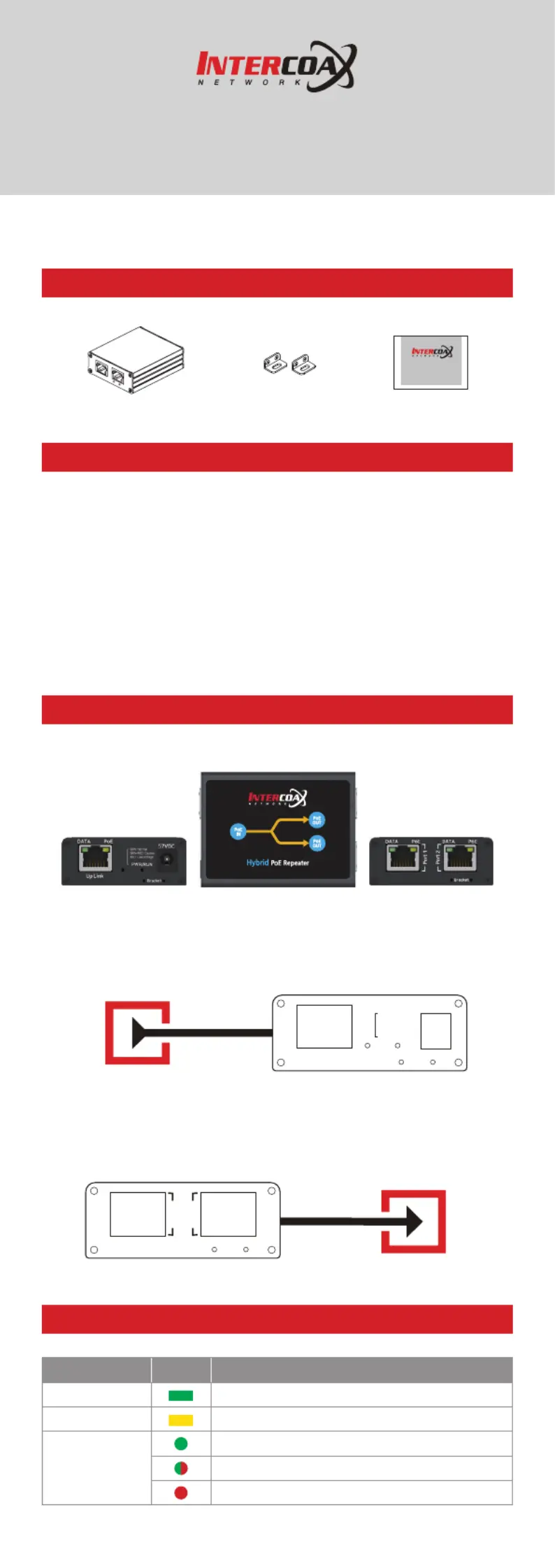

Quick Start Guide

HPS-01

Package

HPS-01BracketQuick Start Guide

Features



1 input 2 output design (Possible to connect 2 network devices using 1

cable)



Extended Ethernet transmission distance up to 200m

(Configured with the Hybrid PoE Switch Series)



10/100 Base-T Ethernet (Full Duplex)



Power Status LED indication



PoE input



DC48~57V power input



Cascade configuration



Over current protection for secured power supply



Surge Protection

Installation Guide

1. Product Image

2. HPS-01 is powered by power supply or PSE (Power Sourcing Equipment)

such as PoE Switch or Injector.

3. Connect UTP cable from PSE to “

PoE IN

” port. Data/PoE LED indicates

working status.

PoE IN

Bracket

57VDC

PWR/RUN

GRN: Normal

GRN+RED: Caution

RED: Low Voltage

DATAPoE

Up Link

4. Connect UTP cable from Camera to “

PoE OUT

” port and Data/PoE LED

indicates working status. Also, applying additional HPS-01s on the one

of “

PoE OUT

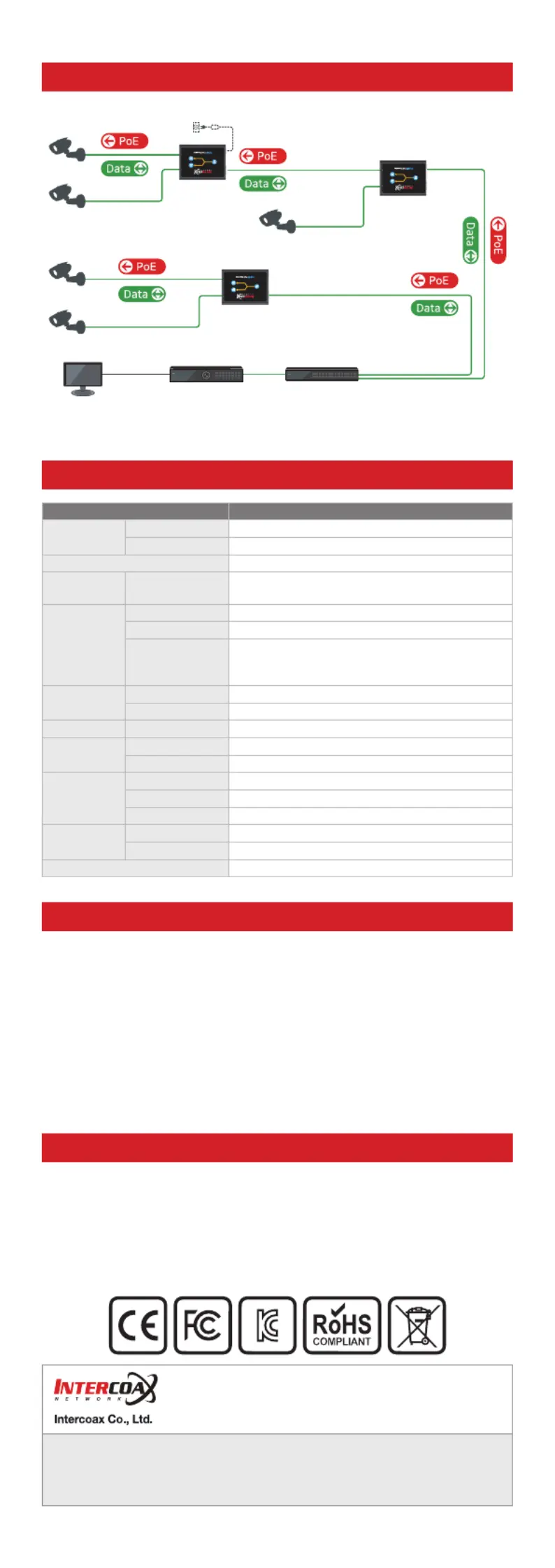

” port , it is possible to connect multiple network devices in a

cascade configuration.

PoE OUT

DATA

Port 1

PoEDATAPoE

Bracket

Port 2

Rev.4.1

LED Indicators

IndicatorColorFunction

DATA

Blinking : Ethernet Data Act

PoE

ON : PoE Powered

PWR/RUN

Normal (48VDC and more)

Caution

Power Shortage (38VDC and below)
