HD 1080P WEATHERPROOF

MOTORIZED VARIFOCAL SECURITY CAMERA

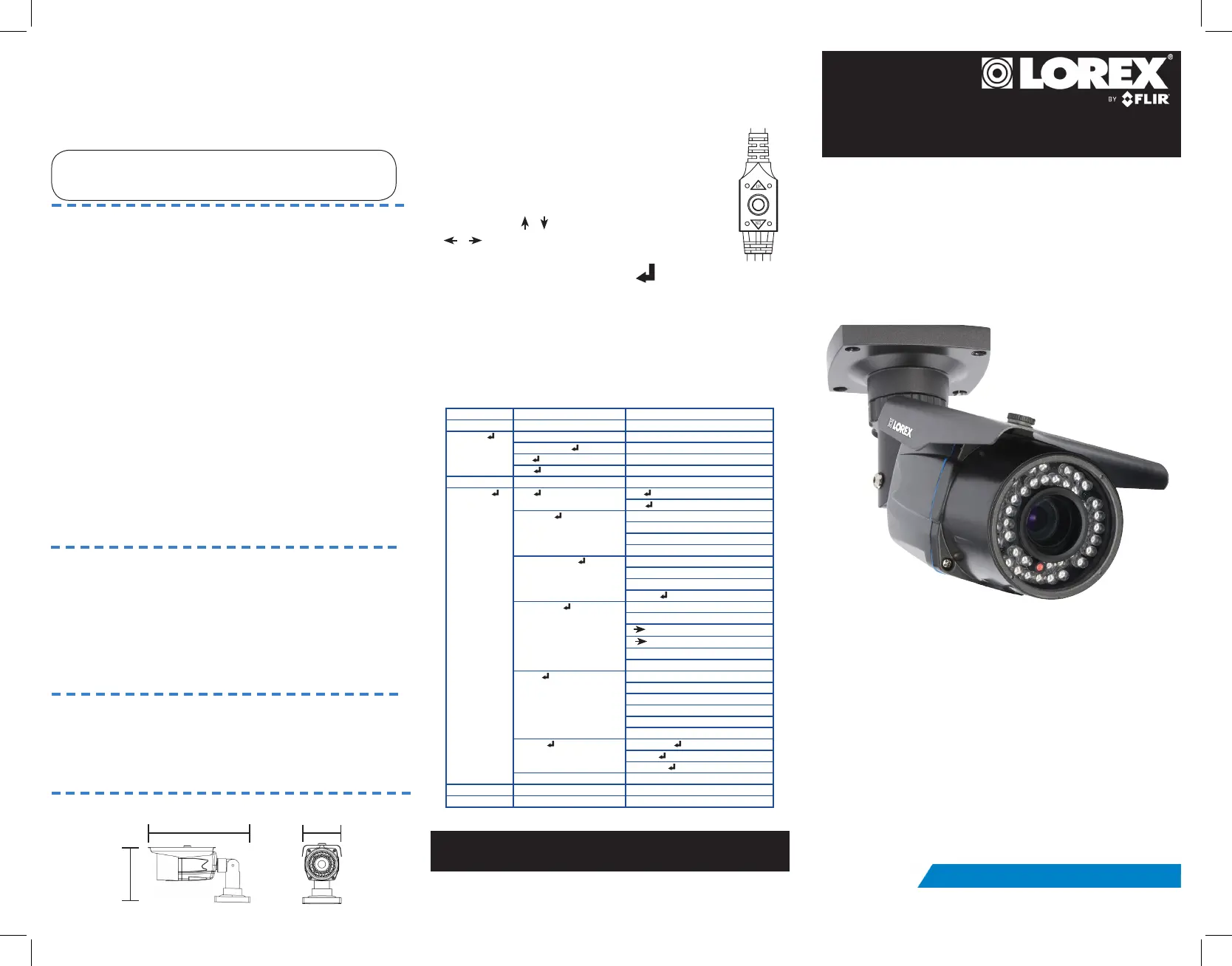

Quick Start Guide

English Version 2.0

LBV2723 SERIES

Dimensions

Contents

• Weatherproof HD bullet camera

• Mounting Kit

• Allen key

• 60ft UL (CM type) Rated BNC / Power Extension Cable

• Power Adapter

WARNING - A REGULATED power supply is REQUIRED for use with this

camera. Use of a non-regulated, non-conforming power supply can damage

this product and voids the warranty.

Warning/Caution

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use of the product and handle with care.

• Use the cameras within given temperature, humidity and voltage levels noted in

‘Camera Specifications’.

• Do not disassemble the cameras.

• Do not point the cameras directly towards the sun or a source of intense light.

• Use only the supplied regulated power supply. Use of a non-regulated, non-

conforming power supply can damage this product and voids the warranty.

• Periodic cleaning may be required. Use a damp cloth only. Do not use harsh

cleaners or aerosol cleaners.

Installation Tips

• Point the cameras where there is the least amount of obstructions (i.e. tree

branches).

• Install the cameras where they are difficult for vandals to reach.

• Secure cabling so that it is not exposed or easily cut.

• Cameras rated for outdoor use. Installation in a sheltered location

recommended.

Features

• High Performance 1080p Sony Exmor™ Image Sensor*

• Quick and easy camera view adjustment from your DVR or mobile device with

3x optical zoom lens**

• 960H analog video output for convenient set up or connecting to legacy 960H

DVRs

• Night vision range up to 170ft (52m) in ambient lighting & 115ft (35m) in total

darkness***

• Close up recognition in the dark with SmartIR

• High Dynamic Range (“WDR” in menu) for viewing in extremely challenging

lighting scenarios

• ClearNight imaging for superior low light performance, improving recording

efficiency

• Weatherproof for outdoor & indoor installation (IP66 Rated)****

• Extreme temperature performance (–22° ~ 140°F / –30° ~ 60°C)

• 34-90° remotely adjustable field of view (Horizontal)**

• Vandal resistant design with cable pass-through bracket

Disclaimers:

* 1080p cameras are compatible with 1080p HD DVR recorders. 720p cameras are compatible

with 720p & 1080p HD DVR recorders. This product is also compatible with 960H analog DVRs

using the analog BNC connector.

** Camera control is only compatible with Lorex HD LHV Series DVRs. To control a camera on an

analog/960H DVR, use the OSD controller on the camera cable.

*** Stated IR illumination range is based on ideal conditions in typical outdoor night time

ambient lighting and in total darkness. Actual range and image clarity depends on installation

location, viewing area and light reflection / absorption level of object.

**** Not intended for submersion in water. Installation in a sheltered location recommended.

235mm / 9.3”

95mm / 3.7”

130mm / 5.1”

On-Screen Display (OSD) Menu

MPX / HD Video Output

To use the OSD menu, access the PTZ menu of your DVR. See your

DVR’s instruction manual for more details.

Analog Video Output

Configure OSD menu options using the integrated control

stick on the camera cable (see image to the right).

• OPTIONAL: Connect a test monitor to the camera’s

analog (yellow) BNC connector.

• Push the middle of the joystick to open the OSD menu.

• Move the joystick / to select a setting, then

/ to change the setting value.

• Push the middle of the joystick to confirm selection.

• Arrows beside settings indicate a submenu (). Select the setting

and push the joystick to enter.

• Select RETURN and push the joystick to return to the previous menu,

or EXIT from the main menu to exit.

NOTE:Camera control through the DVR is only compatible with Lorex

HD LHV Series DVRs. To control a camera on an analog/960H DVR,

use the OSD controller on the camera cable.

Language

Video Format

BacklightOFF

WDR / HDR (HD only)

BLC

HLC

DNR

AdvancedLensELC

ALC

ExposureBrightness

Shutter

Sens-Up

AGC

White BalanceAuto

ATW

Preset

Manual

Day&NightMode

Delay

DN Level

ND Level

Smart IR

Smart IR Level

ImageSharpness

Color Gain

Freeze

Flip

D-Zoom

Defog

SpecialBlack Level

Privacy

DP Comp

Reset

Version

Exit
