FOR SUPPORT AND INFORMATION,

VISIT WWW.LOREXTECHNOLOGY.COM

Product Information

User Manuals

Quick Start Guides

Specification Sheets

Software Upgrades

Firmware Upgrades

Contents

•Super Resolution Color Camera with cable pass-

through stand

•Mounting screws x 3 / Allen key x 1

•60ft BNC / power extension cable

•BNC female / RCA male adapter

•Power adapter

189mm / 7.4”

Copyright © 2012 Lorex Technologies Inc.

As our products are subject to continuous improvement, Lorex reserves the right to modify product

design, specifications and prices, without notice and without incurring any obligation. E&OE

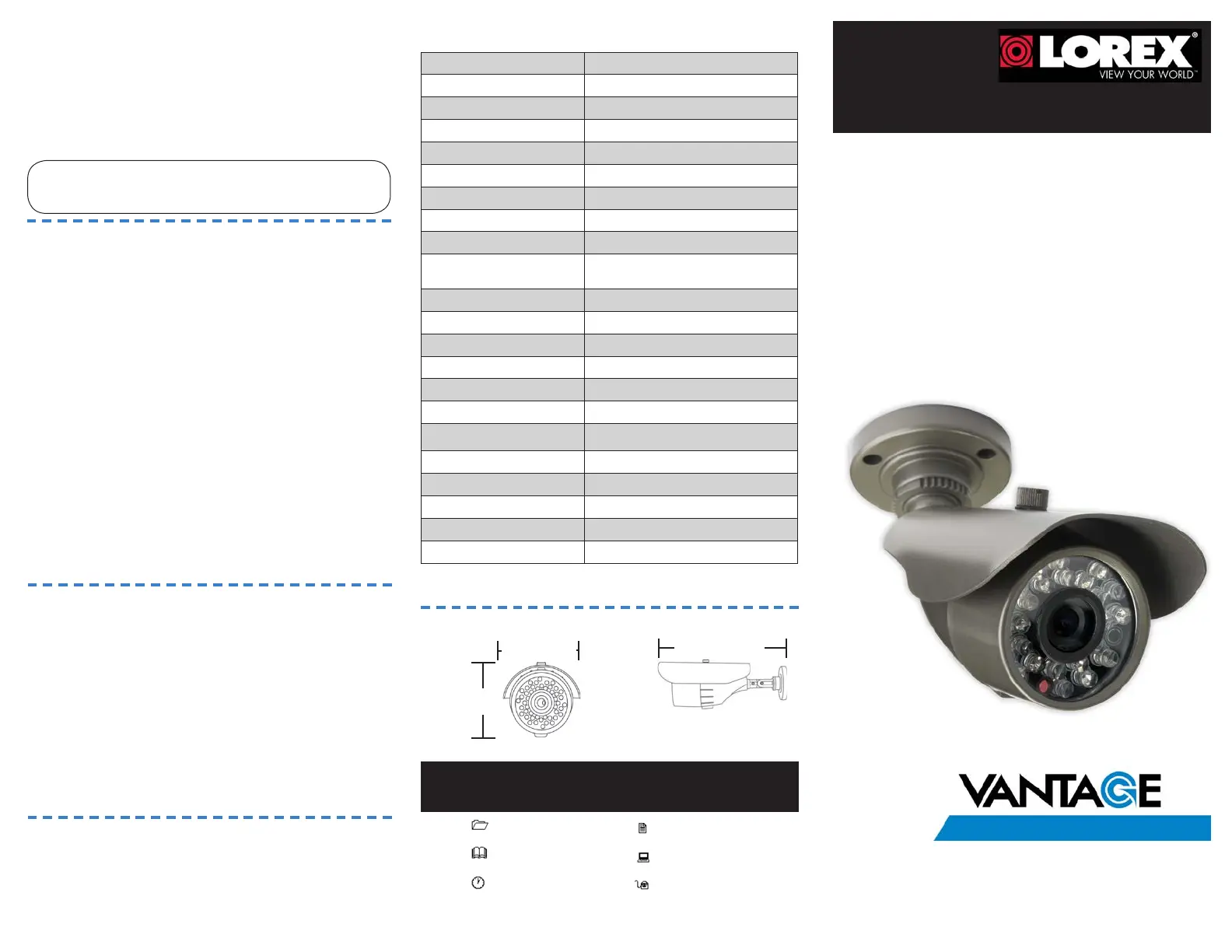

Camera Specifications

Image Sensor1/3” Color Image Sensor

Video FormatNTSC

Effective PixelsH: 720 V: 480

Resolution600 TV Lines

Scan System2:1 Interlace

Sync SystemInternal

S / N Ratio48dB (AGC Off)

IrisAES

AES Shutter Speed1/60 ~ 1/25,000 sec.

Min. Illumination0.1 Lux without IR LED

0 Lux with IR LED

Video OutputComposite 1.0Vpp @ 75ohm

Lens / Lens Type3.6mm F2.0 / Fixed

FOV (Diagonal)78°

TerminationBNC Type

IR LED Qty. / Type24 pieces / 850nm

Night Vision Range*80ft / 24m

Power Requirement12V DC ±10%

Power ConsumptionMax. 300mA (w / IR)

Operating Temp. Range–22° ~ 122°F / –30° ~ 50°C

Operating Humidity Range< 90% RH

Environmental Rating**IP66

Weight (including stand)0.8lbs / 0.4kg

* IR Illumination Range under ideal conditions. Objects at or beyond this range may be partially or

completely obscured, depending on the camera application.

** Not intended for submersion in water. Installation in a sheltered location recommended.

WARNING - A REGULATED UL / CSA APPROVED power supply is

REQUIRED for use with this camera. Use of a non-regulated, non-conforming

power supply can damage this product and voids the warranty.

Features

•Super resolution with enhanced optics delivering crystal clear

video at 600TV lines of resolution

•BrightNight viewing with enhanced low-light image sensor

•Close-up recognition at night with auto-light compensation

prevents wash-out effect

•Anti-glare feature ensures clear images under strong lighting

conditions

•Accurate colors with Lorex’s automatic light filtering technology

•Reliable camera operation coupled with patented ImageCool™

technology ensures optimal performance in extreme

temperatures (–22° ~ 122°F / –30° ~ 50°C)

•Night vision up to 80ft (24m) away in total darkness*

•Split glass design minimizes IR reflection

•See more with 3.6mm wide angle viewing lens (78° FOV)**

•Vandal-resistant design: cable pass-through bracket protects

connection cables

•IP66 rated aluminum housing for indoor / outdoor

installations***

Disclaimers:

* Infrared illumination range under ideal conditions. Actual range and clarity may vary

depending on scene / object reflection and camera application.

** Field of View, diagonal

*** Not intended for submersion in water. Installation in a sheltered location recommended.

Warning/Caution

•Read this guide carefully and keep it for future reference

•Follow all instructions for safe use of the product and handle with care

•Use the camera within given temperature, humidity and voltage levels

noted in Camera Specifications

•Do not disassemble the camera

•Do not point the camera directly towards the sun or a source of intense

light

•Use only the supplied regulated power supply. Use of a non-regulated,

non-conforming power supply can damage this product and voids the

warranty

•Periodic Cleaning may be required. Use a damp cloth only. Do not use

harsh cleaners or aerosol cleaners.

•The supplied extension cable is rated for surface mounting only

•Cables for in-wall / floor-to-floor installations are sold separately

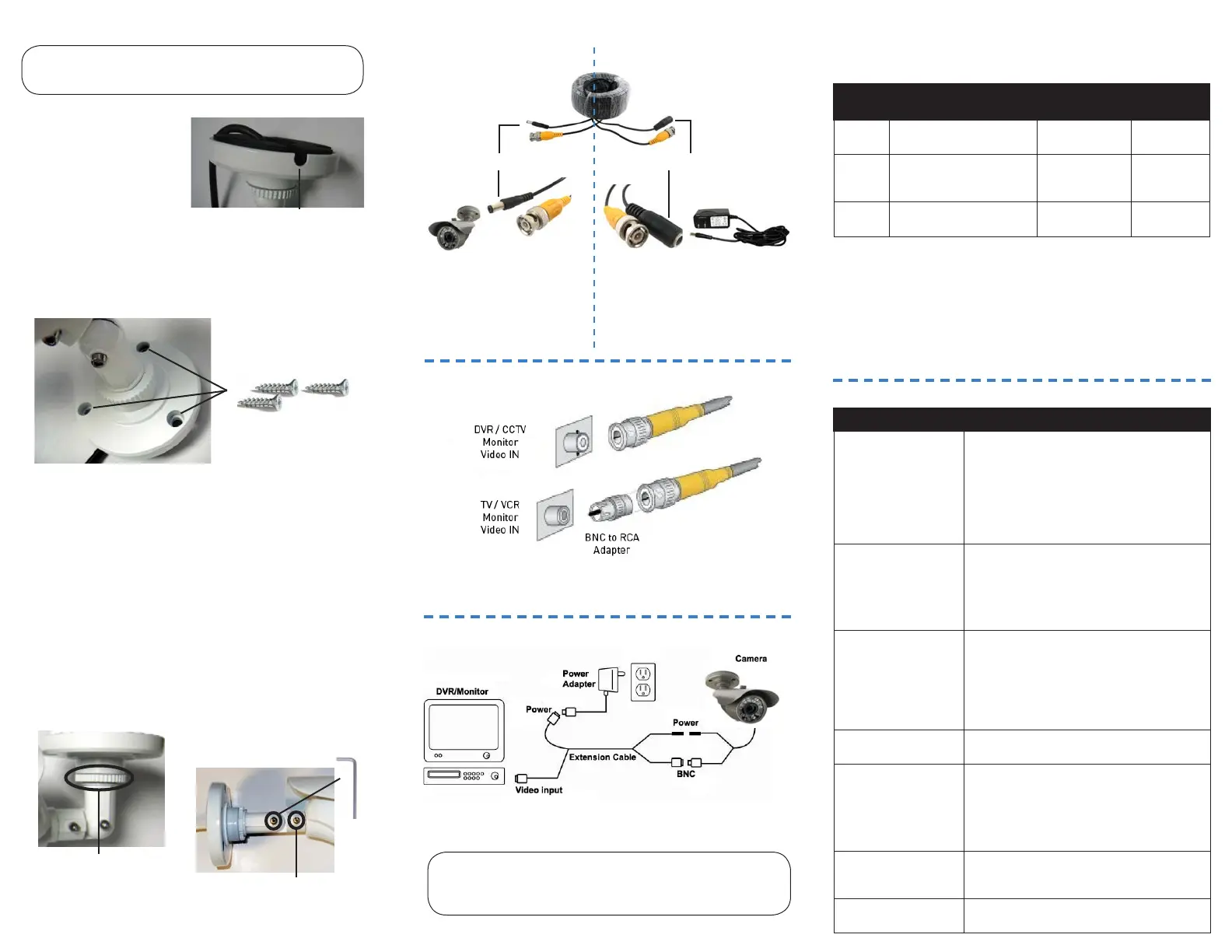

Installation Tips

•Point the camera where there is the least amount of obstructions (i.e. tree

branches)

•Install the camera in a location that is difficult for vandals to reach

•Secure cabling so that it is not exposed or easily cut

•Camera rated for outdoor use. Installation in a sheltered location

recommended

SUPER RESOLUTION

IR NIGHT VISION CAMERA

Quick Start Guide

English Version 1.0

LBC6041

60mm / 2.4”

Dimensions

67mm / 2.6”
