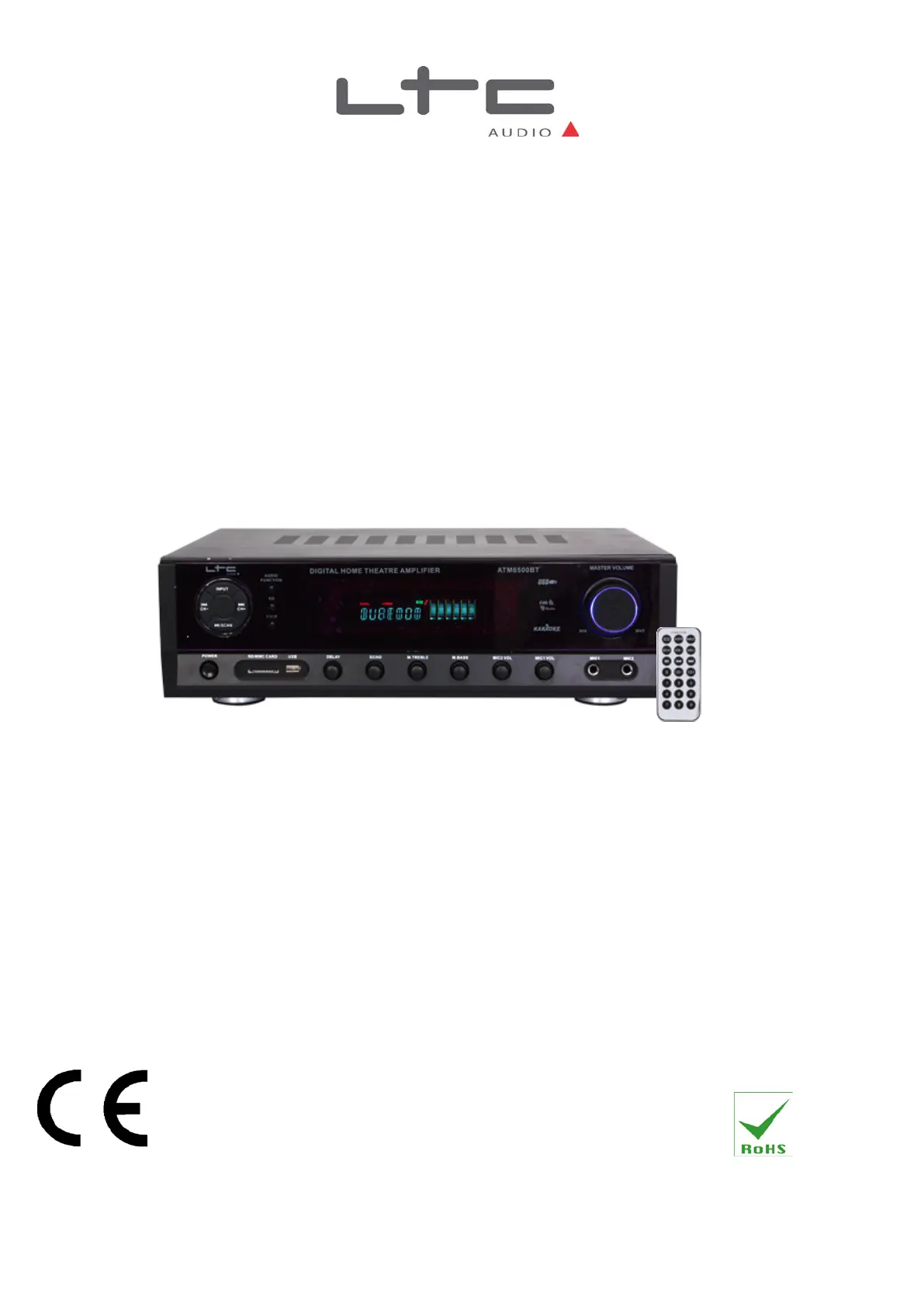

HIFI STEREO AMPLIFIER WITH BLUET OOTH & KARAOKE FUNCTION

AMPLIFICATEUR HIFI STEREO AVEC FONCTION BLUETOOTH & KARAOKE

HIFI STEREOVERSTÄRKER MIT BLUETOOTH & KARAOKE FUNKTION

HIFI STEREOVERSTERKER MET BLUETOOTH & KARAOKE FUNCTIE

AMPLIFICADOR HIFI STEREO CON FUNCIÓN BLUETOOTH & KARAOKE

AMPLIFICADOR HIFI STEREO COM A FUNÇÃO BLUETOOTH & KARAOKE

HIFI STEREO OJAČEVALEC Z BLUETOOTH IN KARAOKE

AMPLIFICATOR DE PUTERE CU FUNCTIE BLUETOOTH

ATM6500BT

GB - USER

MANUAL

F - MANUEL D’UTILISATION

D - BEDIENUNGSANLEITUNG

NL – HANDLEIDING

E – MANUAL DE USO

P- MANUAL DE INSTRUÇÕES

SLO - NAVODILA ZA UPORABO

RO - MANUAL DE UTILIZARE

©Copyright LOTRONIC 2015 ATM6500BT 1

SAFETY RECOMMENDATIONS

• Before using the device, please check it for any possible damages. In case of damage do not operate it.

• Unplug the UNIT if you do not use it for a certain time.

• Do not expose the unit to mechanical stress and humidity.

• Ensure sufficient ventilation around the unit. Do not cover the device and protect it from direct solar radiation.

• Clean the device with a dry and soft cloth only.

• Caution! Should the device itself get damaged, please let the repair to the manufacturer or to a qualified service

agent.

• The unit must be connected to an earthed mains outlet only.

• Keep out of the reach of children

• DISCONNECT DEVICE

Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain

readily operable.

Features

• USB/SD card input

• Spectrum Screen Display

• 2x microphone inputs with Echo & Volume control

• FM tuner

• Bluetooth function

Front panel

POWER: Press this button to power ON or OFF the unit

Play/Pause & Scan: Press this button to play the signal from USB/SD, Bluetooth. Press again to pause. In tuner mode,

press this button to scan all the available stations from the lowest frequency to highest frequency.

Previous: Press this button to go back to the beginning of the current track or move to the previous track.

Next: Press this button to move to the next track.

Repeat/Random: Press this button to select the repeat mode between REPEAT ONE, REPEAT ALL, RANDOM. The

default setting is repeat all.

Input: Press this button to cycle through the various inputs.

USB: Connect your USB flash drive here

SD: Connect your SD card here

DELAY: Use this knob to adjust the delay of microphone.

EQ MODE: Press this button to cycle through - s. the pre set equalizer mode

©Copyright LOTRONIC 2015 ATM6500BT 2

Audio Function: Press this button to switch the control mode between bass, treble & master volume

MIC1 & MIC2: Connect your microphones here

MIC1 VOL: Use this knob to adjust the volume of microphone 1

MIC2 VOL: Use this knob to adjust the volume of microphone 2

MIC Treble: Use this knob to adjust the treble of microphone

MIC Bass: Use this knob to adjust the bass of microphone

ECHO: Use this knob to adjust the echo of microphone.

Master Volume: Use this knob to control the master volume

OPERATION

Select a central location for the amplifier.

Connect the speaker wires (red & black) to the + and – terminals on the rear panel of the amplifier.

Connect your Surround boxes to the Surround inputs. Please note that the surround function only works when

Surround speakers are connected.

Connect the audio signal to the relevant sockets with the correct polarity.

Plug the mains lead in and switch the amplifier on once you have checked all connections.

Switch the audio sources on and adjust the master volume to the required level.

Karaoke: Plug a mic into MIC1 or MIC2 socket on the front panel. Before you use the mic, make sure that it is

switched off and the MIC volume button is set to the minimum. Connect the microphone, switch it on and adjust

slowly the volume and the echo.

If you don’t use the unit any longer, switch the amplifier off and disconnect it from the mains.

Signal Sources and their Connections:

• Connect a DVD- -player or a CD player to the terminal AUDIO INPUT or a data storage unit to the USB-interface or

insert a SD-memory card in the suitable slot or activate the Bluetooth function on your smartphone.

• Select the active signal source by pressing the INPUT button until the desired input source is displayed.

• Use the MP3 CONTROL-function for controlling the files on a connected data storage unit.

• If you wish to use the karaoke function of this device insert one or two microphones into MIC1 and MIC2. Their ,

signals are going to the signal output too.

Bluetooth Connection

The ATM6500BT is only discoverable when the input selected is Bluetooth. After selecting Bluetooth input mode on

the ATM6500BT, turn on the Bluetooth function on the cell phone and search the ATM6500BT. Its Bluetooth device

name is “ATM6500BT”. Pair and connect after search. There is no pairing code.

Rear Panel:

Power supply: Connect the unit to the power outlet.

Main Speakers Outputs: Connect your speakers here to receive the signal from the ATM65 00BT

SURROUND SPEAKER OUTPUTS: Connect your surround speakers here. Surround only works when all surround

©Copyright LOTRONIC 2015 ATM6500BT 3

Produktspezifikationen

Marke:	Lotronic
Kategorie:	Empfänger
Modell:	ATM6500BT
Breite:	430 mm
Tiefe:	270 mm
Gewicht:	4200 g
Produktfarbe:	Schwarz
Übertragungstechnik:	Verkabelt & Kabellos
Impedanz:	8 Ohm
Höhe:	120 mm
AC Eingangsspannung:	220-240 V
AC Eingangsfrequenz:	50 - 60 Hz
Eingebautes Display:	Ja
Paketgewicht:	5500 g
Audio Kanäle:	- Kanäle
THD, totalklirren:	- %
Rauschverhältnis (SNR):	76 dB
Frequenzbereich:	20 - 20000 Hz
Eingang Empfindlichkeit:	450 mV
Leistungshöhepunkt pro Kanal:	- W
