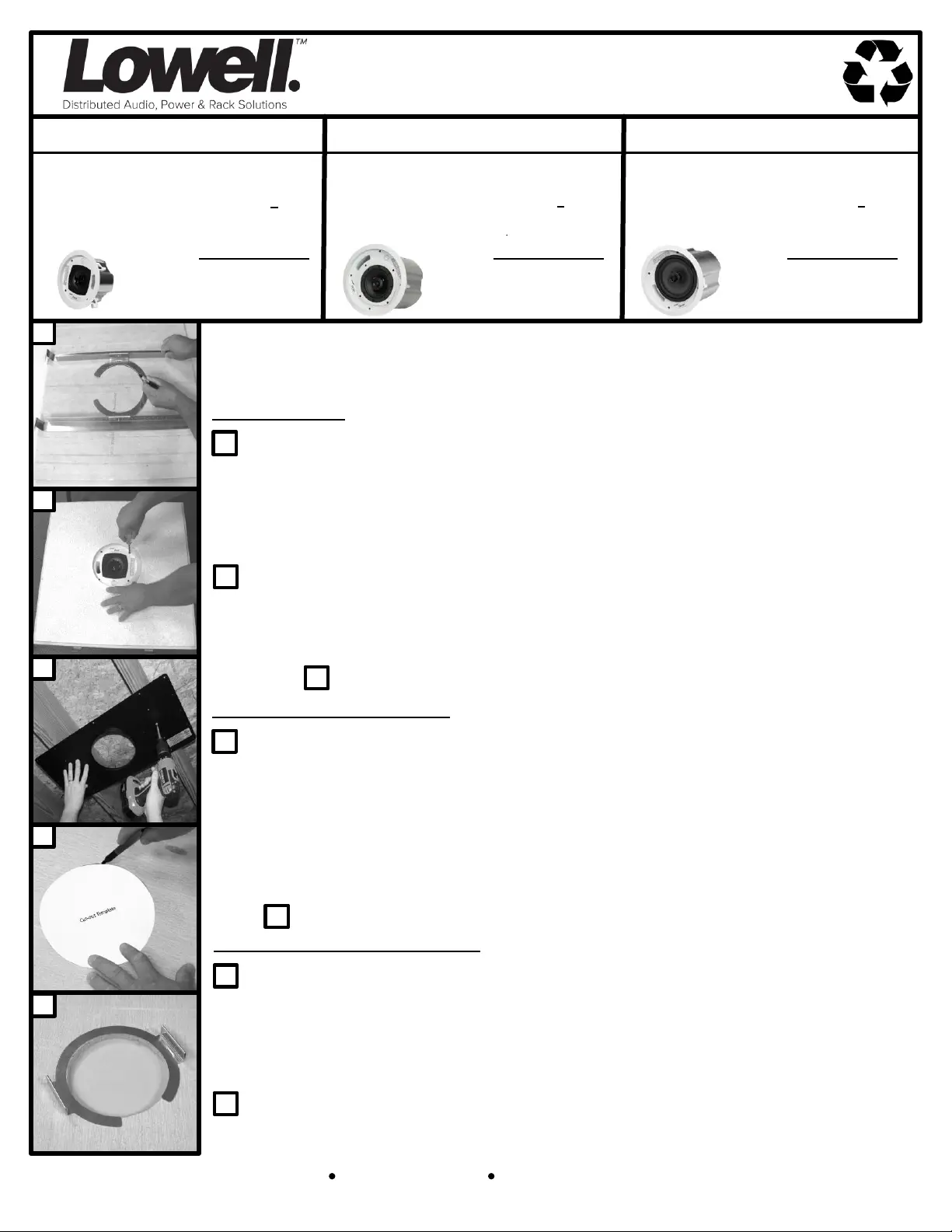

Installation Sheet for Models:

ES-4T, ES-52T, & ES-62T

Recessed Ceiling Speaker Systems

Mounting Note: The speaker system must be mounted in accordance with local, state, and federal codes

and regulations, and industry standard practices. The ES-4T speaker model and accessories are shown

in all pictures, but the pictures and instructions are also applicable to the ES-52T and ES-62T speaker

models and accessories.

Lay-in Tile Ceiling

New Drywall (Sheetrock) Ceiling

Existing Drywall (Sheetrock) Ceiling

ES-4T SPECIFICATIONS

Frequency Response: 64Hz – 20kHz + 6dB

Sensitivity: 85.7dB SPL (8W, 1W@1M) Sensitivity: 88.6 dB SPL (8W, 1W@1M)

Dispersion: 175

conical (-6dB @ 2kHz Oct.) Dispersion: 120

conical (-6dB @ 2kHz Oct.)

Driver Type: 4" Dual Cone (with whizzer HF)

Driver Type: 6-1/2" Coaxial (with tweeter HF)

Power Rating: 25 watts (EIA Standard 426B) Power Rating: 50 watts (EIA Standard 426B)

Frequency Response: 108Hz – 20kHz + 6dB

Shown from above the drywall ceiling.

Instruction Sheet:

IS-ES456-Sales Page 1 of 2

Printed on 8-9-23

Lowell Manufacturing Company

100 Integram Drive

Pacific, Missouri 63069 U.S.A.

Phone: 800-325-9660

Fax: 636-257-6606 (www.lowellmfg.com)

Use a saw to cut the hole. For a drywall ceiling, the support rails provided need not be used, but

it is recommended that the “C ring” be used to support the cut-out edge of the drywall. The gap in the

C-ring allows the ring to be maneuvered into position as shown.

When installing the ES-4T, ES-52T, or ES-62T in an existing drywall ceiling, it is important before

cutting the hole, to confirm that there are no obstructions above the drywall ceiling that would prevent

the speaker from being installed at your chosen location. See the technical paper at

https://www.lowellmfg.com/wp-content/uploads/Checking_above_the_ceiling_before_you_cut.pdf.

Once the location has been chosen and it has been determined that no obstructions exist, use the

cardboard template provided to trace the cut-out circle on the ceiling.

On a new construction project, it is best to install a rough-in bridge before the drywall ceiling is

installed. The ES-4-RIB rough-in bridge (sold separately for use with the ES-4T) and the ES-6-RIB

rough-in bridge (sold separately for use with the ES-52T or ES-62T) are available for this purpose.

Holes are provided on the bridge on twenty-four (24) inch centers and sixteen (16) inch centers for

mounting to the bottom of the joists, rafters, trusses, metal rails or other ceiling support structure.

Screw types required to mount the bridge vary widely depending on the construction of the ceiling

structure so mounting screws are not included and will be supplied by the installer. Mount the

bridge with the lip facing downward toward the floor. When the ceiling contractor installs the drywall,

the lip will be used as a router guide to cut the hole in the ceiling that is required to install the speaker.

Skip to for speaker wiring.

Insert the rear of speaker through the hole in the tile. Tighten the mounting ears with a Phillips

screw driver so that the ears rotate away from the speaker body and trap the tile between the speaker

and C-ring/rails assembly. Do not over-tighten the mounting ear screws or the plastic ears can

break. The mounting ears can span a ceiling thickness of 0.1" (2.54mm) to 1.4" (35.56mm).

Most contractors prefer to wire the speaker before placing the tile/speaker assembly on the ceiling tile

grid. Skip to for speaker wiring.

Remove the 2' X 2' or 2' X 4' ceiling tile. Place the tile face down on a soft surface (to avoid

damaging the surface of the ceiling tile). Assemble the C-ring and rails assembly by using 1 screw to

attach each rail to the C-ring in the desired location. Place the assembly on the rear of the tile so that

it spans the 2' width of the tile. Trace the inside edge of the C-ring as shown. The C-ring/rail assembly

can be rotated 180 degrees to complete tracing the circle where the ring has a gap. Use a hole saw to

cut out the hole in the ceiling tile.

ES-52T SPECIFICATIONS ES-62T SPECIFICATIONS

Sensitivity: 88.0dB SPL (8W, 1W@1M)

Dispersion: 165

conical (-6dB @ 2kHz Oct.)

Driver Type: 5-1/4" Coaxial (with tweeter HF)

Power Rating: 30 watts (EIA Standard 426B)

Frequency Response: 70Hz – 20kHz + 6 dB

Transformer Taps:

100V (16W, 8W, 4W, 2W)

70V (16W, 8W, 4W, 2W, 1W)

25V (2W, 1W, .5W, .25W, .13W)

Transformer Taps:

100V (16W, 8W, 4W, 2W)

70V (16W, 8W, 4W, 2W, 1W)

25V (2W, 1W, .5W, .25W, .13W)

Transformer Taps:

100V (32W, 16W, 8W, 4.2W)

70V (32W, 16W, 8W, 4W, 2W)

25V (4.4W, 2.2W, 1.1W, .55W, .28W)
