Seite 1/8
Fo ld Fo ld Fo ld
READ ME FIRST
QUICK INSTALL GUIDE
26-Port Gigabit Stackable PoE+
L2/L3 Managed Switch
AMS-4424P
Includes:
26-Port/24-port PoE+ Switch
Rack Mount Kit
Rubber Feet
Power Cord
INSTALLATION AND SETUP
1
Physical Installation
The AMS-4424P can easily be installed in a standard 19” rack. Two mounting ears
are included for installing and stabilizing the switch. When attaching the mounting
ears and installing the switch in a rack, please refer to the following illustration:

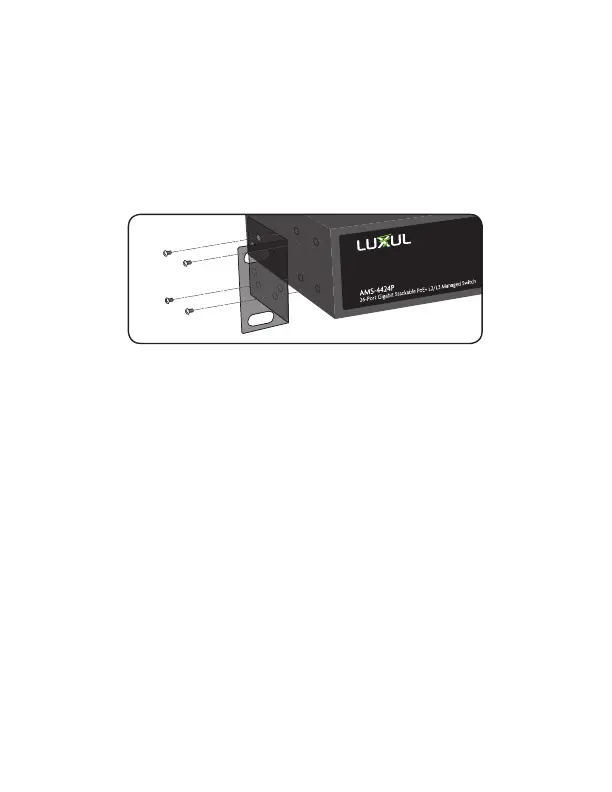

Rack-Mounting the AMS-4424P
Use the included screws to attach the mounting ears to each side
of the switch.
Mount the switch in the rack with the LEDs facing outwards. Be sure the
switch is level and properly secured in the rack.
Desktop Setup
For use as a desktop device, position and apply the included rubber feet to the
bottom of the AMS-4424P.
2
Connecting Ethernet and Power
Ethernet and Power Connections
Use one of the 26 Ethernet ports to connect the AMS-4424P to any Ethernet-
enabled device, including servers, routers or other switches.
No crossover cable is necessary.
The AMS-4424P supports 10/100/1000 Mbps Ethernet; 10/100 Mbps half/
full-duplex mode and 1000 Mbps full-duplex mode. Ports 1-24 are PoE+ and
are enabled by default. Ports 25 and 26 are Gigabit Ethernet only (non PoE).
Use the included power cable to connect the AMS-4424P to a surge-
protected outlet. The AC input socket is on the rear panel. The built-in
power supply supports 100~240VAC at 50/60Hz.
Network Cabling
Luxul recommends at least Cat-5e unshielded twisted pair (CAT5e UTP)
cabling. To ensure best performance and stable data transmission at 1000
Mbps, use Category-6 unshielded twisted pair (CAT6 UTP).
c CAUTION: Multiple Uplink channels can create loops, resulting in
network failure. Ensure only one Uplink channel exists
between switches or between the AMS-4424P and a router.
n NOTE: When powering up, the port LEDs may take a moment to
initialize. This is normal as the AMS-4424P initialization and
startup sequence completes.
n NOTE: The AMS-4424P has an internal 250W power supply. Do not
exceed 25.5W each or 250W combined consumption of all
external PoE devices.
Sales
P: 801-822-5450
E: sales@luxul.com
Technical Support
P: 801-822-5450 Option 3
E: support@luxul.com
LUX-QIG-AMS-4424P-v5 06271711
Copyright and Trademark Notices
No part of this document may be modified or adapted in any way, for any purposes without permission
in writing from Luxul. The material in this document is subject to change without notice. Luxul reserves
the right to make changes to any product to improve reliability, function, or design. No license is granted,
either expressly or by implication or otherwise under any Luxul intellectual property rights. An implied
license only exists for equipment, circuits and subsystems contained in this or any Luxul product.
© Copyright 2017 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and
Simply Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other
trademarks and registered trademarks are property of their respective holders.
Fo ld Fo ld Fo ld
READ ME FIRST
QUICK INSTALL GUIDE
26-Port Gigabit Stackable PoE+
L2/L3 Managed Switch
AMS-4424P
Includes:
26-Port/24-port PoE+ Switch
Rack Mount Kit
Rubber Feet
Power Cord
INSTALLATION AND SETUP
1
Physical Installation
The AMS-4424P can easily be installed in a standard 19” rack. Two mounting ears
are included for installing and stabilizing the switch. When attaching the mounting
ears and installing the switch in a rack, please refer to the following illustration:
Rack-Mounting the AMS-4424P
Use the included screws to attach the mounting ears to each side
of the switch.
Mount the switch in the rack with the LEDs facing outwards. Be sure the
switch is level and properly secured in the rack.
Desktop Setup
For use as a desktop device, position and apply the included rubber feet to the
bottom of the AMS-4424P.
2
Connecting Ethernet and Power
Ethernet and Power Connections
Use one of the 26 Ethernet ports to connect the AMS-4424P to any Ethernet-
enabled device, including servers, routers or other switches.
No crossover cable is necessary.
The AMS-4424P supports 10/100/1000 Mbps Ethernet; 10/100 Mbps half/
full-duplex mode and 1000 Mbps full-duplex mode. Ports 1-24 are PoE+ and
are enabled by default. Ports 25 and 26 are Gigabit Ethernet only (non PoE).
Use the included power cable to connect the AMS-4424P to a surge-
protected outlet. The AC input socket is on the rear panel. The built-in
power supply supports 100~240VAC at 50/60Hz.
Network Cabling
Luxul recommends at least Cat-5e unshielded twisted pair (CAT5e UTP)
cabling. To ensure best performance and stable data transmission at 1000
Mbps, use Category-6 unshielded twisted pair (CAT6 UTP).
c CAUTION: Multiple Uplink channels can create loops, resulting in
network failure. Ensure only one Uplink channel exists
between switches or between the AMS-4424P and a router.
n NOTE: When powering up, the port LEDs may take a moment to
initialize. This is normal as the AMS-4424P initialization and
startup sequence completes.
n NOTE: The AMS-4424P has an internal 250W power supply. Do not
exceed 25.5W each or 250W combined consumption of all
external PoE devices.
Sales
P: 801-822-5450
E: sales@luxul.com
Technical Support
P: 801-822-5450 Option 3
E: support@luxul.com
LUX-QIG-AMS-4424P-v5 06271711
Copyright and Trademark Notices
No part of this document may be modified or adapted in any way, for any purposes without permission
in writing from Luxul. The material in this document is subject to change without notice. Luxul reserves
the right to make changes to any product to improve reliability, function, or design. No license is granted,
either expressly or by implication or otherwise under any Luxul intellectual property rights. An implied
license only exists for equipment, circuits and subsystems contained in this or any Luxul product.
© Copyright 2017 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and
Simply Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other
trademarks and registered trademarks are property of their respective holders.
