READ ME FIRST
QUICK INSTALL GUIDE

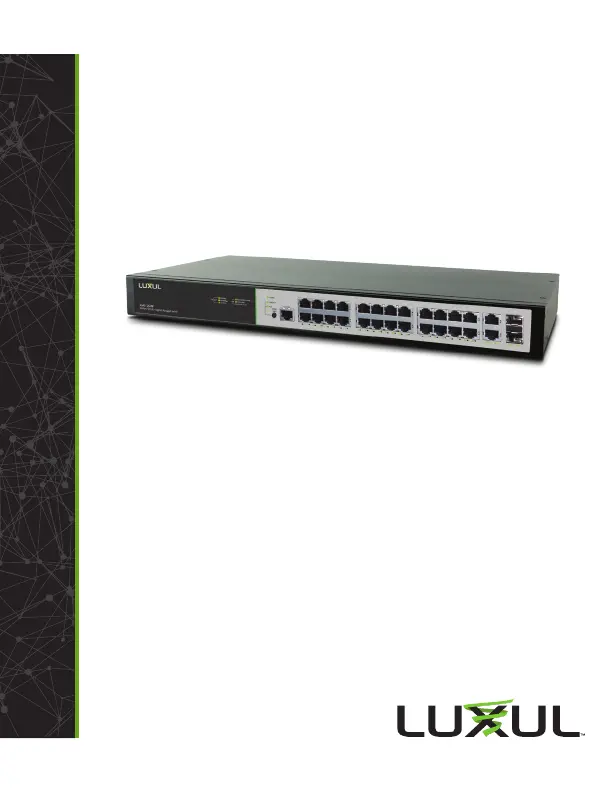

26-Port/24 PoE+
Gigabit Managed Switch
XMS-2624P
Includes:
26-Port PoE+ Switch
Rack Mount Kit
Rubber Feet
Power Cord
Console Cable
INSTALLATION AND SETUP
1
Physical Installation
The XMS-2624P can easily be installed in a standard 19” rack. Two mounting ears
are included for installing and stabilizing the switch. When attaching the mounting

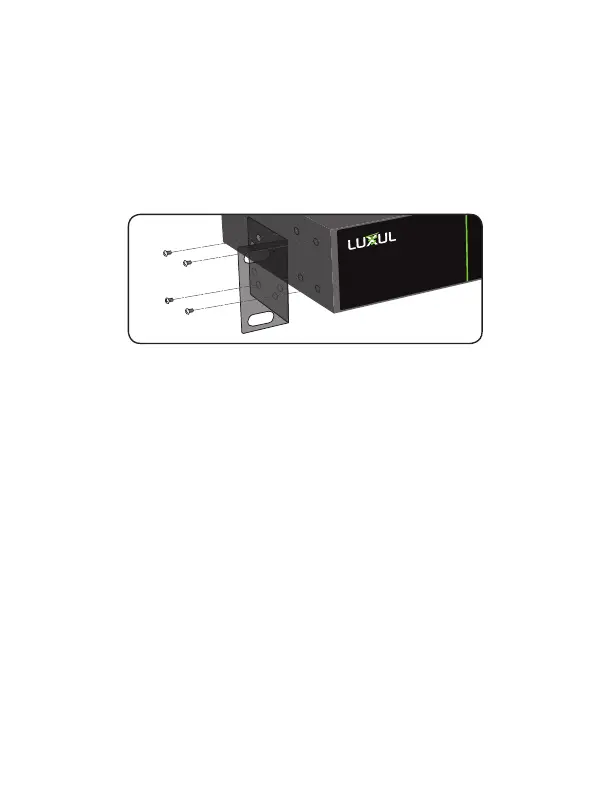

ears and installing the switch in a rack, please refer to the following illustration:
Rack-Mounting the XMS-2624P
Using the included screws to attach the mounting ears to each side
of the switch.
Mount the switch in the rack with the LEDs facing outwards. Be sure the
switch is level and properly secured in the rack.
Desktop Setup
For use as a desktop device, position and apply the included rubber feet to the
bottom of the XMS-2624P.
2
Connecting Ethernet and Power
Ethernet and Power Connections
Use any one of the 26 Ethernet ports to connect the XMS-2624P to any
Ethernet-enabled device, including servers, routers or other switches.
No crossover cable is necessary.
The XMS-2624P supports 10/100/1000 Mbps Ethernet; 10/100 Mbps half/
full-duplex mode and 1000 Mbps full-duplex mode. Ports 1-24 are PoE+ and
are enabled by default. Ports 25 and 26 are Gigabit Ethernet only (non PoE).
Use the included power cable to connect the XMS-2624P to a surge-
protected outlet. The AC input socket is on the rear panel. The built-in
power supply supports 100~240VAC at 50/60Hz.
Network Cabling
Luxul recommends at least Cat-5e unshielded twisted pair (CAT5e UTP)
cabling. To ensure best performance and stable data transmission at 1000
Mbps, use Category-6 unshielded twisted pair (CAT6 UTP).
c CAUTION: Multiple Uplink channels can create loops, resulting in
network failure. Ensure only one Uplink channel exists
between switches or between the XMS-2624P and a router.
n NOTE: When powering up, the port LEDs may take a moment to
initialize. This is normal as the XMS-2624P initialization and
startup sequence completes.
n NOTE: The XMS-2624P has an internal 370W power supply. Do not
exceed 25.5W each or 370W combined consumption of all
external PoE devices.
Sales
801-822-5450
sales@luxul.com
Technical Support
801-822-5450
support@luxul.com
LUX-QIG-XMS-2624P-v8 02131809
