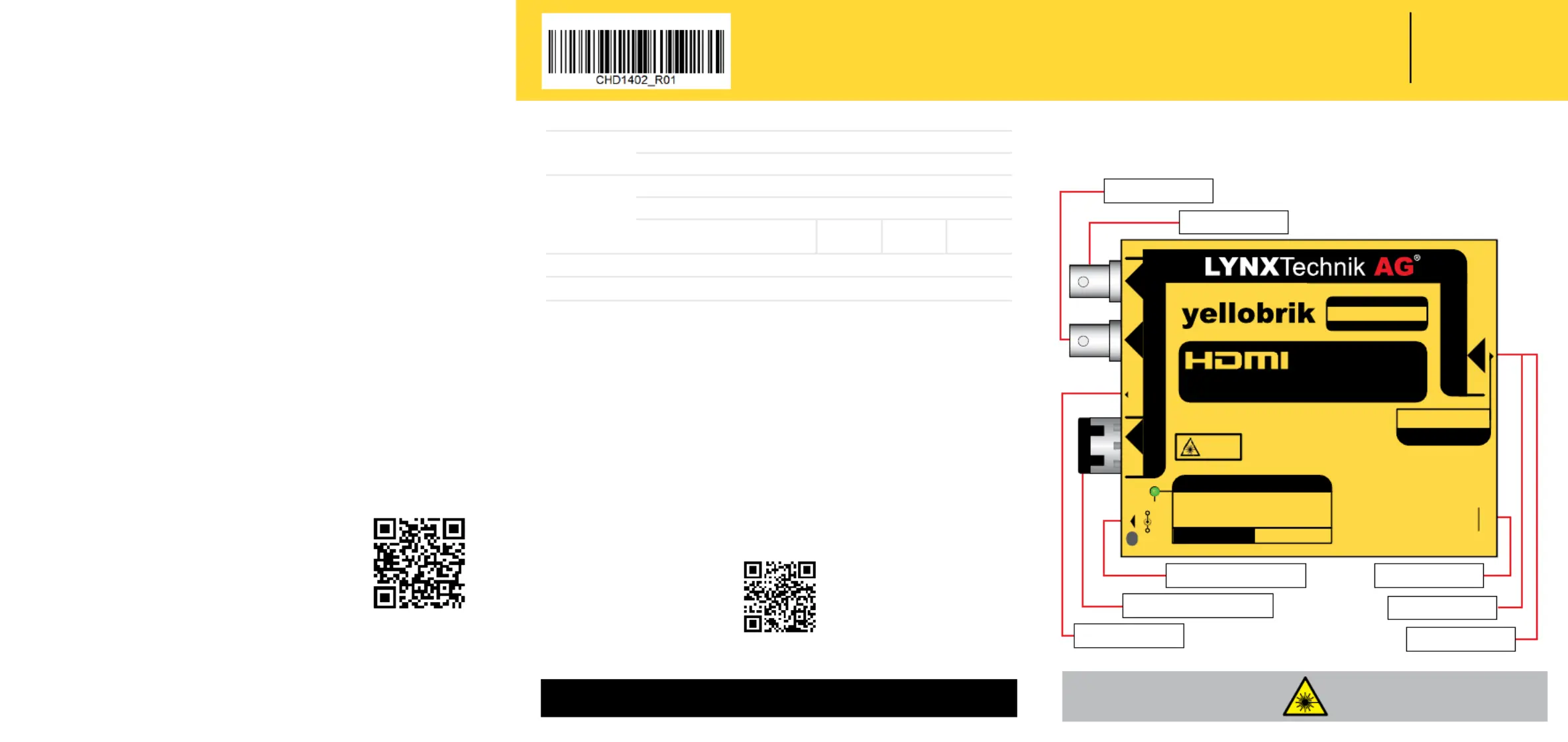

CHD 1402

4K HDMI to 12G SDI Converter

Laser Radiation

Do not look directly into emitter

with optical instruments

WARNING

CLASS 1M LASER PRODUCT

SDI Output 1

Modul Reset

USB

SDI Fiber Output

SDI Output 2

HDMI

HDMI LED

12V Power Input

USB

PC Control

Reset

HDMI

®

CHD 1402

0V12V

⎓

+–

WARNING

CLASS 1

Laodser Pruct

GREEN Por ok + No programm settingsweed

YE LLOWPower + progrmed seisokamttng

YELLOW

(Blinking)“Locate“function active

OFF

No Power Connected

GREEN HDMI Input Present

OFFNo HDMI Input

Factory Reset:

Press reset button on side

to reset module

321

to 12G SDI

®

Conveerrt

SDI Outputs

LED

Power + Ses LEDtting

HDMI LED

Power +

Presog.Stting

FAQ

HDMI connected, but no SDI output?

When two HDMI devices are connected together, the EDID communication

protocol automatically determines the highest resolution both devices

support and congures the HDMI link to that resolution. CHD 1402 supports

video formats up to 2160p60. If the HDMI Input is 2160p60, the SDI Output per

default will be 12G SDI.

If 3G, 1.5G or 270M SDI output is needed, the HDMI source device should

be manually set to output the desired video resolution.

The CHD 1402 hasno internal scaler, but it is possible to use force the desired

video format with LynxCentraal or yelloGUI. This is done by forcing the formats

reported over EDID.As a result the recognized HDMI resolution is changed and

theoutput is either cropped or boxed. For examples where HDMI formats

result in either cropping, boxing, or any combination of both, please refer to

the datasheet.

HDMI LED o, but connected?

The HDMI content may have HDCP copy protection, in which case the HDMI

present LED will be OFF and the module will block the conversion and provide

a black SDI output.

Note:Consumer devices usually include HDCP copy protection even if the source media is not copy

protected. Please verify the operation of the yellobrik module on a HDMI source which is known not to

have HDCP copy protection (e.g. most HDMI cameras) before contacting technical support.

Compatible Formats?

Any HDMI input can have a wide range of formats. These

vary not only in resolution, but also aspect ratio. We

compiled a list of expected, compatible formats. It can be

found on the product page.

Note:We continuously work on improving our products, this list might

expand in the future.

lynx-technik.com/p/chd_1402

Technical Specications

HDMI Input

Type A 2.0b connector for up to 2160p60

Up to 8 channels embedded audio in HDMI is passed transparently

SDI Outputs

2 x SDI video, 75 Ohm BNC (both have the same signal - NOT dual link)

SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 2081-1, SMPTE 2082-1

Electrical Return Loss: to 1.5GHz

>15dB

to 3GHz

>10dB

to 6GHz

>7dB

to 12GHz

>4dB

Fiber Output

Optional plug in SFP for optical SDI output (see ber options table)

Power

+12V DC @ 9.3W nominal - ( supports 10 - 24V DC input range )

We are constantly adding more yellobrik modules.

Visit our website for the latest product updates.

yellobrik.lynx-technik.com
