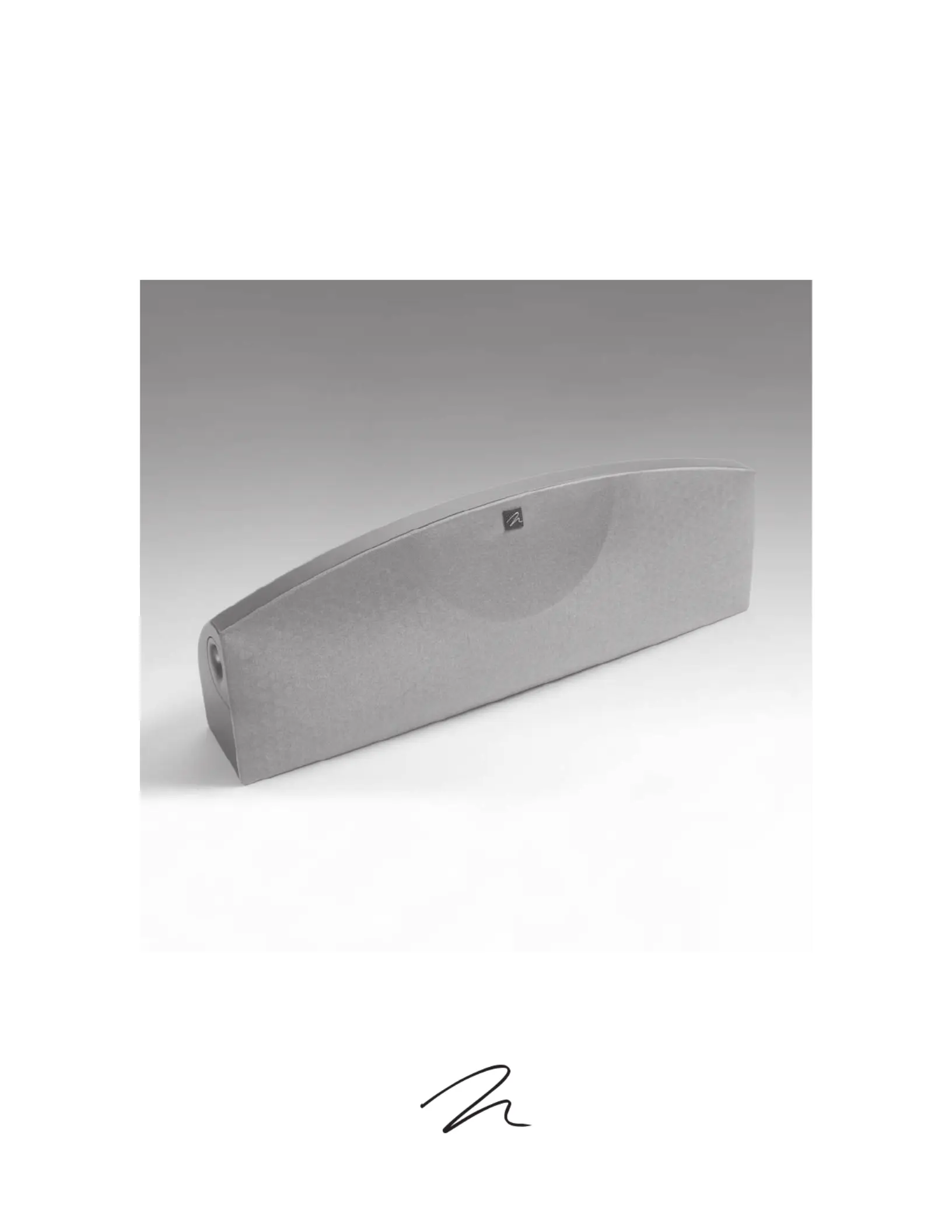

VI G N E T T E
™
u s e r ’ s m a n u a l
M LA R T I N O G A N
the loudspeaker technology company
®
2 Contents & Introduction
C IONTENTS AND NTRODUCTION
Contents and Introduction . . . . . . . . . . . . . . . . . . .2
Contents
Introduction
Installation in Brief . . . . . . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Signal Connection
On Wall/Off Wall Switch
Break-In
Mounting the Vignette On A Wall or Ceiling . . . . .5
Which Way Should It Rotate?
Preparing For Vertical Installation . . . . . . . . . . . . . . . 6
Preparing For Horizontal Installation
Changing the Direction of Rotation. . . . . . . . . . . . . . 7
Installing the Bracket Assembly . . . . . . . . . . . . . . . . . 8
Installing the Vignette. . . . . . . . . . . . . . . . . . . . . . . . 9
Home Theater . . . . . . . . . . . . . . . . . . . . . . . . . . .13
ATF (Advanced Thin Film) . . . . . . . . . . . . . . . . . .14
Frequently Asked Questions and Troubleshooting 16
General Information . . . . . . . . . . . . . . . . . . . . . .17
Specifications
Warranty and Registration
Service
Glossary of Audio Terms . . . . . . . . . . . . . . . . . . .18
Congratulations! You have invested in a new world
of home cinema!
The MartinLogan Vignette represents the culmination of
an intensive, dedicated group research program directed
toward establishing a world class reference monitor utilizing
leading-edge technology, without compromising durability,
reliability, craftsmanship or aesthetic design.
The materials in your new Vignette speaker are of the high
-
est
quality and will provide years of enduring enjoyment
and
deepening respect. The cabinetry is constructed from
the highest quality HIPP (high-impact polypropylene) to cre-
ate an acoustically inert, high-density enclosure.
This User’s Manual will explain in detail the operation of
your Vignette speaker and the philosophy applied to their
design. A clear understanding of your speaker will insure
that you obtain maximum performance and pleasure from
this most exacting transducer. It has been designed and con
-
structed to give you years of trouble-free listening enjoyment.
Contents Introduction
Installation in Brief 3
INSTALLATION IN RIEF B
We know you are eager to hear your new Vignette loud-
speaker, so this section is provided to allow fast and easy
set up. Once you have it operational, please take the time to
read, in depth, the rest of the information in this manual.
It will give you perspective on how to attain the greatest
possible performance from this most exacting transducer.
If you should experience any difficulties in the setup or
operation of your Vignette speaker, please refer to the
Operation or Mounting sections of this manual.
Should you encounter a persistent problem that cannot be
resolved, please contact your authorized MartinLogan dealer.
They will provide you with the appropriate technical analy
-
sis to alleviate the situation.
WARNING!
• Refer servicing to a qualified technician.
• To prevent fire or shock hazard, do not
expose this module to moisture.
• Turn amplifier off should any abnormal
conditions occur.
• Do not drive speaker beyond its rated power.
Step 1: Unpacking
Remove your new Vignette speaker from the packing.
Step 2: Placement
Place the Vignette near the desired location. Please see
the ‘Mounting the Vignette On a Wall or Ceiling’ section
(page 5–12) for more placement details.
Step 3: Signal Connection
Use the best speaker cables you can. Higher quality cables,
available from your specialty dealer, are recommended
and will give you superior performance. Spade connectors
are suggested for optimum contact and ease of installation.
Attach your speaker cables to the signal input section on
the rear panel. Be consistent when connecting speaker leads
to the terminals on the back of the Vignette. Take great
care to assign the same color to the (+) terminal on both
the speaker and the amplifier. Please see the ‘Operation’
section (page 4) for more details.
Step 4: Listen and Enjoy
Now, you may turn on your system and enjoy!
The lightning bolt flash with arrowhead symbol within
an equilateral triangle is intended to alert the user to
the presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient mag-
nitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
