Installation Instructions
ANT4
UK contact:
Helpline: +44 (0)1553 811000
Email: support@maxview.co.uk
Web: www.maxview.co.uk
Maxview reserve the right to change specifications without prior notice
9111452 Iss 1
5G/4G 4X4 MIMO Antenna
Maxview Address:
Maxview Ltd, Garage Lane, Setchey, King’s Lynn, Norfolk. PE33 0AT. UK
Contents

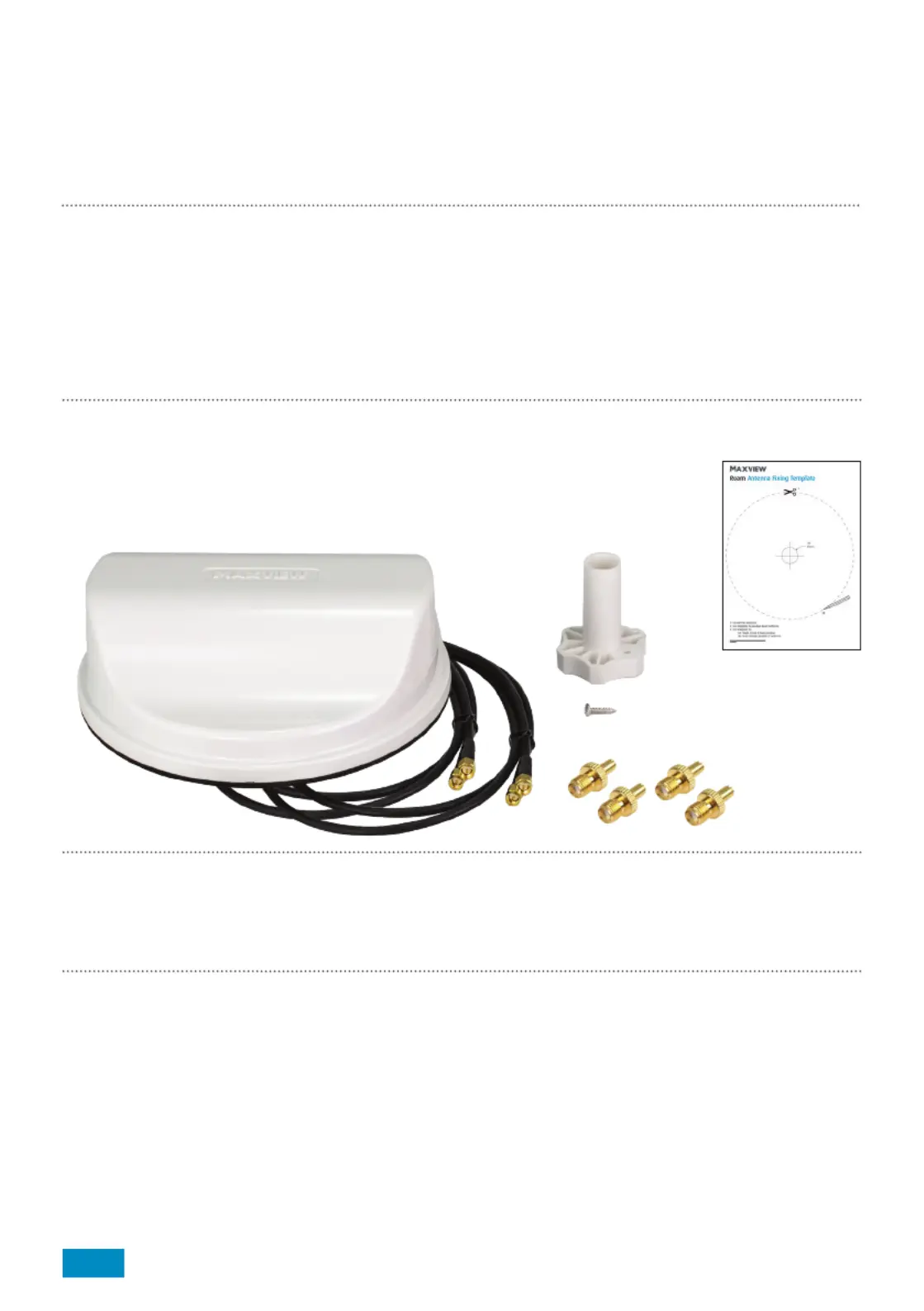

Product Contents
A. Omni-directional Roof Mount Antenna
and 0.8m cables with SMA connectors
B. Roof Clamp
Installation Instructions
4. Positioning your Antenna
4. Important Antenna Installation Information
5. Fitting the Antenna
Additional Information
7. General Safety Warnings
7. Terms and Conditions
7. Maintenance
8. 2 Year Guarantee
8. Certification and Environment
Introduction
Thank you for purchasing this product, should you have any difficulty using your
Antenna please contact our friendly Customer Helpline on +44 (0)1553 811000 or
email support@maxview.co.uk.
Tools required
- Power Drill
- 2.5mm Drill Bit
D
- Hack Saw
- File/Emery Paper
- Surface Cleaner- 25mm Hole Saw
- Cross Head Screwdriver
C. No. 6 Screws (spares included)
D. Fixing Template
E. SMA to TS9 Adaptor X 4
A
B
C
2
Antenna
Type: Omni-directional 4x4 MIMO (multiple in multiple out)
Frequency/Gain: 698-6000 MHz/5.9dBi-8.8dBi. Includes all 3G, 4G and 5G frequencies
Connector Type: 4 x SMA
Impedance: 50 Ohm
Power: Passive
Cable Lengths: 0.8m as standard
Housing: Aluminium Base. UV Stable ASA Cover
Dimensions: ø: 196mm x H: 65mm
Weight: 550g
Specifications
E

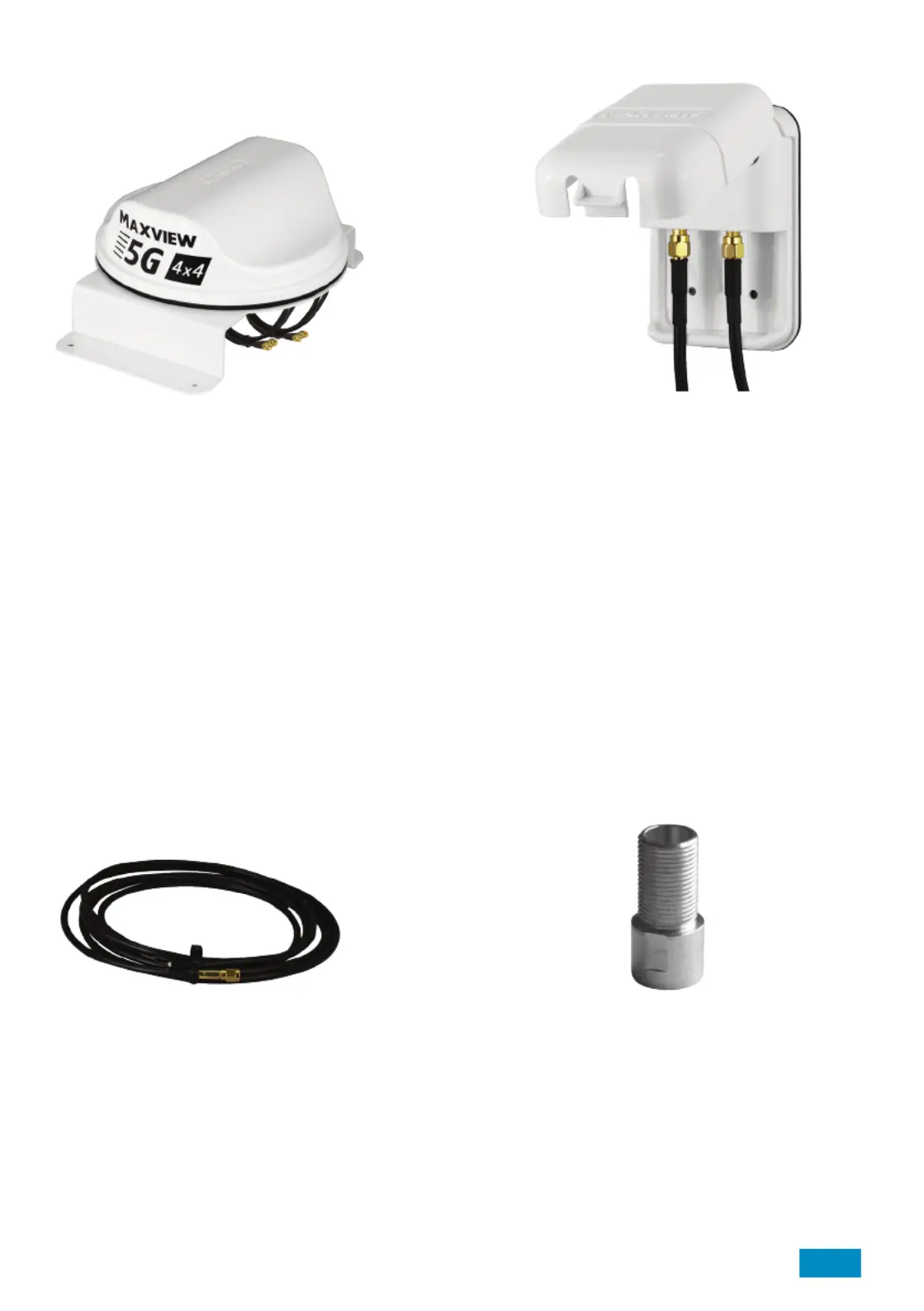

Bracket Fixing Kit - For roof mounting
The raiser bracket allows you the flexibility to
mount your antenna anywhere on your roof and
enter the cable at your preferred point using the
supplied cable entry cover. Alternatively you may
have an existing cable entry point you may like to
utilise instead.
Designed and manufactured specifically for the
Antenna, the aluminium bracket is lightweight,
strong and finished with a durable white powder
coating.
Suitable for any flat roof the kit also includes 3m
extension cables for flexible mounting position.
MXL060/KIT White
MXL060/GKIT Grey
Roam Extension Cables*
Extension cables can be purchased separately to
allow a flexible mounting position to the router.
*For use with this 4x4 antenna you will need to
order 2 packs.
1 metre MXL050/EXT1
2 metres MXL050/EXT2
Accessories - Sold separately
Weatherproof Socket with SMA Connectors*
The Weatherproof Socket provides an external entry
point into the side of any vehicle. Available with 2
SMA connections, making it ideal when using the
Roam Antenna with the Roam Bracket Fixing Kit
(See left) to allow for a temporary connection or
where entry into the roof is not possible.
It can also be used for other applications where an
external SMA connection is required.
*For use with this 4x4 antenna you will need to
order 2 weatherproof sockets.
B2016
3 metres MXL050/EXT3
5 metres MXL050/EXT5
Thread Extender
Can be used to fit all Roam Antennas to thicker
vehicle roofs. For example American RV’s,
Winterised Motorhomes and Over Landing vehicles.
Thread Extender is ideal for roofs 50 – 90mm thick.
MXL050/TE
