Seite 1/5
Accessory for EGIL, EGIL200, TM1700 and
TM1800
Enables resistance measurement on circuit
breakers
Small and light weight
Time saving quick connectors for current cables
Hook up close to the test object to maximise test
current and minimise cable weight
Flexible current cables even at low temperatures
Up to 200 A initial test current per channel
DESCRIPTION

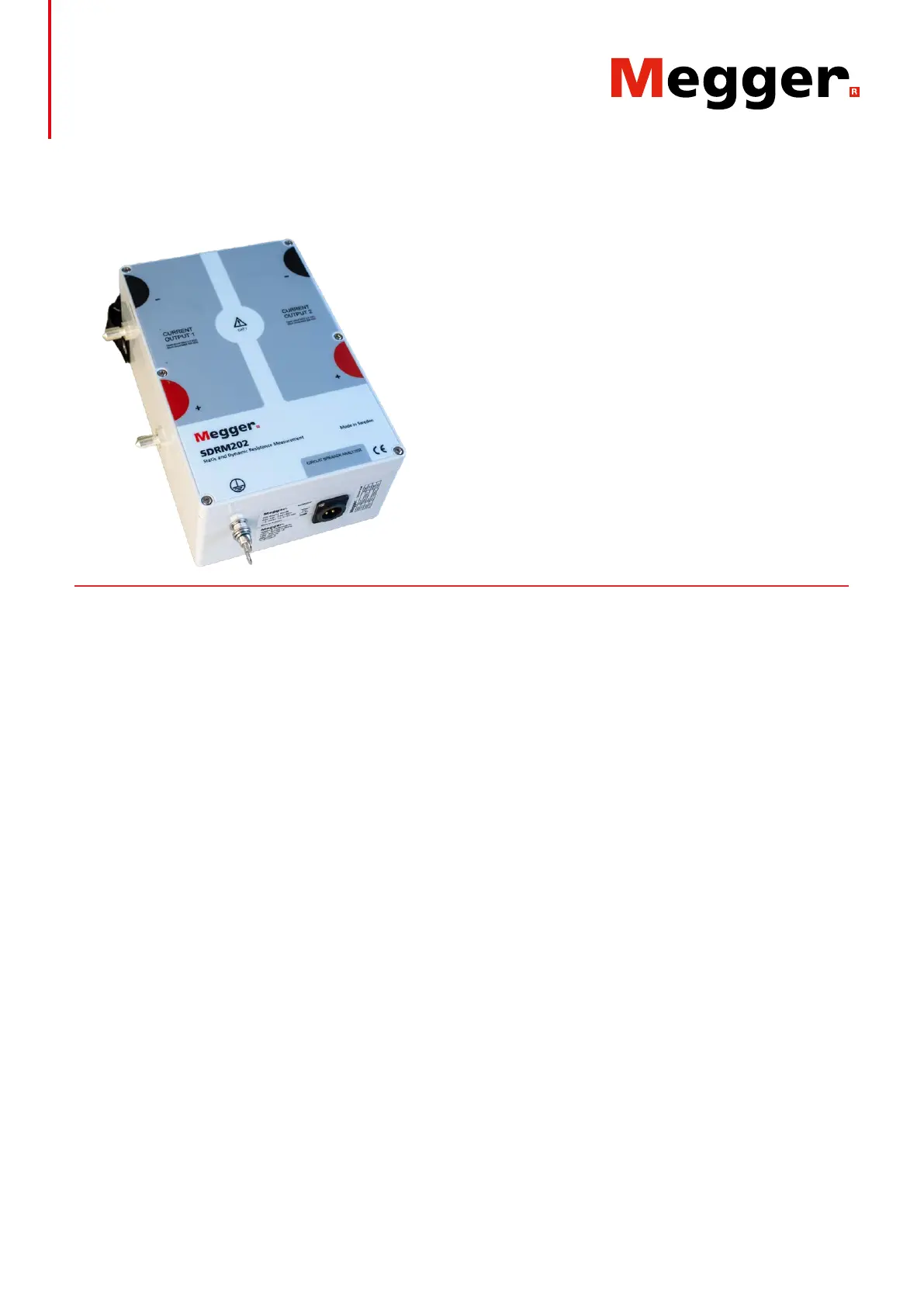

The SDRM202 is an accessory for the circuit breaker analysers
TM1800, TM1700, EGIL200 and EGIL.
The EGIL must be equipped with the SDRM option, and
the required PC software CABA Win need to have version
R03A or higher
EGIL200 must have the SDRM or Plus software license to
be able to run SRM and DRM
EGIL213 manages simultaneous three-phasemeasurement
on one break per phase or phase wise measurement on
up to three breaks per phase
EGIL211, EGIL223 and EGIL243 manages measurement on
one break at a time
The SDRM202 is intended to use for both static and dynamic
resistance measurements (SRM and DRM) on high voltage circuit
breakers or other low resistive devices. Used together with TM1800,
TM1700, EGIL200 or EGIL the current through, and the voltage drop
across the circuit breaker contacts, are measured. The measuring unit
can thus calculate the resistance as a function of time.
A system consists of an SDRM202 unit with current cables and an
SDRM cable which comes in two versions, for TM1800/TM1700/
EGIL200 and EGIL respectively. The SDRM Cable is a small box with
integrated cables for connection to the SDRM202 and to TM1800,
TM1700, EGIL200 or EGIL.
The SDRM202 has two current sources which allows simultaneous
resistance measurement on two breaks provided that the connected
breaker analyser has the number of channels required.
SDRM202
Static and dynamic resistance measurement
SDRM202
Static and dynamic resistance measurement
2

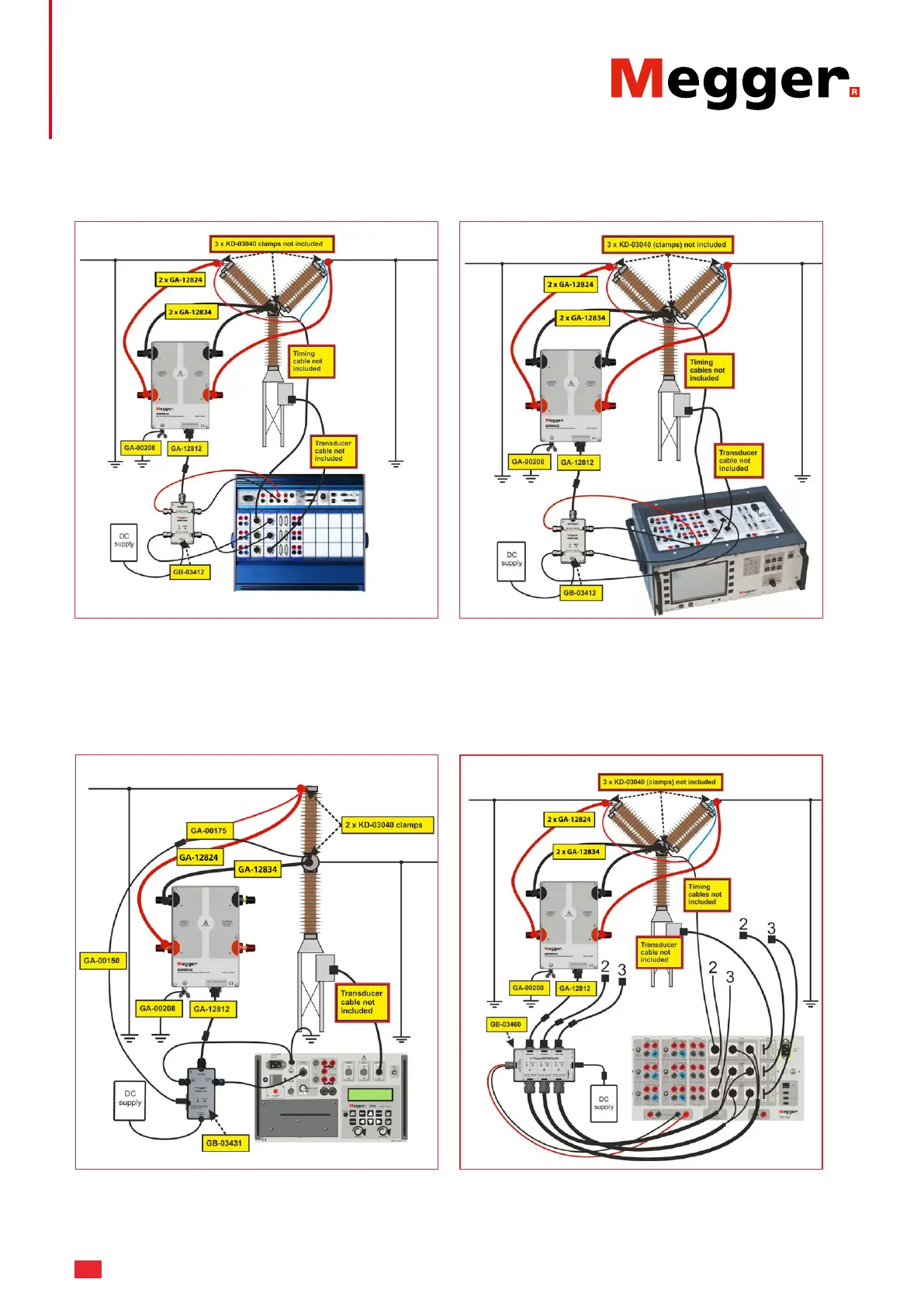

HOOK-UP EXAMPLES AND CABLE DESIGNATIONS
Timing cable is included with the TM1800 timing module.
Transducer cable is selected together with the the type of
transducer used.
Timing cable is included with the TM1700.
Transducer cable is selected together with the the type of
transducer used.
Transducer cable is selected together with the the type of
transducer used.
The picture shows how a 3-phase SDRM cable is connected to
one of the phases. Numbers “2” and “3” are correspondingly
connected to phases 2 and 3.
