LED Explanation

Note: For simplicity, we will take MS108GP for example. Your product may dier from the depicted.

Switch Explanation

O: Ports run at 1000/100/10 Mbps (100/10 Mbps for MS110P, MS110CP and

MS110CMP) and support PoE power supply up to 100m away.

On: Ports run at 10 Mbps and support PoE power supply up to 250m away.

Extend

O: The PoE Auto Recovery function is disabled.

On: The switch will constantly detect the working status of a PoE powered device (PD).

When the switch nds that the PD works abnormally, the switch will reboot it.

Recovery

O: Ports can transmit data with each other.

On: The isolated ports cannot transmit data with other downlink ports. They can transmit

data only with the uplink ports (port 5 of MS105GP/port 8 of MS108GP/ports 9-10 of

MS110P, MS110CP and MS110CMP).

Isolation

PoE Switch

Quick Installation Guide

DC APer owdapter

AC Power Cord

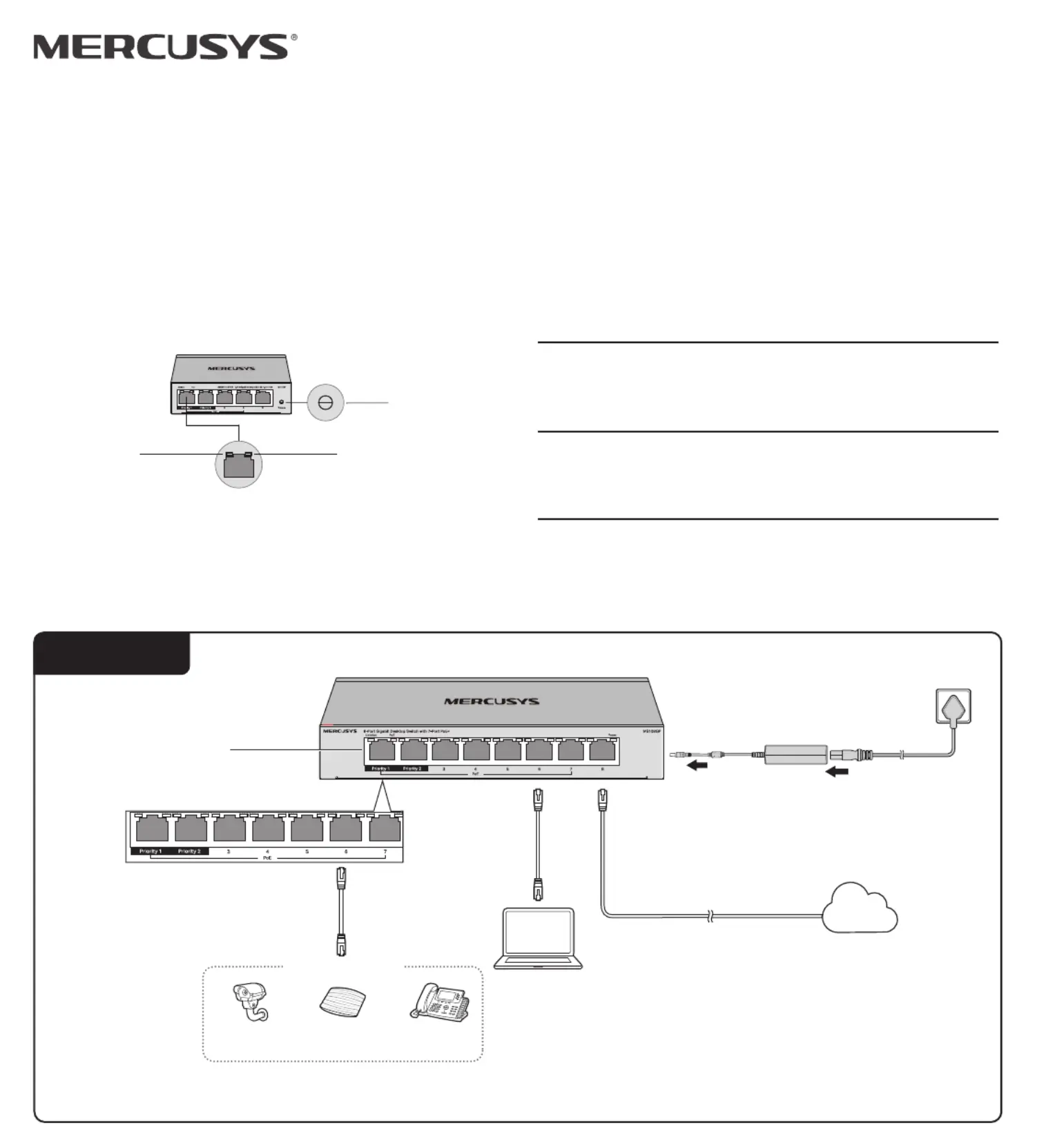

Connection

PC

Ethernet Ports (1-8)

PoE Ports (1-7)

1. PoE ports can also connect to non-PoE devices, but only transmit data.

2. Non-PoE ports (port 5 of MS105GP/port 8 of MS108GP/ports 9-10 of MS110P,

MS110CP and MS110CMP) are recommended to connect to uplink devices like

gateways.

3. Ports 1-2 have higher priority than other ports in transmitting data if network

congestion occurs. It is recommended to connect key network devices (network

cameras, APs, etc.) to ports 1-2 (not for MS110CP or MS110CMP).

Notes:

Internet

IP CameraAPIP Phone

Powered Device (PD)

Power

On: The power is on

O: The power is o

Link/Act

On:

Link present but no activity

Flashing:

Transmitting or receiving data

O:

No link

PoE Status

On:

PoE power provided

O:

No PoE power provided

Note: For MS108GP, the Power LED is on the top right of port 8.
