ENGLISH

Required Tools for Installation

Phillips screwdriver

Level

Scale

Utility knife or scissors

3 in. (75 mm) hole saw

Torque wrench

Wrench (or spanner)

5/32 in. (4 mm) hexagonal

wrench

Flare tool for R410A

Gauge manifold for R410A

Vacuum pump for R410A

Charge hose for R410A

Pipe cutter with reamer

MSZ-GS30/36NA

MSY-GS30/36NA

1-1. THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY

• Be sure to read these safety precautions and instructions.

 %HVXUHWRREVHUYHWKHZDUQLQJVDQGFDXWLRQVVSHFL¿HGKHUH

• After reading this manual, be sure to store it with the OPERATING INSTRUCTIONS for future reference.

• Please report to your supply authority or obtain their consent before connecting this equipment to the power supply system.

■ Do not install the unit by yourself (user).

 ,PSURSHURULQFRPSOHWHLQVWDOODWLRQFRXOGFDXVH¿UHHOHFWULFVKRFNLQMXU\GXHWR

WKHXQLWIDOOLQJRUZDWHUOHDNDJH&RQVXOWDTXDOL¿HGLQVWDOOHURUWKHGHDOHUIURP

whom you purchased the unit.

■ Follow the instructions detailed in the installation manual.

 ,QFRPSOHWHLQVWDOODWLRQFRXOGFDXVH¿UHRUHOHFWULFVKRFNLQMXU\GXHWRWKHXQLW

falling, or leakage of water.

■ When installing the unit, use appropriate protective equipment and tools for

safety.

Failure to do so could cause injury.

■ Install the unit securely in a place that can bear the weight of the unit.

If the installation location cannot bear the weight of the unit, the unit could fall

causing injury.

■ Do not alter the unit.

 ,WPD\FDXVH¿UHHOHFWULFVKRFNLQMXU\RUZDWHUOHDNDJH

■ Perform electrical work according to the installation manual and be sure to use

an exclusive circuit. Do not connect other electrical appliances to the circuit.

 ,IWKHFDSDFLW\RIWKHSRZHUFLUFXLWLVLQVXI¿FLHQWRUWKHUHLVLQFRPSOHWHHOHFWULFDO

ZRUNLWFRXOGUHVXOWLQD¿UHRUDQHOHFWULFVKRFN

■ Ground the unit correctly.

Do not connect the ground wire to a gas pipe, water pipe, lightning rod or tele-

phone ground. Defective grounding could cause electric shock.

■ Do not damage the wires.

 'DPDJHGZLUHVFRXOGFDXVH¿UH

■ Be sure to shut off the main power when setting up the indoor P.C. board or

wiring.

Failure to do so could cause electric shock.

■ 8VHWKHVSHFL¿HGZLUHVWRVHFXUHO\FRQQHFWWKHLQGRRUDQGRXWGRRUXQLWV$WWDFK

WKHZLUHV¿UPO\WRDYRLGDSSO\LQJVWUHVVWRWKHWHUPLQDOEORFN

 ,PSURSHUFRQQHFWLRQFRXOGFDXVH¿UH

■ 'RQRWLQVWDOOWKHXQLWLQDSODFHZKHUHÀDPPDEOHJDVPD\OHDN

If gas leaks and accumulates around the unit, it could cause an explosion.

■ Do not use intermediate connection of the power cord or the extension cord.

Do not connect many devices to one AC outlet.

 ,WFRXOGFDXVHD¿UHRUDQHOHFWULFVKRFN

■ 8VHWKHSDUWVSURYLGHGRUVSHFL¿HGSDUWVIRUWKHLQVWDOODWLRQZRUN

 7KHXVHRIGHIHFWLYHSDUWVFRXOGFDXVHDQLQMXU\RUOHDNDJHRIZDWHUGXHWRD¿UH

an electric shock, the unit falling, etc.

■ When plugging the power supply plug into the outlet, make sure that there is

no dust, blockage, or loose parts both in the outlet and on the plug. Verify that

the power supply plug is completely in the outlet.

If there is dust, blockage, or loose parts on the power supply plug or the outlet, it could

FDXVHHOHFWULFVKRFNRU¿UH,IORRVHSDUWVDUHIRXQGRQWKHSRZHUVXSSO\SOXJUHSODFHLW

■ Securely attach the electrical cover to the indoor unit and the service panel to

the outdoor unit.

If the electrical cover of the indoor unit and/or the service panel of the outdoor unit are

QRWDWWDFKHGVHFXUHO\GXVWZDWHUHWFFRXOGFROOHFWLQWKHXQLWDQGFRXOGFDXVHD¿UHRU

an electric shock.

■ When installing, relocating, or servicing the unit, make sure that no substance

RWKHUWKDQWKHVSHFL¿HGUHIULJHUDQW5$HQWHUVWKHUHIULJHUDQWFLUFXLW

Any presence of foreign substance such as air can cause abnormal pressure rise and

PD\UHVXOWLQH[SORVLRQRULQMXU\7KHXVHRIDQ\UHIULJHUDQWRWKHUWKDQWKDWVSHFL¿HG

for the system will cause mechanical failure, system malfunction, or unit breakdown.

In the worst case, this could lead to a serious impediment to securing product safety.

■

Do not discharge the refrigerant into the atmosphere.

Check that the refrigerant gas

does not leak after installation has been completed.

If refrigerant leaks during

installation, ventilate the room.

 ,IUHIULJHUDQWFRPHVLQFRQWDFWZLWKD¿UHKDUPIXOJDVFRXOGEHJHQHUDWHG

 ,IUHIULJHUDQWJDVOHDNVLQGRRUVDQGFRPHVLQWRFRQWDFWZLWKWKHÀDPHRIDIDQ

heater, space heater, stove, etc., harmful gases will be generated.

■ Use appropriate tools and piping materials for installation.

The pressure of R410A is 1.6 times higher than R22. Not using the appropriate

tools and materials, or improper installation could cause the pipes to burst causing

an injury.

■ When pumping down the refrigerant, stop the compressor before disconnecting

the refrigerant pipes.

If the refrigerant pipes are disconnected while the compressor is running and the

stop valve is open, air could be drawn in and the pressure in the refrigeration cycle

could become abnormally high, causing the pipes to burst.

■ When installing the unit, securely connect the refrigerant pipes before starting

the compressor.

If the compressor is started before the refrigerant pipes are connected and the

stop valve is open, air could be drawn in and the pressure in the refrigeration cycle

could become abnormally high, causing the pipes to burst.

■ )DVWHQDÀDUHQXWZLWKDWRUTXHZUHQFKDVVSHFL¿HGLQWKLVPDQXDO

 ,IIDVWHQHGWRRWLJKWDÀDUHQXWFRXOGEUHDNDQGFDXVHUHIULJHUDQWOHDNDJH

■ Install the unit according to national wiring regulations.

■ When opening or closing the valve below freezing temperatures, refrigerant may

spurt out from the gap between the valve stem and the valve body, resulting in

injuries.

■ Please follow applicable federal, state, or local codes to prevent potential

leakage/electric shock. Or install a ground fault interrupt for the prevention of

leakage and electric shock.

■ Perform the drainage/piping work securely according to the installation manual.

If there is defect in the drainage/piping work, water could drip from the unit, and

damage household items.

■ 'RQRWWRXFKWKHDLULQOHWRUWKHDOXPLQXP¿QVRIWKHRXWGRRUXQLW

This could cause injury.

■ Do not install the outdoor unit where small animals may live.

If small animals enter the unit and damage its electrical parts, it could cause a

PDOIXQFWLRQVPRNHHPLVVLRQRU¿UH.HHSWKHDUHDDURXQGWKHXQLWFOHDQ

CAUTION

(Could lead to serious injury when operated incorrectly.)

WARNING

(Could lead to death or serious injury.)

1. BEFORE INSTALLATION

SPLIT-TYPE AIR CONDITIONERS

INSTALLATION MANUAL

1-3. SPECIFICATIONS

1-3-1. POWER SUPPLY AND INDOOR/OUTDOOR WIRE CONNECTION

• Power should be taken from an exclusive branched circuit.

• Wiring work should be based on applicable technical standards.

• Wiring connections should be made following the diagram.

• Securely tighten screws.

Connecting wires and the ground wire

• Use solid conductor

Min. AWG14

or stranded conductor

Min. AWG14

• Use double insulated copper wire with 600 V insulation.

• Use copper conductors only.

* Follow local electrical codes.

Power supply cable and ground wire

• Use solid or stranded conductor

Min. AWG

12.

• Use copper conductors only.

* Follow local electrical codes.

Note:

When the indoor unit is powered from the outdoor unit, depending on local code, a

disconnect switch needs to be installed to a power supply circuit.

Pipe length

Up to 25 ft. (7.5 m)

No additional charge is

required.

Exceeding 25 ft. (7.5 m)

Additional charge is required.

(Refer to the table below.)

• Refrigerant adjustment... If pipe length exceeds 25 ft. (7.5 m), additional refrigerant

(R410A) charge is required.

(The outdoor unit is charged with refrigerant for pipe length up to 25 ft. [7.5 m])

Limits

Pipe length 100 ft. (30 m) max.

Height difference 50 ft. (15 m) max.

No. of bends 10 max.

 7KHXQLWKDVÀDUHGFRQQHFWLRQVRQERWKLQGRRUDQGRXWGRRUVLGHV

• Remove the valve cover from the outdoor unit, then connect the pipe.

• Refrigerant pipes are used to connect the indoor and outdoor units.

• Be careful not to crush or over bend the pipe in pipe bending.

1-3-2. REFRIGERANT PIPES

• To prevent condensation, insulate the two refrigerant pipes.

• Refrigerant pipe bending radius must be 4 in. (100 mm) or more.

CAUTION

%HVXUHWRXVHWKHLQVXODWLRQRIVSHFL¿HGWKLFNQHVVWDEOHRQWKHULJKW([FHVVLYHLQVXOD

tion may cause incorrect installation of the indoor unit, and too little insulation may cause

condensate to form.

Pipe

Outside

diameter

Minimum

wall thick-

ness

Insulation

thickness

Insulation material

inch (mm)

For liquid 1/4 (6.35) 0.0315 (0.8) 5/16 (8) Heat resistant foam

SODVWLF6SHFL¿F

gravity

For gas 5/8 (15.88) 0.0394 (1.0) 5/16 (8)

(OHFWULFDOVSHFL¿FDWLRQV

MODEL

MSY-GS30NA MSY-GS36NA MSZ-GS30NA MSZ-GS36NA

INDOOR UNIT

Power supply

(V, PHASE, Hz)

208/230, 1, 60

Min. Circuit Ampacity (A) 1.0

Fan motor (F.L.A.) (A) 0.76

OUTDOOR UNIT

Power supply

(V, PHASE, Hz)

208/230, 1, 60

Max. Fuse size

(time delay)

(A) 20

Min. Circuit Ampacity (A) 19

Fan motor (F.L.A.) (A) 0.93

Compressor

(R.L.A) (A) 13.8

(L.R.A) (A) 17.3

Control voltage

Indoor unit - Remote controller: (Wireless)

Indoor unit - Outdoor unit: DC12-24 V (Polar)

1-2. SELECTING THE INSTALLATION LOCATION

Refrigerant to be added 1.08 oz. each 5 ft. (20 g/m)

INDOOR UNIT

 :KHUHDLUÀRZLVQRWEORFNHG

• Where cool (or warm) air spreads over the entire room.

• On a rigid wall to reduce the possibility of vibration.

• Where it is not exposed to direct sunlight. Do not expose

to direct sunlight also during the period following unpack-

ing to before use.

• Where it can be easily drained.

• At a distance 3 ft. (1 m) or more away from a TV and

radio. Operation of the air conditioner may interfere with

UDGLRRU79UHFHSWLRQ$QDPSOL¿HUPD\EHUHTXLUHGIRU

the affected device.

 ,QDSODFHDVIDUDZD\DVSRVVLEOHIURPÀXRUHVFHQWDQG

incandescent lights. In order to make the infrared remote

control operate the air conditioner normally. The heat

from the lights may cause deformation or the ultraviolet

may cause deterioration.

•

:KHUHWKHDLU¿OWHUFDQEHUHPRYHGDQGUHSODFHGHDVLO\

• Where it is away from the other heat or steam source.

Note:

Install the indoor unit high on the wall where air can

distribute over the entire room.

REMOTE CONTROLLER

• Where it is convenient to operate and easily visible.

• Where children cannot easily touch it.

 6HOHFWDSRVLWLRQDERXWIWPDERYHWKHÀRRU

Check that signals from the remote controller from

that position are received by the indoor unit (‘beep’

or ‘beep beep’ receiving tone sounds). Then, attach

remote controller holder to a pillar or wall and install

wireless remote controller.

Note:

,QURRPVZKHUHLQYHUWHUW\SHÀXRUHVFHQWODPSVDUHXVHG

the signal from the wireless remote controller may not be

received.

OUTDOOR UNIT

• Where it is not overly exposed to strong winds.

 :KHUHDLUÀRZLVJRRGDQGGXVWOHVV

• Where neighbours are not annoyed by operation sound

or hot air.

• Where rigid wall or support is available to prevent the

increase of operation sound or vibration.

• Where there is no risk of combustible gas leakage.

• If installing the unit in a location high above the ground,

be sure to secure the unit legs.

• Where it is at least 10 ft. (3 m) away from the antenna of TV

set or radio. Operation of the air conditioner may interfere

with radio or TV reception in areas where reception is

ZHDN$QDPSOL¿HUPD\EHUHTXLUHGIRUWKHDIIHFWHGGHYLFH

• Install the unit horizontally.

• Please install it in an area not affected by snowfall or

blowing snow. In areas with heavy snow, please install

DFDQRS\DSHGHVWDODQGRUEDIÀHERDUGV

Note:

• It is advisable to make a piping loop near outdoor unit

so as to reduce vibration.

 )RU LQFUHDVHG HI¿FLHQF\ LQVWDOO WKH RXWGRRU XQLW LQ D

location where continuous direct sunlight or excessive

water can be avoided as much as possible.

Note:

When operating the air conditioner in low outside tem-

perature, be sure to follow the instructions described

below.

• Never install the outdoor unit in a place where its air

inlet/outlet side may be exposed directly to wind.

• To prevent exposure to wind, install the outdoor unit

with its air inlet side facing the wall and

DEDIÀHERDUG

on the air outlet side.

Avoid the following places for installation where air

conditioner trouble is liable to occur.

 :KHUHÀDPPDEOHJDVFRXOGOHDN

• Where there is an excessive amount of machine oil

in the air.

 :KHUHRLOLVVSODVKHGRUZKHUHWKHDUHDLV¿OOHGZLWK

oily smoke (such as cooking areas and factories, in

which the properties of plastic could be changed and

damaged).

• Salty places such as the seaside.

 :KHUHVXO¿GHJDVLVJHQHUDWHGVXFKDVDKRWVSULQJ

• Where there is high-frequency or wireless equipment.

• Where there is emission of high levels of VOCs,

including phthalate compounds, formaldehyde, etc.,

which may cause chemical cracking.

Outdoor unit installation

2-13/16 in. (72 mm)

or more/ 5-1/8 in.

(130 mm) or more for

left/left rear piping (using

spacer)

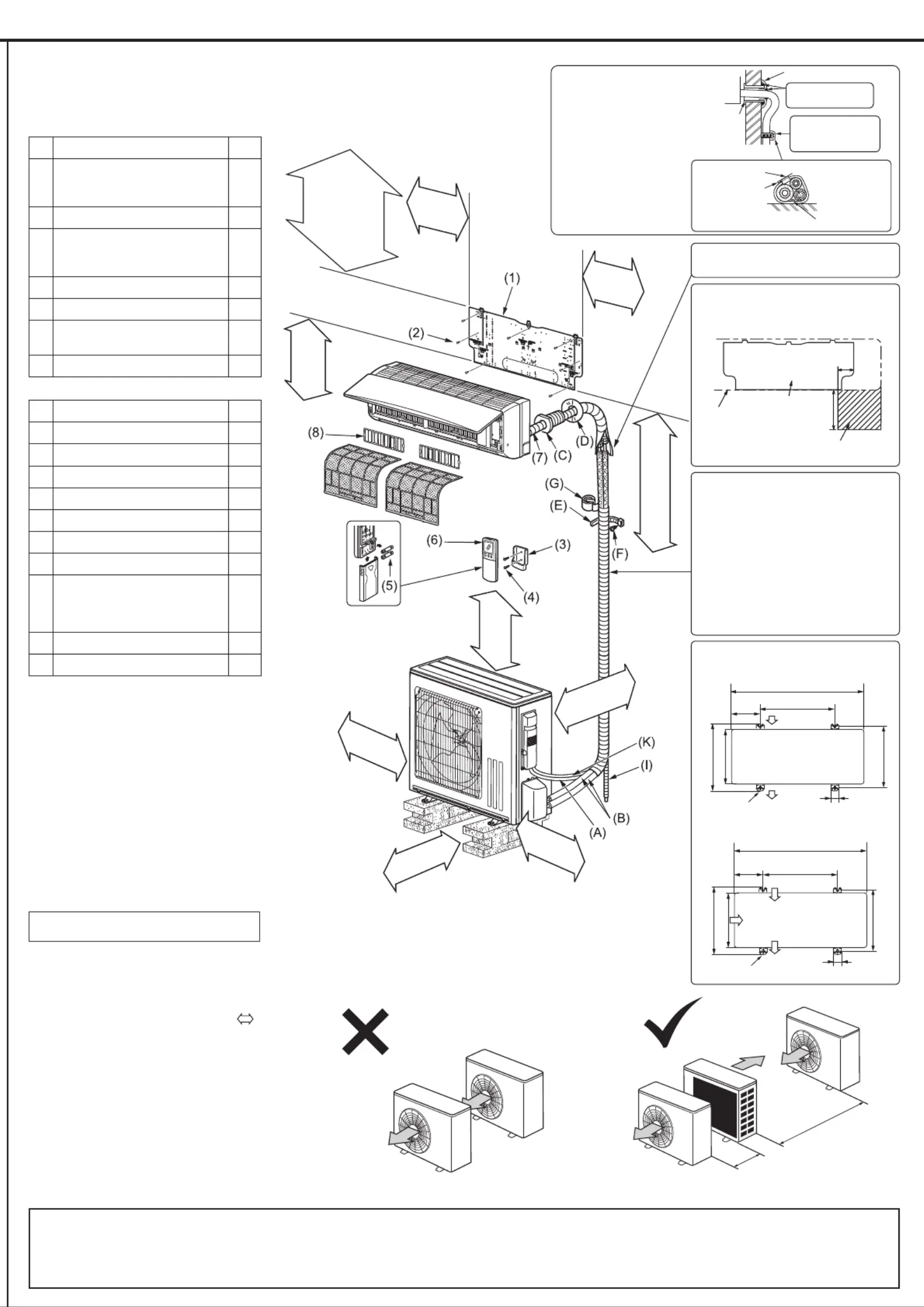

1-4. INSTALLATION DIAGRAM

ACCESSORIES

Check the following parts before installation.

(1) Installation plate 1

(2)

Attachment screws for the installa-

tion plate

4 × 25 mm

(3) Remote controller holder 1

(4)

Screws for the remote controller

holder

3.5 × 16 mm (Black)

(5) Battery (AAA) for (6) 2

(6) Wireless remote controller 1

(7)

Felt tape

(For left or left-rear piping)

(8) $LUFOHDQLQJ¿OWHU 2

FIELD-SUPPLIED PARTS

(A)

Indoor/outdoor unit connecting wire

*1 1

(B) Extension pipe 1

(D) Wall hole cover 1

(E) Pipe attachment strap

2 to 5

(F) Screw for (E) 4 × 20 mm

2 to 5

(G) Piping tape 1

(H) Putty 1

(I)

Drain hose

(or soft PVC hose, 19/32 in. [15

mm] inner diameter or hard PVC

pipe VP16)

(J) Refrigerant oil 1

(K) Power supply cord

*1 1

Units should be installed by licensed contractor

according to local code requirements.

Note:

*1 Place indoor/outdoor unit connecting wire

(A) and power supply cord (K) at least 3 ft.

(1 m) away from the TV antenna wire.

Unit: inch

Unit: mm

4-11/16 in.

(120 mm)

or more

Space for indoor unit working

Please leave the space as shown in the

picture for maintenance usage.

After the leak test, apply insulating mate-

rial tightly so that there is no gap.

Indoor unit

Wall hole

sleeve (C)

Cut off the

extra length.

Pipe attach-

ment strap

(E)

Use the wall hole sleeve

outdoor connecting wire

(A) from contacting metal

parts in the wall and to

protect the wiring from

rodents.

Wall hole cover (D)

Seal the wall hole

gap with putty (H).

Attach the pipe to

wall with pipe at-

tachment strap (E).

Attachment screw (F)

33-1/16

13-3/4~14-5/8

19-11/16

Air inlet

6-7/8

15-3/8

Air outlet

2-3/8 × 13/16 slot 1-9/16

When the piping is to be attached to a wall

comprised of tin plate or metal netting, use

chemically treated wooden piece 25/32 in.

(20 mm) or thicker between the wall and

the piping, or wrap insulation vinyl tape 7 to

8 turns around the piping.

To use existing piping, perform COOL

operation for 30 minutes and pump down

before removing the old air conditioner.

5HPDNHÀDUHDFFRUGLQJWRWKHGLPHQVLRQ

for new refrigerant.

4 in. (100 mm)

or more

4 in. (100 mm)

or more

14 in. (350 mm)

or more

20 in. (500 mm)*3

or more

Note:

Do not

obstruct

the air

outlet.

Indoor unit

Installation

plate

Space

9-27/32 in. (250

mm) or more

4 in. (100 mm)

or more

8-11/16 in.

(220 mm)

or more

clear *2

*2 20 in. (500 mm) or more when

front and sides of unit are clear

*3 When any 2 sides of left, right and rear of unit are clear

Air inlet

Air outlet

2-10 × 21 slot

840

500

390

330

349-371

175

Drain piping for outdoor unit

Install the unit horizontally.

Do not use drain socket in cold regions. Drain may freeze and make the fan stop.

The outdoor unit produces condensate during the heating operation. Select the installation place to ensure to prevent the outdoor unit and/or the grounds from being wet by drain

water or damaged by frozen drain water.

Note:

• The dimensions indicated in the arrows (

) above

show the required space to guarantee performance

of the air conditioner. Install the outdoor unit where

the maximum possible space can be provided, con-

sidering later relocation, services, or repairs.

 7KHFRROLQJKHDWLQJSHUIRUPDQFHDQGWKHHI¿FLHQF\RI

power usage may fall about 10% at the place where
