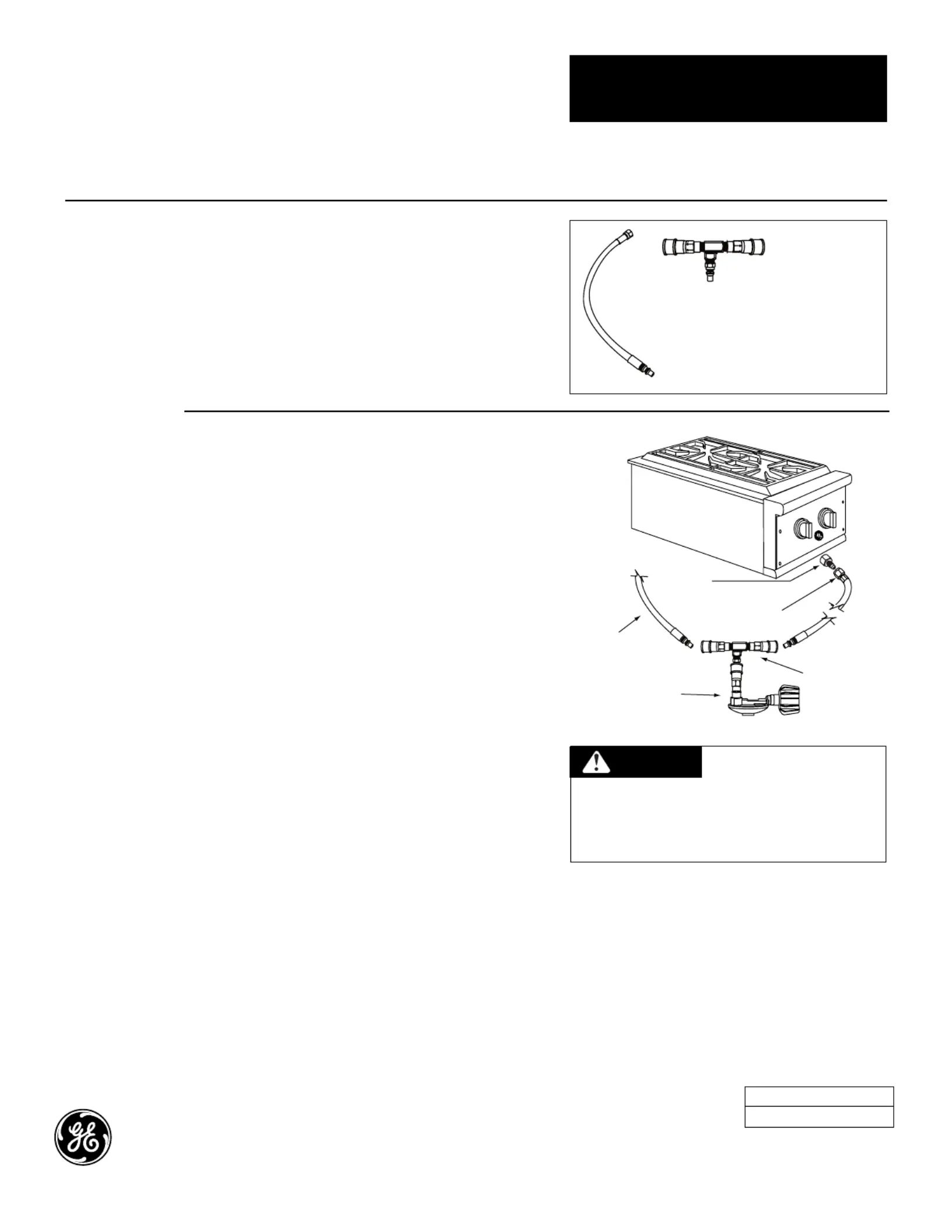

Assembly Instructions
For Combination Installation of 27" Gas Grill and Dual Burner Outdoor Cooktop
ZX27QDC
LP Quick Disconnect Tee
Use this kit when installing a Monogram Dual
Burner Outdoor Cooktop (Model ZX2L)
onto a 27" LP Gas Grill installed on a cart.
(Model ZGG27L21 and ZGG27L20)
This kit provides a Quick Disconnect Tee and
a quick disconnect hose.
Quick Disconnect Tee
and
24" Quick Disconnect Hose
Pub. No. 49-80044
Dwg. No. 164D4290P013
© 2000 GE Appliances
Printed in USA
(N.D. 675) 8/00
11196
Monogram.
®
General Electric Company
Louisville, KY 40225
• Completely close the main valve on the LP
tank supplying the grill.
• Apply joint compound to the threaded end
of the cooktop gas inlet.
• Tighten the 1/2" NPT x 3/8" flare fitting to
the cooktop gas outlet. Do not use threading
compound on the male threads.
• Attach hose to end of fitting and tighten.
NOTE: To connect the Quick Disconnect
couplings, pull back and hold the outer sleeve
of the female coupling while inserting the
male hose end. Release the outer sleeve to
lock. To test the connection, firmly grasp each
part and attempt to pull apart. Once locked,
they should not separate.
• Route the cooktop LP hose through the
panel bushing on the right side of the cart.
• Insert the male hose end from the cooktop
burner into one end of the quick disconnect
tee.
• Attach the hose from the grill to the opposite
female end of the quick disconnect tee.
• Secure the bottom male end of the quick
disconnect tee to the female quick
disconnect LP tank regulator assembly.
WARNING
TEST FOR LEAKS
A complete gas tightness check must be
performed at the installation site. DO NOT
USE A FLAME TO CHECK FOR GAS
LEAKS.
• Do not use the burner until all connections
have been leak tested.
• Repeat leak test after each LP tank change or
gas re-connect.
Refer to “Test for Leaks,” Step 4 in the
Installation Instructions, for the outdoor
cooktop.
Quick
Disconnect
Tee
To L.P.
Regulator
To Manifold
of Grill
24" Quick
Disconnect Hose
1/2" NPT x
3/8" Flare
Fitting
