INSTALLATION GUIDE

Low-Profile Tilting TV Wall Mount Bracket

MI-6524

WARNING: This installation manual is intended to provide guidance on how

to install the TV mount and the TV on a suitable wall. Please contact a

qualified professional if you are unsure of the steps described in the manual

or have doubts about the safety of the installation. Improper installation

may cause damage or serious injury. We cannot be held liable for damage

or injury caused by improper mounting, incorrect assembly, inappropriate

use or for use cases not explicitly specified in this document.

10''- 32''

15KG/33lbs

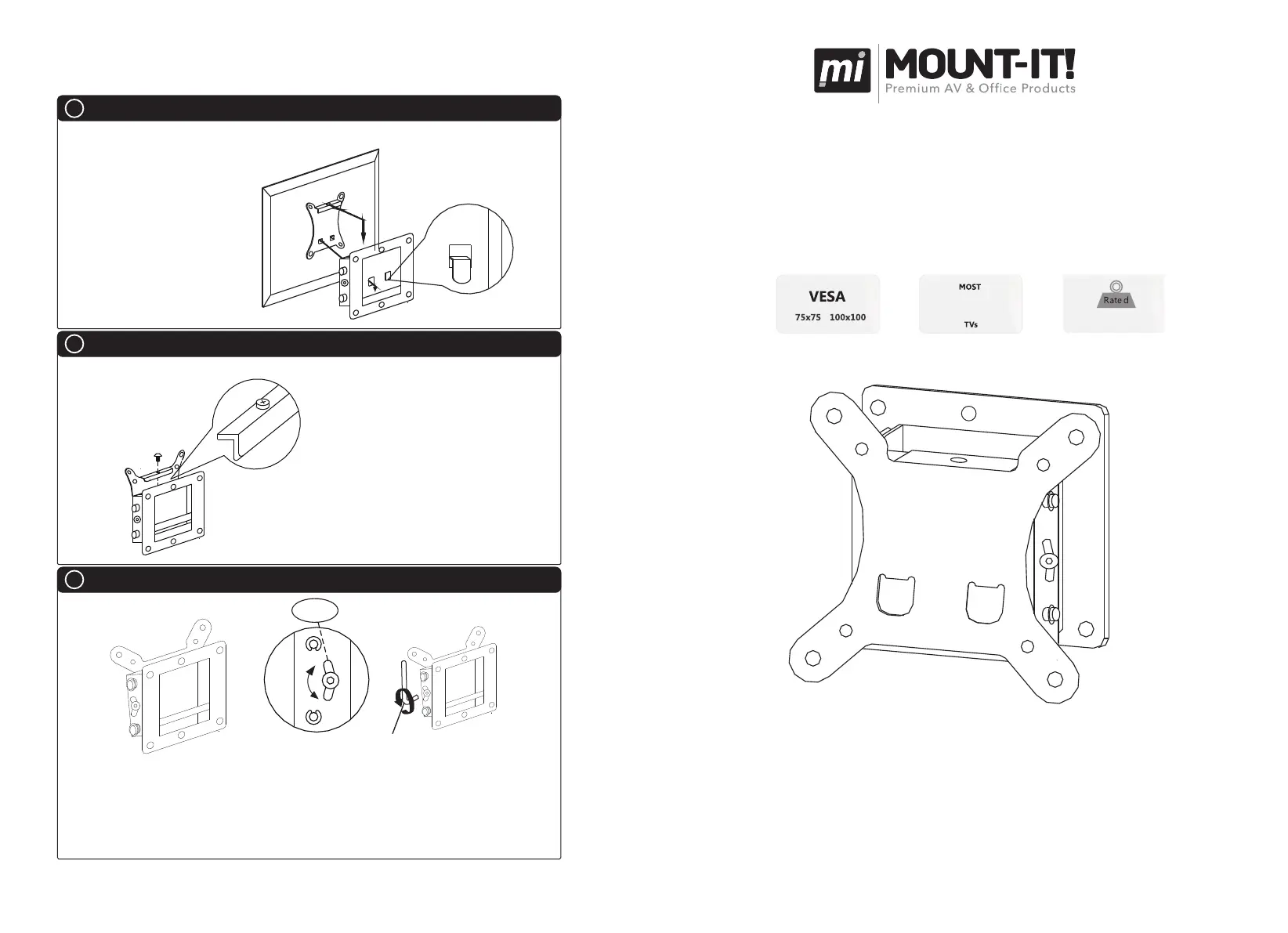

Connect the VESA bracket to the wall plate,

as shown on the image below. Ensure the

top of the VESA bracket, as well as

the metal tabs are securely

connected to the openings

on the wall plate.

C

Hanging TV On the Wall

Securing the VESA Bracket On Wall Plate

D

(1) The TV wall mount allows tilt adjustment to reduce glare.

The tilt angle range is up to 15 degrees down and up to 5 degrees up.

(2) An Allen wrench is provided in the package for tilt adjustments.

If the tilt angle cannot be adjusted freely, loosen the hexagon screw with the Allen

wrench and adjust the tilt angle. Once the desired angle is reached tighten the

screw fix the tilt angle.

Tilt Angle Adjustment

Allen Wrench

E

-5°--+15°

For additional safety, use the M4x12

screw to attach the VESA bracket to

the wall plate.
