Remote

OEM Head-Unit

Rear or Front

speaker cables

RCA

outputs

TX2275

Ground

ZNXH2L

Remote

OEM Head-Unit

Rear or Front

speaker cables

RCA

outputs

Ground

ZNXH2L

20cm 8” Powered Enclosure

RTP8

High-level speaker

inputs to line-level 8V

RCA outputs adaptor

with Remote Out

Designed by MTX

in Phoenix, AZ - USA

Owner’s Manual

• High 2 Low level adapter (Speakers to RCAs)

• Maximum speaker input power : 2x 80W

• Maximum RCA output tension : 2x 8V

• Auto switch ON/OFF

• Generates a +12V 100mA Remote Out from the headunit speaker

cables without the need for a 12V power supply

• Frequency response : 20Hz~20kHz ±0.5dB

• Features 60Ω loads for the best OEM headunit compatibility

• Dimensions : 51x28x6,4mm

8V RMS RCA outputs connectors to be connected to your amp or

your powered enclosure.

Left Speaker Input (-) to be connected to the left spk output (-)

of your factory head unit.

Left Speaker Input (+) to be connected to the left spk output (+)

of your factory head unit.

Remote Out (+12V, 100mA) to be connected to the remote

connector on your amp or powered enclosure.

Right Speaker Input (-) to be connected to the right

spk output (-) from your factory head unit.

Right Speaker Input (+) to be connected to the right

spk output (+) from your factory head unit.

Ground cable to be connected to the car chassis

mtxaudio.de

mtxaudio.it

mtxaudio.eu

mtxaudio.fr

x.com/MTXEurope

x.com/MTXFrance

instagram.com/mtxaudio.eu

instagram.com/mtxaudio.fr

facebook.com/MTXEurope

facebook.com/MTXFrance

Thank you for purchasing the MTX ZNXH2L high-level speaker inputs to

line-level RCA outputs adaptor. The ZNXH2L is designed to enhance your

integrated car factory head-unit and transform it into a phenomenal high

fidelity device to get an ultimate listening experience. Congratulations for

making a smart choice and enjoy your music with MTX.

USA - UK

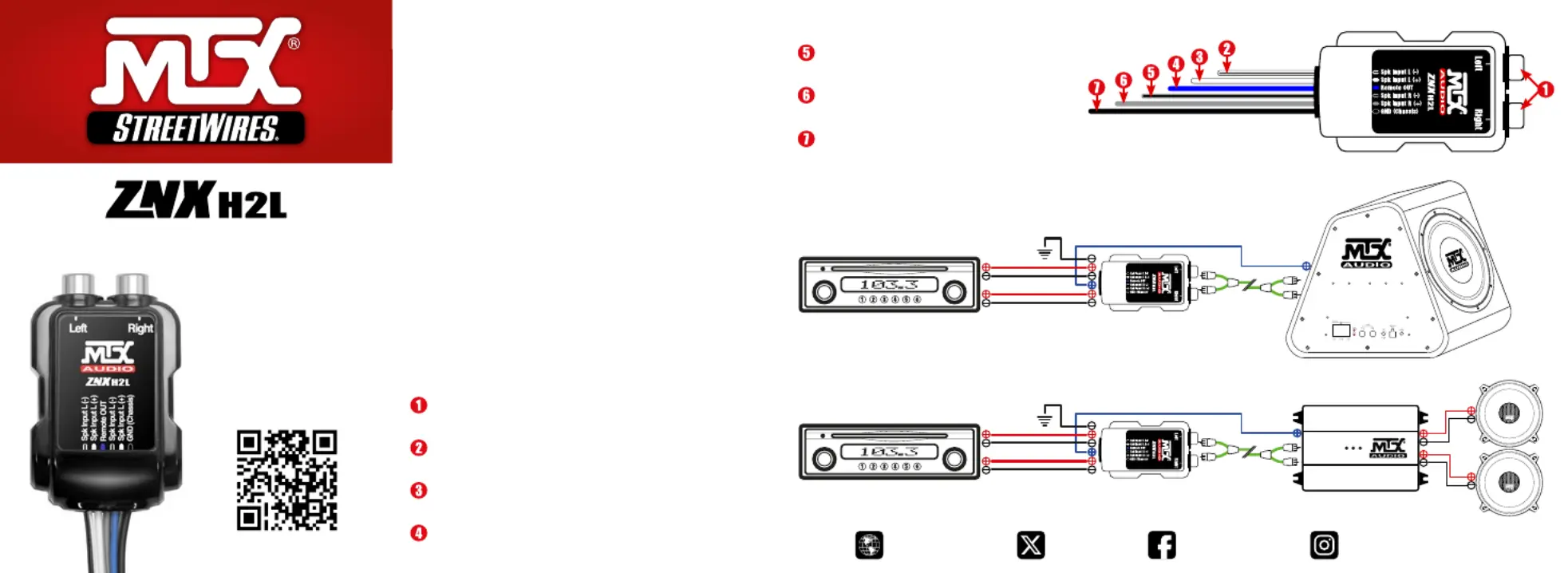

Installation Diagram

Connections

Connections

Specifications
