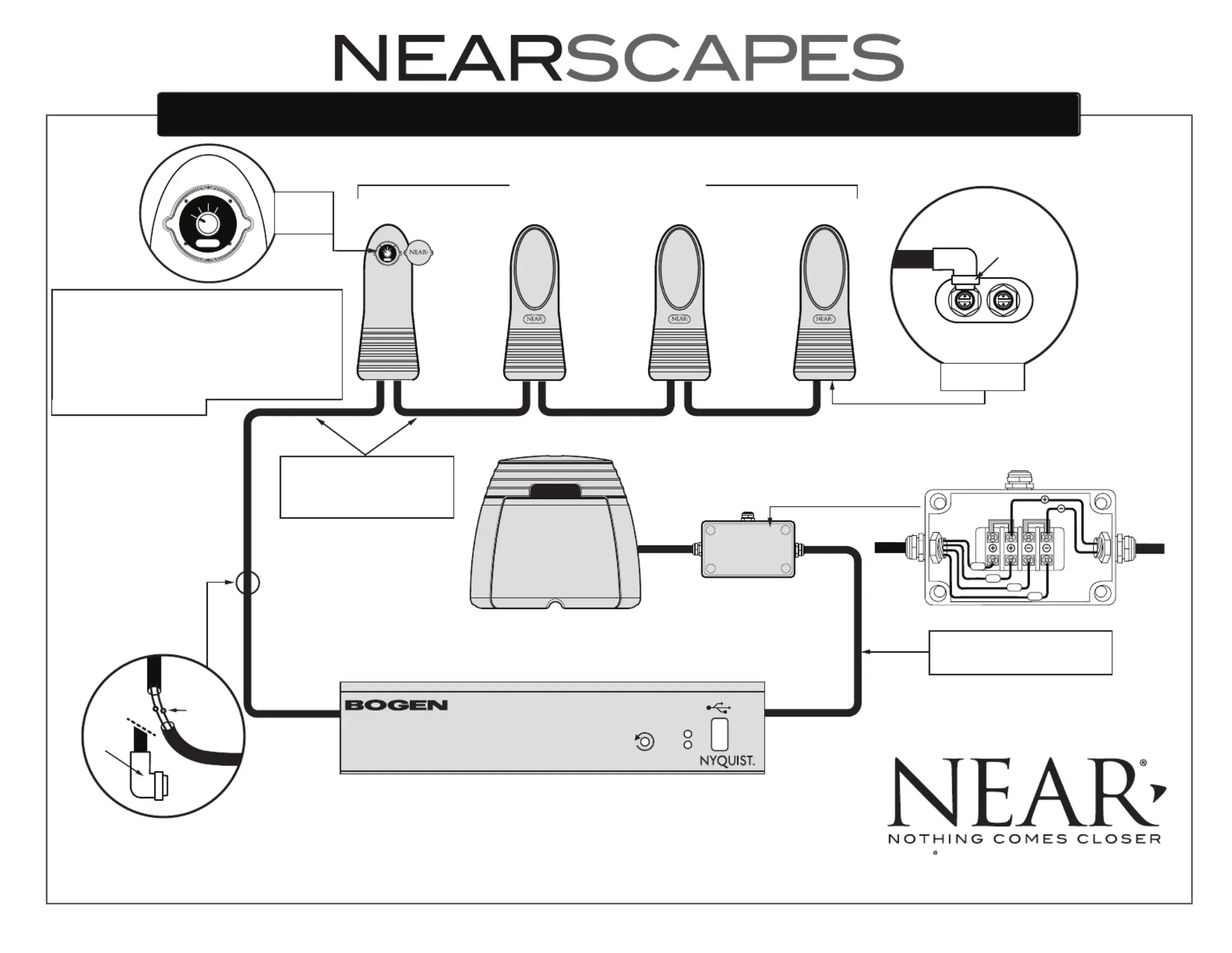

NEARSCAPES IG44.1DSP - QUICK START WIRING CONNECT GUIDE

TM

©2022 Bogen Communications LLC

Specifications are subject to change.

NEAR is a Division of Bogen Communications LLC

NYQUIST NQ-A2120-G2

IGS100M

SUBWOOFER

(16-ohm)

CHANNEL

B

CHANNEL

A

20 ft. cable with Perfect Fit

connectors is supplied with

each IG4M Speaker.

(4-ohm)

Channel A - IGS100M

Channel B - LB4TM/IG4M

IE1

(16-ohm)(16-ohm)(16-ohm)

IG4M LOUDSPEAKERS

Add 16g or greater wire from

the NQ-A2120-G2to the IE1.

Each IG4M Loudspeaker is set to 16-ohm

(factory setting). This result is a 4-ohm load at the

NQ-A2120-G2 Amplifier. The IGS100M Subwoofer

is wired as a 4-ohm speaker (there are two voice

coils in parallel). RED/GREEN twisted together,

BLACK/ORANGE twisted together, if IE1

Junction Box is not used.

Cut Plug

off cable

Speaker

cable

Splice

speaker

wire as

needed

Insert Plugs into Connector

Sockets and twist Plug

Ring to secure.

Perfect Fit

Connector Sockets

FROM

AMPLIFIER

FROM

SUBWOOFER

BLK

ORG

RED

GRN

JUMPERJUMPER

UNDERSIDE VIEW

OF IG4M

IE1 JUNCTION BOX

G4M

I

16

ohm

16W

32W

64W

G4M

I

16

ohm

16W

32W

64W

REAR VIEW

OF IG4M

(Protective

Cover removed)

POWER

STATUS

Audio Power Amplifier

®
