ORBITOR-INS 7/16
installation instructions
IMPORTANT MOUNTING
INFORMATION:
1. The Orbitor requires a minimum of 2’
(.6 m) of reinforced exible hose in the
mounting assembly.
2. THE ORBITOR COMES WITH
A .85 LB. INTEGRAL WEIGHT
INSTALLED. DO NOT USE ANY
OTHER WEIGHT IN ADDITION
TO THE ORBITOR WEIGHT.
3. Always be sure that the Orbitor Weight is
securely tightened.
4. Always be sure that all components in
the mounting assembly and the Orbitor
are securely tightened. Use new*
Nelson pressure regulators and ttings.
5. If ¾” ball valves are used, use metal
nipples.
* New, patented single-strut seat manufactured
after 2007.

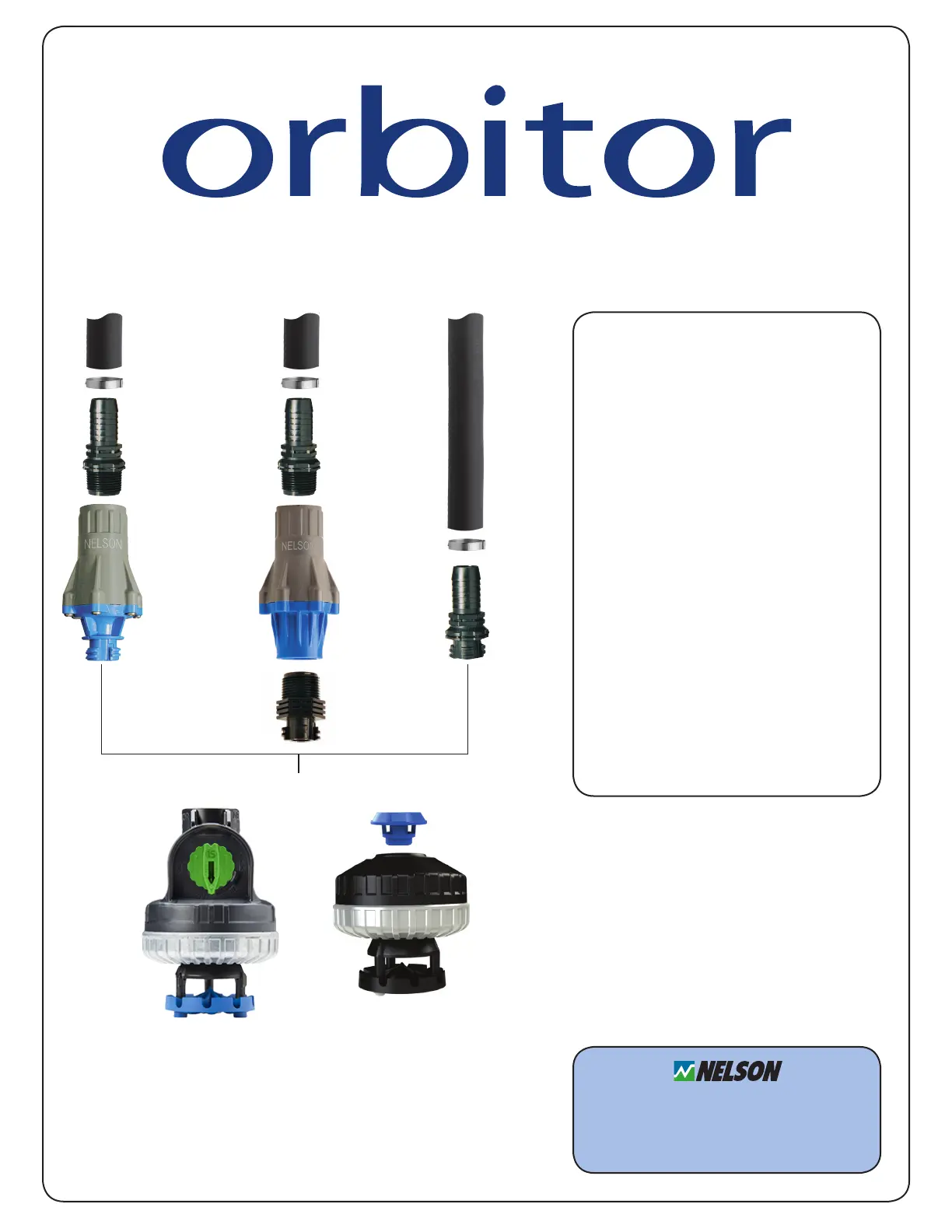

HOSE
minimum
of 2’ (.6m)
CLAMP
NELSON
HOSE BARB X
MNPT
ADAPTER
NELSON
FNPT X SQUARE
THREAD PRESSURE
REGULATOR
CLAMP
NELSON
FNPT X FNPT
PRESSURE
REGULATOR
NELSON MNPT X
SQUARE THREAD
ADAPTER
NELSON
HOSE BARB X
MNPT
ADAPTER
CLAMP
NELSON
HOSE BARB X
SQUARE
THREAD
ADAPTER
WARRANTY AND DISCLAIMER: Nelson O3000 Orbitors are warranted for one year from date of original sale to be free of defective materials
and workmanship when used within the working specications for which the products were designed and under normal use and service. The
manufacturer assumes no responsibility for installation, removal or unauthorized repair of defective parts. The manufacturer’s liability under this
warranty is limited solely to replacement or repair of defective parts and the manufacturer will not be liable for any crop or other consequential
damages resulting from defects or breach of warranty. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSES AND OF ALL
OTHER OBLIGATIONS OR LIABILITIES OF MANUFACTURER. No agent, employee or representative of the manufacturer has authority
to waive, alter or add to the provisions of this warranty, nor to make any representations or warranty not contained herein.
This product may be covered by one or more of the following U.S. Patent Nos. 5415348, 5439174, 5588595, 6439477, 7048001, 7287710,
7562833, 7942345, 8028932 and other U.S. Patents pending or corresponding issued or pending foreign patents.
Nelson Irrigation Corporation
848 Airport Rd., Walla Walla, WA 99362 USA
Tel: 509.525.7660 Fax: 509.525.7907 [email protected]
Nelson Irrigation Corporation of Australia Pty. Ltd.
35 Sudbury Street, Darra QLD 4074 [email protected]
Tel: +61 7 3715 8555 Fax: +61 7 3715 8666
WWW.NELSONIRRIGATION.COM
HOSE
minimum
of 2’ (.6m)
HOSE
minimum
of 2’ (.6m)
O3030
ORBITOR
& WEIGHT
3TN NOZZLE
O3000
ORBITOR
& WEIGHT
28
3030 SERIES OR3000 SERIES
