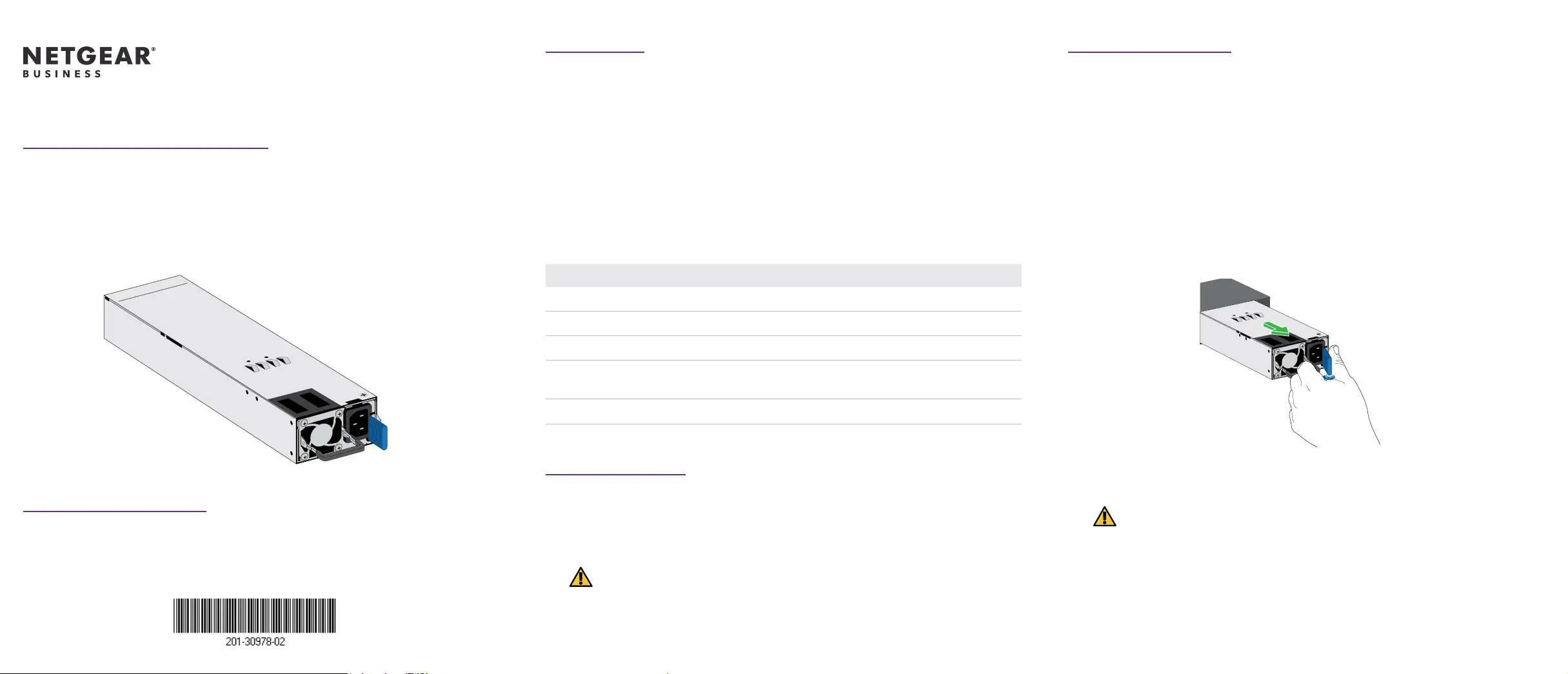

Seite 1/2

Installation Guide

Overview

The APS600Wv3, APS1200Wv2, and APS2000Wv2 auxiliary power supplies (APS) are

supported in the following M4350 series switch models:

• M4350-24X8F8V (SKU: XSM4340V)

• M4350-36X4V (SKU: XSM4340CV)

• M4350-32F8V (SKU: XSM4340FV)

• M4350-16V4C (SKU: VSM4320C)

• M4350-40X4C (SKU: XSM4344C)

Each APS has an LED that indicates the power supply status, as described in the following

table.

LED Status

Solid green DC output is present and voltage is good.

Off Loss of AC power occurred or AC power is not present.

Blinking green AC power is present but DC output is for standby only.

Blinking

amber

Warnings for abnormal events, like high operating temperature, high

output current, slow fan, high output power.

Solid amber A power supply failure occurred and the APS will be shut down.

Install an APS

In models with more than one power supply bay, you can install an additional APS.

1. Pull out the cover plate from the power module bay in which you want to insert the

additional APS.

2. Insert the APS into the power module bay, and gently push the APS into the bay.

CAUTION: When inserting the APS, do not use unnecessary force. Doing so

can damage the connectors on the back of the APS and on the midplane.

3. Connect the end of the power cord to the power receptacle on the APS.

4. Plug the AC power cord into a power source such as a wall socket or power strip.

Auxiliary Power Supplies for the

M4350 Series Fully Managed Switches

APS600Wv3, APS1200Wv2, and APS2000Wv2

Package contents

• Auxiliary power supply

• Power cord (varies by region)

• Installation guide

Replace an APS

In models with more than one APS, the APSs are hot-pluggable.

1. If your switch functions with a single APS only, disconnect the power cord from the

APS and let the switch power down.

If your switch functions with more than one APS, you do not need to power down the

switch and you can perform a hot swap.

2. Remove the APS from the power module bay by doing the following:

a. Position the extraction handle perpendicular to the APS.

b. Insert your left index nger into the extraction handle.

c. Use your left thumb to move the orange release latch to the left and keep it in the

release position.

d. Pull the extraction handle.

We recommend that you use your right hand to support the APS.

3. Insert the replacement APS into the power module bay, and gently push the APS into

the bay until the latch locks.

CAUTION: When inserting the APS, do not use unnecessary force. Doing so

can damage the connectors on the back of the APS and on the midplane.

4. Connect the end of the power cord to the power receptacle on the APS.

When you apply power, the LED on the APS lights. The LED on the switch for the

power supply bay also lights. If these LEDs do not light, make sure that the power

cord is plugged in and that the power source is good.

November 2023

Produktspezifikationen

Marke:	Netgear
Kategorie:	Nicht kategorisiert
Modell:	APS2000Wv2
Breite:	73 mm
Tiefe:	185 mm
Gewicht:	937 g
Produkttyp:	Stromversorgung
Produktfarbe:	Grau
Höhe:	39.8 mm
AC Eingangsspannung:	110 - 240 V
Eingebaut:	Ja
Kompatibilität:	M4350-36X4V (XSM4340CV)\t \t\nM4350-24X8F8V (XSM4340V)\t \t\nM4350-32F8V (XSM4340FV)\t \t\nM4350-16V4C (VSM4320C)\t \t\nM4350-40X4C (XSM4344C)
Gesamtleistung:	2000 W
