Instruction Manual

XPP-5414GX-K01

Please read these instructions before using your Nightstick XPP-5414 Intrinsically

Safe Flashlight. They include important safety information and operating instructions.

THE XPP-5414GX IS APPROVED FOR US

CLASS I DIV 1 GRPS A-D T3

CLASS II & III DIV 1 GRPS E-G T135ºC

CLASS I ZONE 0 AEx ia IIC T3 Ga

Ex ia IIC T3 Ga

Ex ia op is IIC T3 Ga

Intertek ITS 18 ATEX202366X

ITS21UKEX0268X

IECEx ITS 18.0005X

-20ºC ≤ Tamb ≤ +40ºC

1.5V/Cell with two

Energizer E91 or EN91

2575

INTRINSICALLY SAFE

SECURITE INTRINSEQUE

II 1 G Ex ia op is IIC T3 Ga

Bayco Products, Inc. XPP-5414GX

Ex ia FLASHLIGHT FOR USE IN HAZARDOUS LOCATIONS

640 S. Sanden Blvd., Wylie, TX 75098

ID 4003544

0359

WARNINGS - INTRINSICALLY SAFE

yWarning: Use only the approved non-rechargeable batteries listed below.

yWarning: Do NOT attempt to use rechargeable AA batteries with this light.

yWarning: To prevent ignition of a hazardous atmosphere, do not open the lens bezel

in the hazardous environment. This task must ONLY be performed in an area known

to be non-hazardous.

yWarning: When exchanging batteries, use only Energizer EN91 or Energizer E91

batteries.

yWarning: To prevent ignition of a hazardous atmosphere, the AA batteries must only

be exchanged in an area known to be non-hazardous.

yWarning: To reduce the risk of explosion, do not mix new batteries with used

batteries, or mix batteries from different manufacturers.

yWarning: Substitution of components may impair intrinsic safety.

SPECIAL INSTRUCTIONS FOR INTRINSIC SAFETY

For personal safety, always conrm the rating of any known hazardous or potentially

hazardous location where the light is to be used.

BATTERY INSTALLATION

WARNING: In order to maintain the XPP-5414’s Intrinsically Safe rating, the only

AA batteries certied for use with this light are the Energizer EN91 or Energizer

E91 batteries.

yDo not attempt to use any other brand or model of AA batteries.

yDo not attempt to use any type of rechargeable AA batteries.

Warning: To prevent ignition of a hazardous atmosphere, do not remove the lens

bezel or the reector / battery carrier in the hazardous environment. This task must

ONLY be done in an area known to be non-hazardous.

yLoosen the locking screw located on the side of the lens cap. NOTE: Do NOT

attempt to completely remove the locking screw. Doing so is not necessary and may

damage the threads. The screw simply needs to be loosened enough to allow the lens

bezel to unscrew.

yUnscrew the lens bezel from the housing in a counter-clockwise direction.

yTurn the light upside down and carefully shake the light in order to remove the

batteries. Allow the batteries to slide into your hand.

yUsing 2 – AA Energizer EN91 or Energizer E91 batteries (make sure that all

batteries are of the same model), install the batteries in the carrier paying close

attention to the markings inside the housing for proper battery terminal polarity

alignment.

yReplace the lens bezel by screwing it onto the housing in a clockwise direction.

yTighten locking screw. CAUTION: Do NOT over-tighten. Doing so may damage the

threads and impact the light’s Intrinsic Safety.

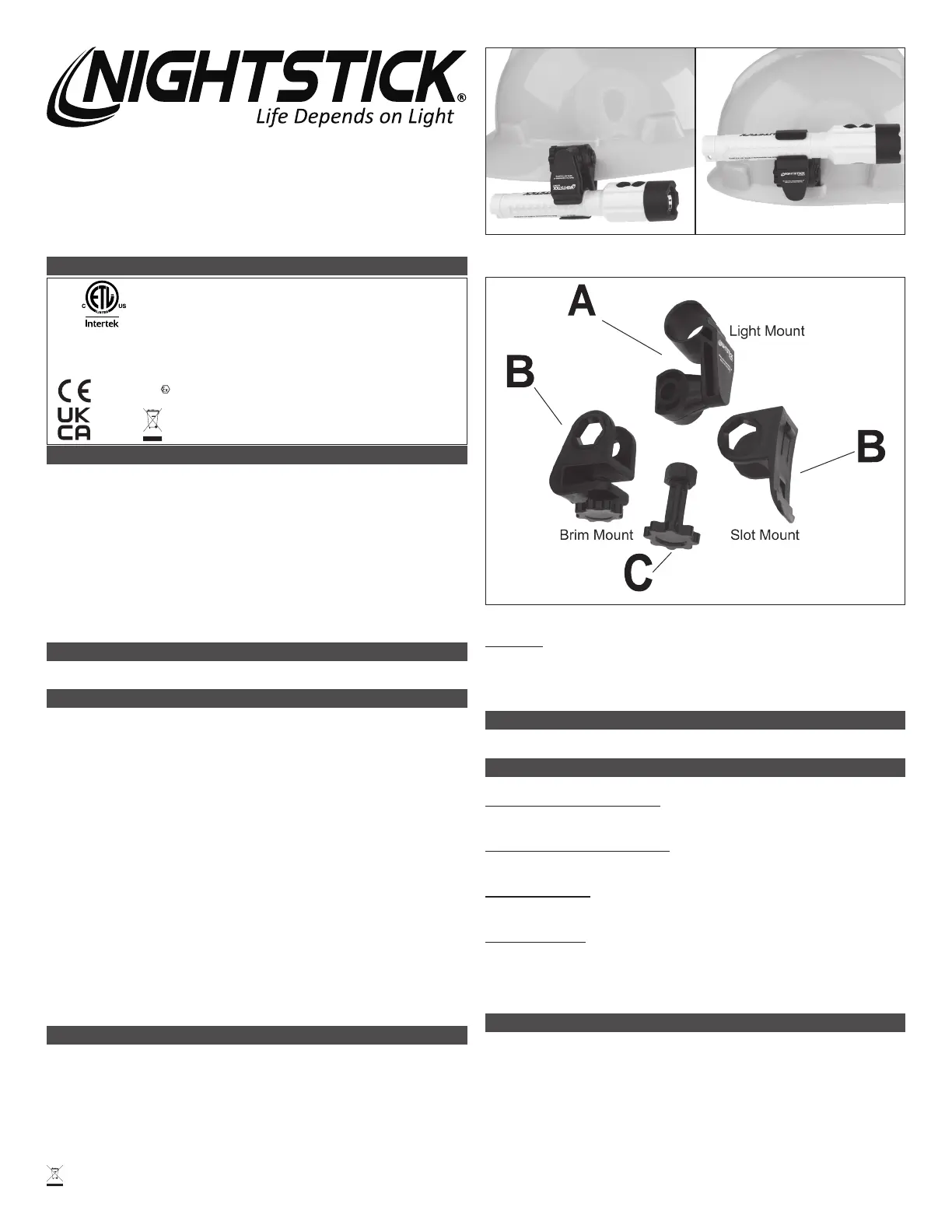

ATTACHING HELMET MOUNT

THE XPP-5414-K01 COMES WITH THE NS-HMC7 MULTI-ANGLE MOUNT THAT

CAN BE ATTACHED TO ANY FIRE HELMET OR HARD HAT.

Two mounting components are included that can be changed depending on what

type of mount is needed.

yBrim Mount - Mounts on brim of helmet or hard hat..

ySlot Mount - Slides into helmet accessory slot.

NS-HMC7 Helmet Mount Kit

ASSEMBLY

yFit the Light Mount (A) into the slot of either the Brim Mount or Slot Mount (B) and

securely tighten using the thumb screw (C).

ySecurely attach the brim or slot mount to the helmet.

yPlace the ashlight inside the Light Mount.

SET THE ANGLE OF THE MULTI-ANGLE MOUNT

Once mounted to the helmet, the user can change the angle of the mount in order to

position the light appropriately for the optimum clearance and illumination.

OPERATION

THE XPP-5414 HAS FOUR SEPARATE LIGHTING MODES:

MOMENTARY FLASHLIGHT MODE

Lightly press the top body switch for momentary operation. Release the switch to

turn the light off.

CONSTANT-ON FLASHLIGHT MODE

Press the top body switch until it clicks and then release for constant-on mode. Press

and release the top body switch again to turn the light off.

FLOODLIGHT MODE

Press the bottom body switch until it clicks and then release for oodlight mode.

Press and release the bottom body switch again to turn the light off.

DUAL-LIGHT MODE

Dual-Light allows the user to turn on both the Flashlight and the Floodlight, at

the same time. Press the top body switch until it clicks and then release for constant-

on mode Flashlight Mode. Next press and release the bottom switch to activate the

Floodlight. Both the Flashlight and the Floodlight are now running. Press and release

both the top and bottom body switches to turn the lights off.

WARRANTY

LIMITED LIFETIME WARRANTY

Bayco Products, Inc. warrants this product to be free from defects in workmanship

and materials for the original purchaser’s lifetime. The Limited Lifetime Warranty

includes the LEDs, housing and lenses. Rechargeable batteries, chargers, switches,

electronics and included accessories are warranted for a period of two years with proof

of purchase. Normal wear and failures which are caused by accidents, misuse, abuse,

faulty installation and lightning damage are excluded.

XPP-5414 with Brim MountXPP-5414 with Slot Mount
