ASSEMBLY INSTRUCTION
SKU#62/312, 62/315, 62/318
NOTE:Please consult a qualified electrician if you are not certain of installation or servicing.
CAUTION:Before starting installation or servicing, disconnect power by turning off the circuit breaker or by
removing the fuse at the fuse box.
1.Carefully unpack the fixture, lay out all parts on a clean surface.

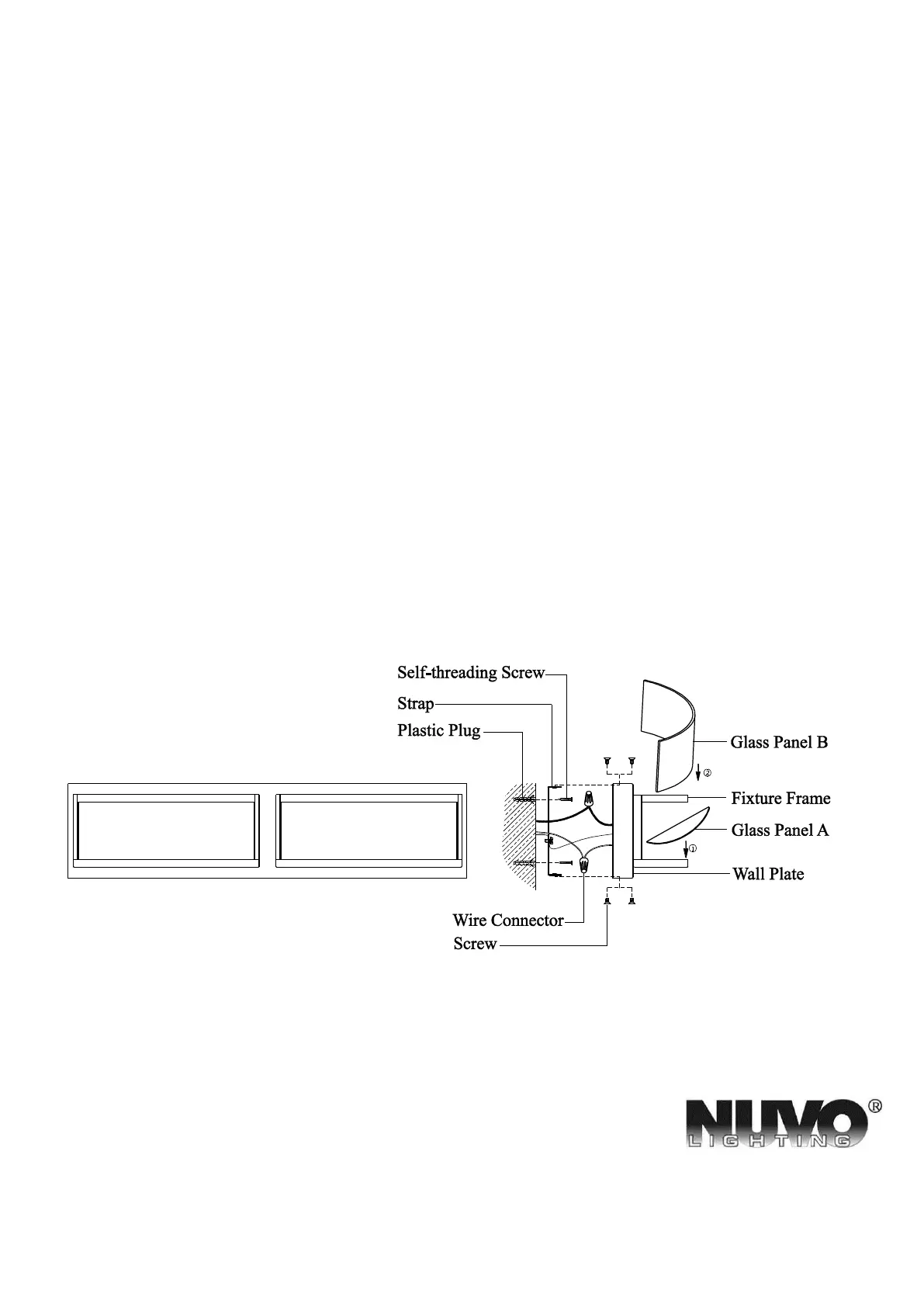

2.Insert Plastic Plugs into the wall, and fasten the Strap to the wall by threading Self-threading Screws into
Plastic Plugs.
3.Place Glass Panel A and Glass Panel B to the Fixture Frame in turn.
4.Connect wires white to white and black to black. Cover connections with provided Wire Connectors. Tie
ground wires from wall and from fixture to the Ground Screw on the Strap.
5.Place the fixture body to the wall, aligning the mounting strap protrusions with the corresponding mounting
holes on the fixture wall plate. Use the provided screws to secure the fixture wall plate to the mounting strap,
ensuring that the fixture body is held firmly against the wall.
6.Turn on power.
A Satco Product
