Keep this user guide for future reference. Always retain your proof of purchase
in case of warranty service.
www.oricom.com.au
Tutorial videos are available -oricom.com.au,
select your model and scroll down to FAQ's
Keep this user guide for future reference. Always retain your proof of purchase
in case of warranty service.
www.oricom.com.au
Tutorial videos are available -oricom.com.au,
select your model and scroll down to FAQ's
01
02
Contents
Important Note
Parking Assist System (PAS) assists drivers
when reversing or parking by sounding an
audible beep to warn the driver of surrounding
objects.
1. This system is for vehicles with 12~24V DC.
2. This system should be installed by a
professional auto electrician.
3. Route wiring hamess away from heat source
and electrical components.
4. lt is strongly recommended to check the
position of the sensors before installation.
5. Perform a functional test after installation.
6. The PAS is designed as a driver assistance
device, and should not be used as a substitute
for safe parking practices. The area into which
the vehicle is to be reversed must be
constantly visually monitored while parking.
Oricom international do not guarantee or
assume liability for collisions or damages while
reversing the vehicle.

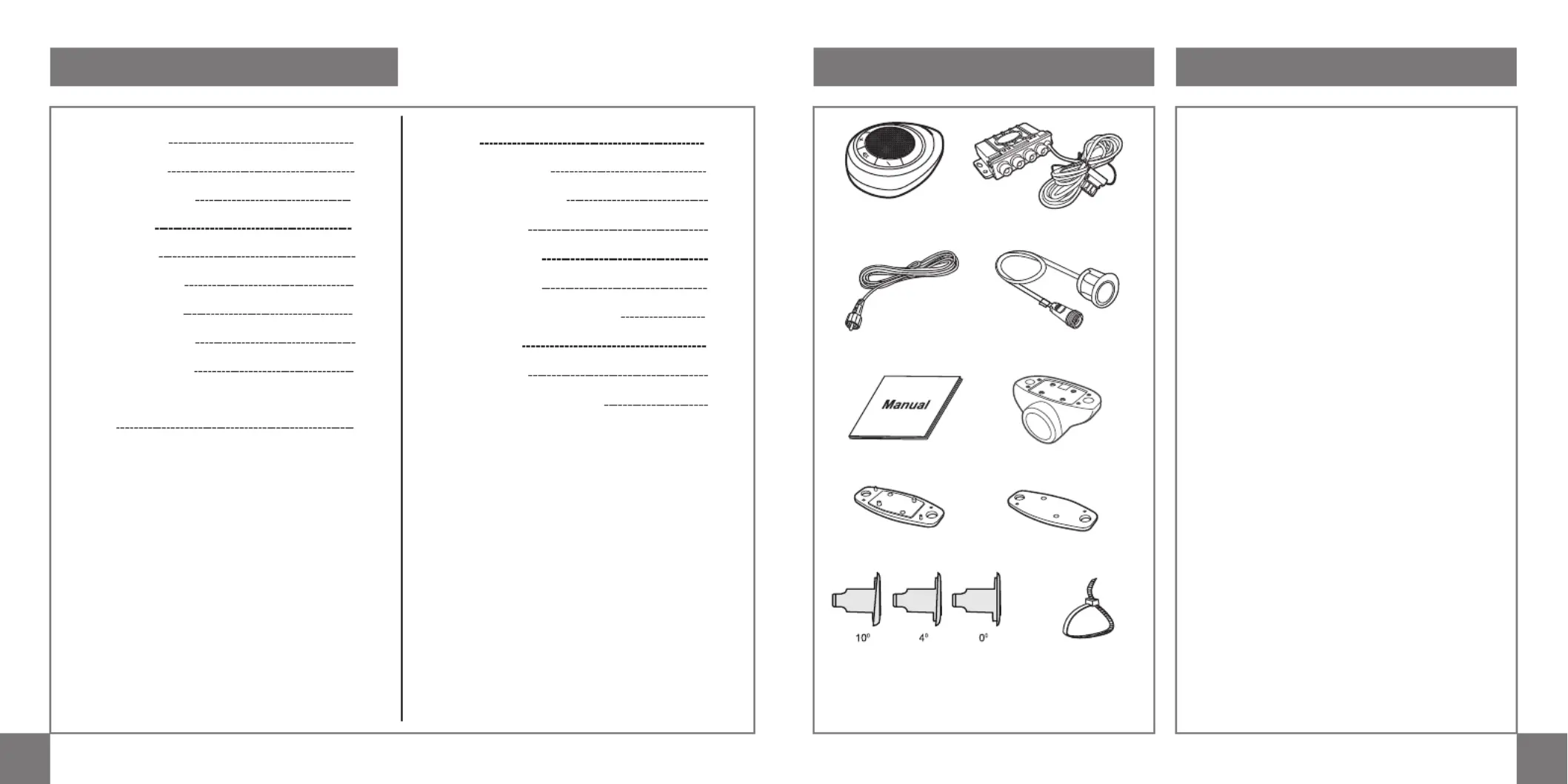

Pack Inclusions
Sensor gasket (10°) x 4 Sensor gasket (5°) x 4
Note: 4° sensor cover already fitted to sensor.
※The above graphics are for reference only
Sensor wire x 4
Sensor x 4
Sensor bracket x 4
Speaker ECU
User manual
Cable ties
Important Note
2
Product Information
Key Features
Specifications

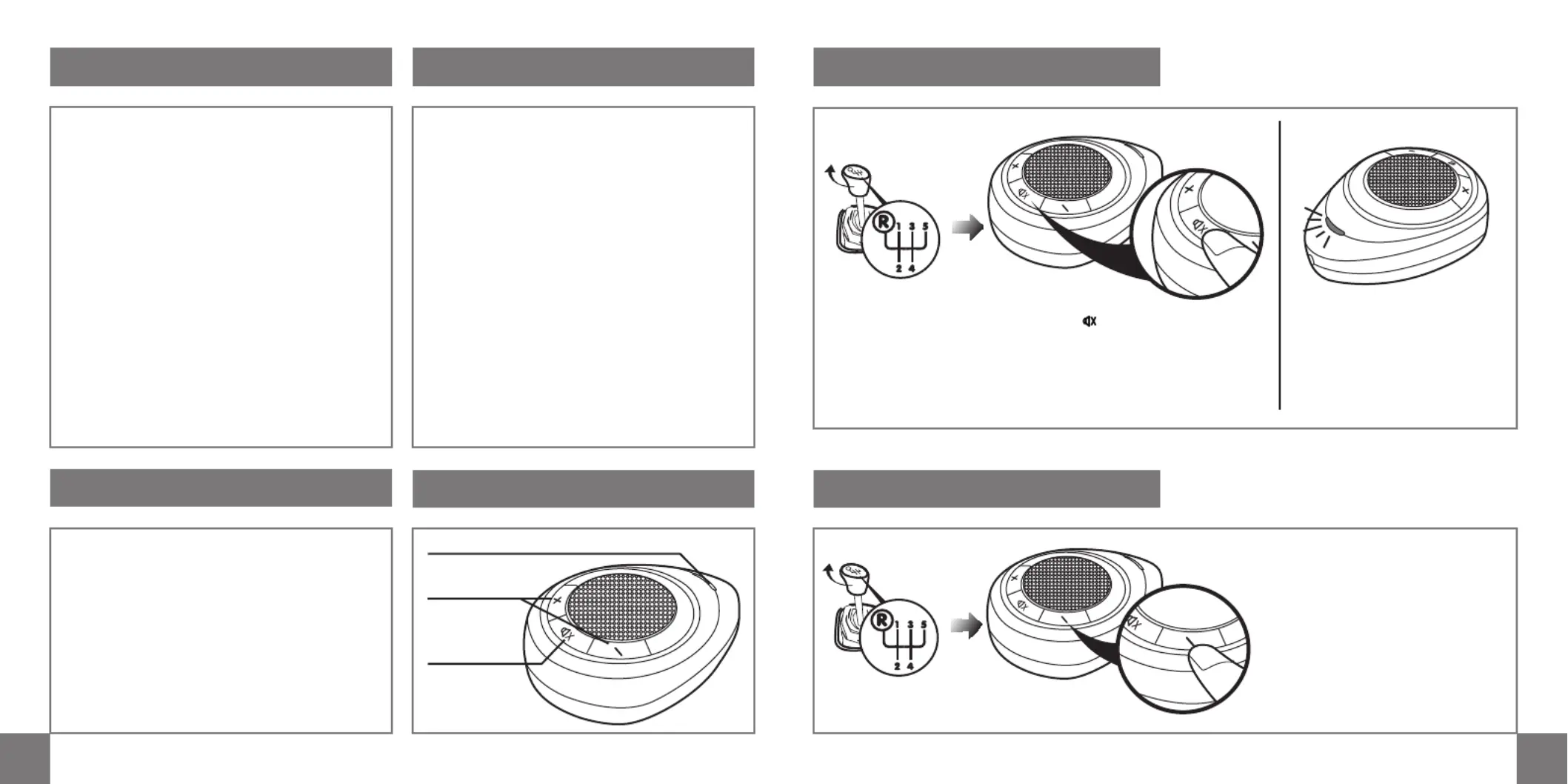

Speaker Overview
Voice Adjustment
Volume Adjustment
Self Test Instruction
Leaming function for cars with tow-bars or spare
wheels
3
3
3
3
4
4
5
6
Attention
Sensor maintenance
Typical Alert distances
7
7
8
Pack Inclusions
2
Installation tools
Sensor Installation
Buzzer Installation
Functional Test after Installation
Wiring Diagram
Troubleshooting
19
20
21
22
Express Warranty (Australia)
23
9
10
Sensor cover x 4
04
03
Volume Adjustment
· Human voice speaker
· All weather design
· Self-test function
· Detachable sensor with waterproof wire
connector
ECU
·
Operating voltage: DC 9V ~ 32V
·
Operating current: <150mA
·
Operating temperature: -40 ~ + 80°C
·
Storage temperature: -40 ~ +85°C
Sensor
·
Operating frequency: 40 ±2KHz
·
Operating temperature: -40 ~ + 80°C
·
Storage temperature: -40 ~ +85°C
Buzzer
·
Operating voltage: DC 9V ~ 32V
·
Operating temperature: -40 ~ + 80°C
·
Storage temperature: -40 ~ +85°C
·
Operating current: <300mA
·
Siren SPL: 70~90dB
This PAS comes with 4-sensors and a buzzer,
The sensors transmit an ultrasonic signal when
the car is reversing, and alerts with audible
tones, if the system detects an obstacle.
The Oricom WPS01 is a 4-sensor parking
assist system, the sensors are connected to the
control unit via cables, the control unit and the
buzzer communicate via power and ground
connections.
· Volume adiustable
· Water resistant control box
LED indicator
Volume
adjust buttons
Voice ON/
OFF button
When reverse gear is selected, press “ ” button for 2 seconds to
turn on/off the voice alerts
Red LED light flashes 3 times:
Voice alerts turn off
Blue LED light flashes 3 times:
Voice alert turn on
There are three volume levels,
low medium and high.
When reverse gear is selected,
press “ +/- ” button on the buzzer
to adjust the volume.
When a detected obstacle is less
than 0.3m, the audible warning
will alarm at high volume
automatically.
Product Information
Specifications
Key Features
Speaker Overview
Voice Adjustment
