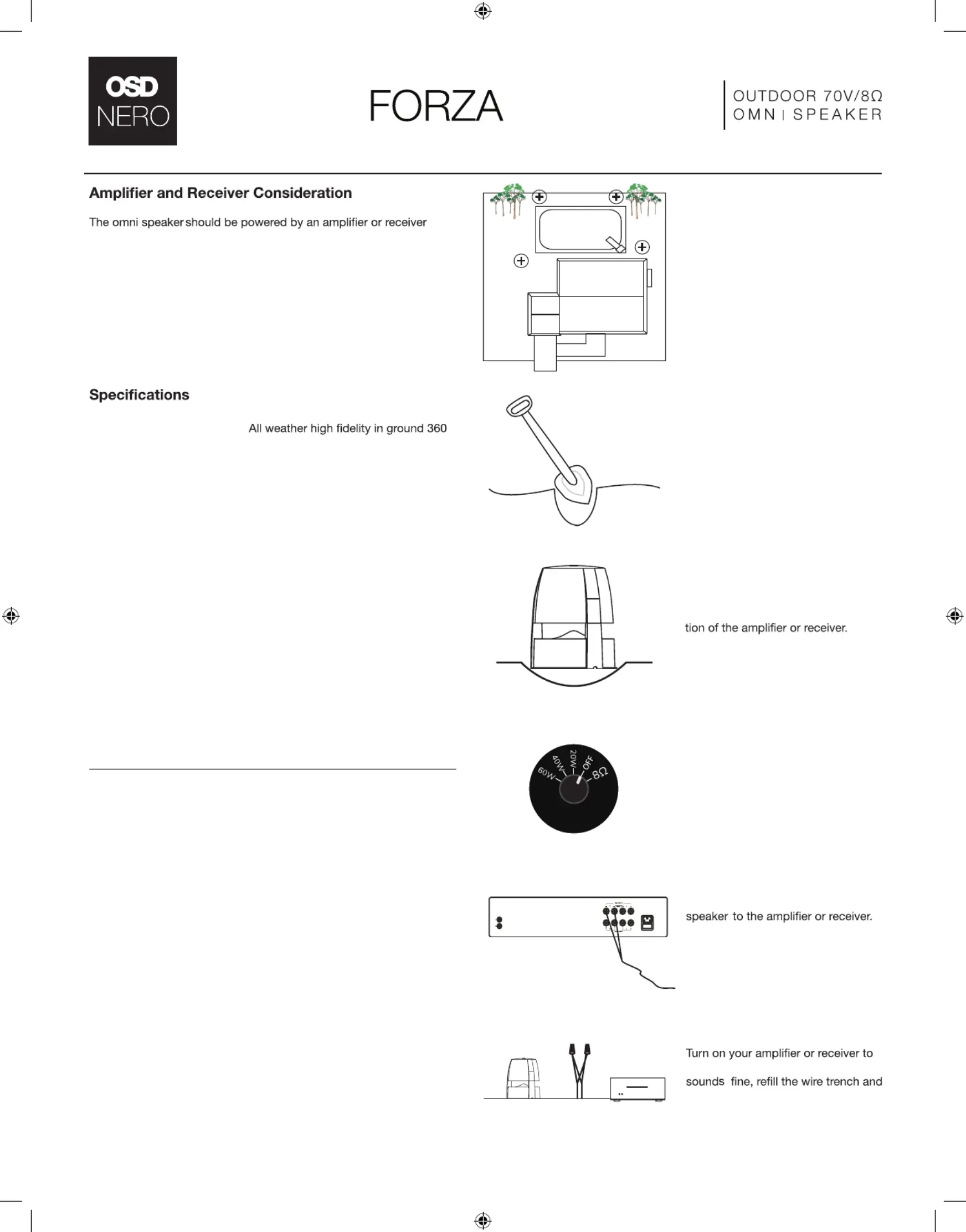

Step 1
Evaluate the location of the
speaker. Project the length of
speaker wire you will run.
Note: when purchasing additional
direct burial speaker wire, make sure
the wire gauge is consistent.
Omni speakers reproduce sound in
a full 360 degree and a speaker
will cover a large area with sound if
properly placed.
Step 2
Once you have decided on the
location for your in ground
speaker, dig a trench about 5”
leading from the speaker to the
input source for the speaker cables.
For the FORZA850T-LUM omni speaker,
dig a trench hole approximately 16”
in diameter and 5” deep for the
speaker enclosure.
Step 3
Place the omni speaker in the hole
you have dug. Run the direct burial
wire through the trench to the loca-
Please note: When connecting the
additional wire be sure to use water
tight wire connectors.
Step 5
Connect the wires from the omni
Please make sure the polarity on the
cables and the speaker are in sync.
Optional: Using an outdoor volume
control makes it convenient for you
to adjust the volume outside.
Step 4
Use the Tap switch located on the
speaker to select the appropriate
setting best suited for your
application.
Step 6
test the speaker. If the speaker
cover the submerged part of the
speaker.
that provides a minimum of 10 watts per channel.
Tools needed for installation
- Spade or trench tool
- Direct burial rated speaker cable
16AWG..........................................................................................100 ft
14AWG.................................................................................100 - 150 ft
12AWG.................................................................................150 - 200 ft
Design:
sound speaker with built-in LED for
landscape accent lighting.
LED power:8-10W
LED input voltage: DC12V
LED color temperature: 4000K
Woofer: 8” with a 360 horizontal dispersion
Tweeter: 1” PEI Dome
pattern
Frequency Response: 42 Hz - 20 kHz
Power Handling: 200W
70V Tap: 20W, 40W, 60W
Impedance: 8 Ohm
Sensitivity: 88 dB
Dimensions: (L x W x H) 14” x 14” x 17”
Gross Shipping Weight: 14 lbs
Warranty: 3 Year
Installation
INSTALLATION GUEID
LED Lighting Considerations
Note: We do not provide the low voltage transformer. The choice of
transformer should be decided by the landscape lighting designer or if
you are installing yourself can be sourced directly on-line from sites
like Amazon.
The LED light requires 12 Volts and up to 10 Watts.
The light color or temperature is 4000K, commonly called “Cool”, just
above neutral. The maximum light output is 800 Lumens, similar to a
60-Watt incandescent light bulb. Area of illumination is approx. 1.5'
There are two wires coming from the bottom of the Forza850T-LUM
one is for connecting to an amplifier for sound and the other is for
connecting to a transformer for the LED light and is labeled “LED
Light”.
The wire for the LED light can be extended. A 5% reduction in
brightness can be expected using 14 gauge wire over 190 feet.
If you are partially burying the Forza850T-LUM, please experiment
with the depth and its affect on the lighting effect you are trying to
achieve.
When in doubt, consult a landscape lighting designer.
850T-LUM
