Operating Instructions
Wireless Sound System
Model No. SH-FX80
Before connecting, operating or adjusting this product, please read the
instructions completely. Please keep this manual for future reference.
Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully.
Designed for Panasonic DVD Home Theater Sound Systems
compatible with the SH-FX80.
System SH-FX80
Digital Transceiver SH-FX80T
Wireless Sound System SB-FX80
Wireless 2nd-Room
Audio System
Enjoy your home theater unit’s audio
in any room.
page
2
page
3
Powerful Stand-Alone
Audio Amplifier
Connect your MP3 player or other
digital audio device.
page
4
Compatible with
Panasonic SH-FX60
Easily pair two wireless audio systems
for convenient tandem use.
Accessories
Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts.
(Product numbers correct as of April 2006. This may be subject to change.)
To order accessories, refer to “Accessory Purchases” on page 5.
∏1 AC power supply cord (K2CB2CB00018)
For use with this unit only. Do not use it with other equipment.
Also, do not use cords for other equipment with this unit.
∏1 Cradle screw (XTB3+8GFJ)
∏2 Cradles for external digital audio players
User memo:
1 pocket-type cradle
(RGQX0033-H)
1 stand-type cradle
(RGPX0257-H)
DATE OF PURCHASE _______________________________________________
DEALER NAME ____________________________________________________
DEALER ADDRESS _________________________________________________
__________________________________________________________________
TELEPHONE NUMBER ______________________________________________
The model number and serial number of this product can be found on either the back
or the bottom of the unit. Please note them in the space provided below and keep for
future reference.
MODEL NUMBER SH-FX80
SERIAL NUMBER
Panasonic Consumer Electronics Company, Division of Panasonic
Corporation of North America
One Panasonic Way Secaucus,
New Jersey 07094
http://www.panasonic.com
C 2006 Matsushita Electric Industrial Co., Ltd.
Panasonic Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
Printed in Malaysia
p
2
Setup
Preparation
≥Turn off all equipment before connection and read the appropriate operating instructions.
≥Connect the AC power supply cord after all other connections are complete.

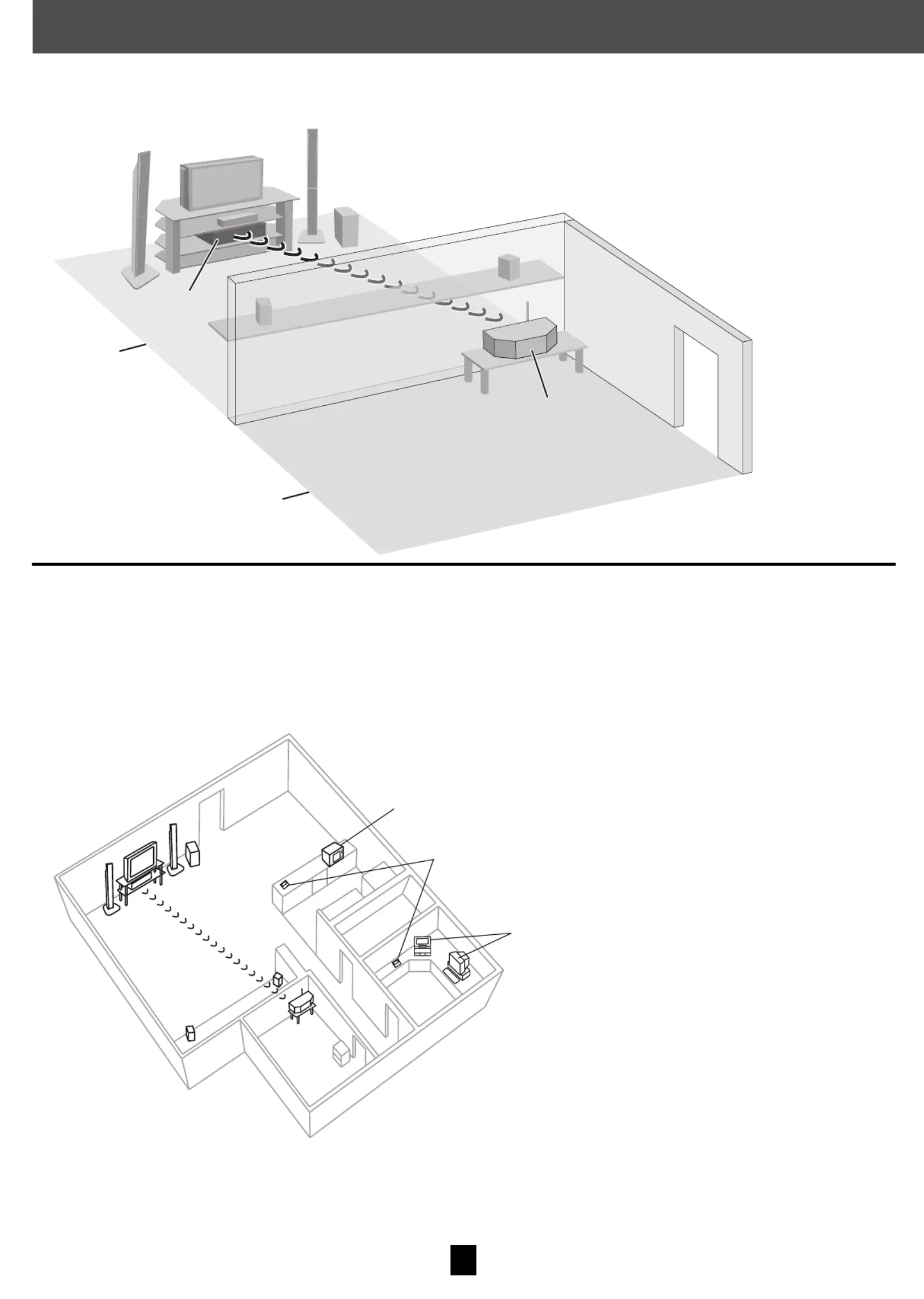

∫Wireless setup diagram
[Note[
≥Do not use the wireless sound system and digital transceiver in a metal cabinet or bookshelf.
≥
When using the wireless sound system in a separate room, thick or dense walls may reduce the 15 m (49 ft) operating range. If you experience an intermittent link (e.g. sound cutting out),
try moving the wireless sound system to a different location nearer to your home theater unit.
Home theater unit
(with digital transceiver)
Wireless sound system
Place within approximately 15 m (49 ft)
from the home theater unit.
e.g.
Main room
Second room
∫Avoiding interference
To avoid possible interference, do not place the wireless sound system near any of the following devices.
The wireless sound system uses the same radio frequencies as other devices that may be present in your home.
The wireless sound system will automatically seek a clear channel if any of these other devices interfere with its communication. When this happens, the wireless link indicator (e.g. “
[W]
” or
LED) flashes on your home theater unit, and there is a brief interruption in audio coming from the wireless sound system.
This is the normal operation of the product working to assure the best possible performance of your Home Theater System.
If the interference persists, try moving the other devices to another location outside the range of the wireless sound system.
2.4GHz-band microwave oven
2.4GHz-band cordless phone
personal computer with 2.4GHz-
band wireless LAN
e.g.
3

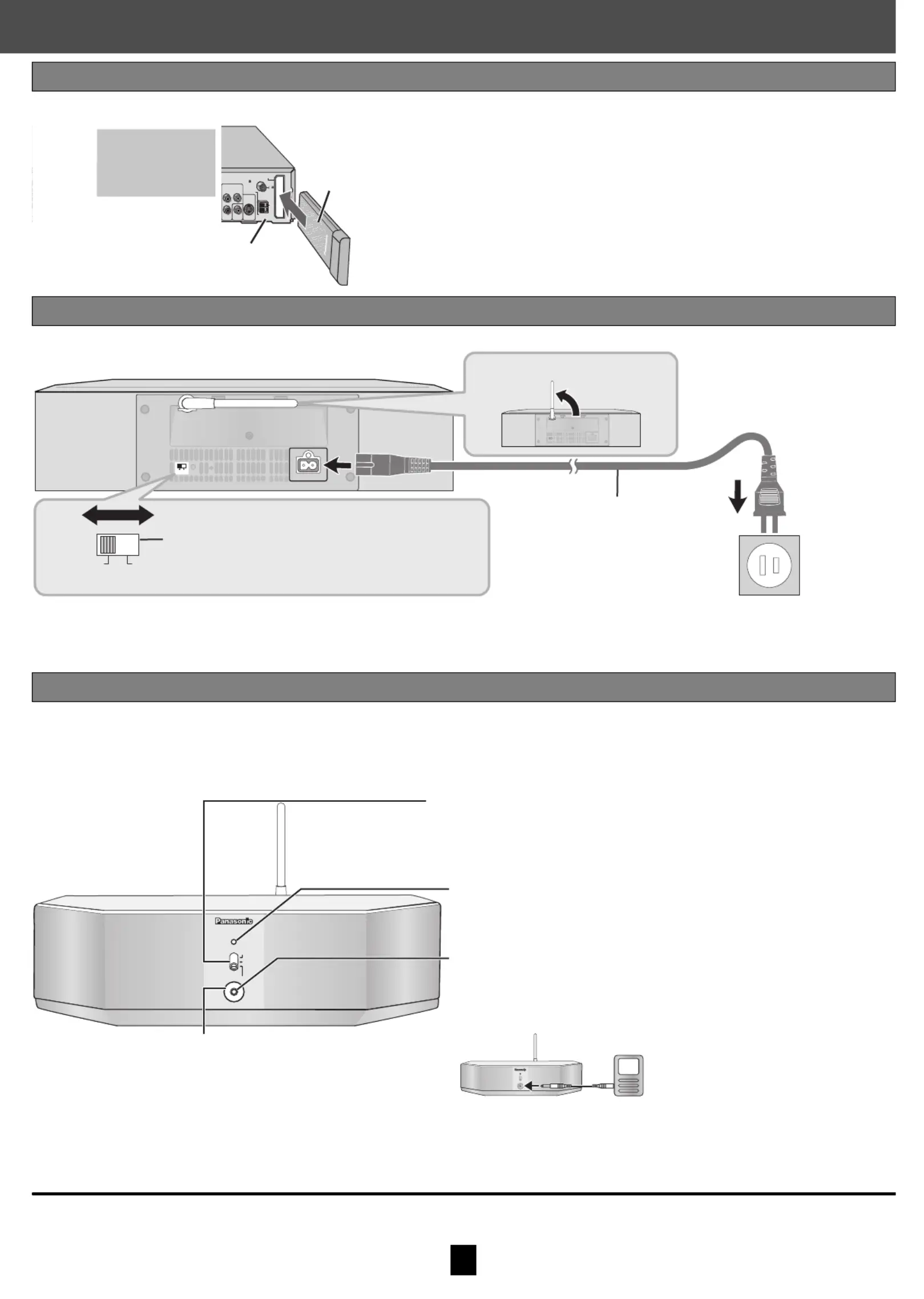

Insert the digital transceiver into the slot of your home theater unit.
Connect the AC cord to the wireless sound system.
Connecting the digital transceiver
Connecting the AC cord and setting the sound level
DIGITAL
TRANSMITTER
FM ANT
75
75
75
75
COMPONENT VIDEO OUT
VIDEO
S-VIDEO
OUT
AM
ANT
EXT
LOOP
YP
B
R
P
OUT
Digital transceiver
§
Insert fully until you hear a click.
Rear of the home theater unit
Do not insert or
remove while the
home theater unit
is on.
e.g.
§
For SH-FX60 users, do not remove the SH-FX60T transceiver card from the
home theater unit. Refer to page 4, “Pairing your SB-FX80 wireless sound
system with the SH-FX60 wireless system (not included)”.
AC IN
~
Hi
SOUND
Lo
I/D SET
SOUND
Lo Hi
AC IN
~
Hi
SOUND
Lo
I/D SET
To household AC outlet
(AC 120 V, 60 Hz)
AC power supply cord
Soft Loud
The primary sound level can be set here.
≥You can set the switch to “Hi” to boost the overall volume of an
external device (e.g. MP3 player) that has low output power when
connected to the MUSIC PORT on the wireless sound system.
Raise the antenna mast for best reception.
Refer also to the operating instructions for your home theater unit.
Conserving power
The wireless sound system consumes a small amount of power when it is in standby mode.
To save power when the unit is not to be used for a long time, unplug it from the household AC outlet.
Making the wireless link
1
Turn on your home theater unit.
≥Ensure the wireless sound system is plugged into the AC outlet.
2
Select “MAIN SET” or “MUSIC PORT” on the wireless sound system.
3
Check the wireless link indicator on the home theater unit.
The wireless link indicator (e.g. “ [W] ” or LED) should light up on the home theater unit.
≥If the indicator is flashing, refer to page 8, Troubleshooting guide.
4
Start play on the home theater unit.
MAIN SET
MUSIC PORT
AC IN
SELECTOR
POWER OFF
Power indicator [AC IN]
This indicator lights when the unit is plugged into the AC outlet.
MUSIC PORT
Allows you to connect and enjoy music from an external device (e.g. MP3 player).
≥Set the selector on the wireless sound system to MUSIC PORT.
≥To avoid distorted sound, make sure that any equalizer function of your external device
is turned off.
≥ ‰Plug type: 3.5 mm (
1
/ 8z) stereo mini plug
Lighting Ring
The light goes out when the unit is in
standby mode, or turned off.
SELECTOR
MAIN SET: Select to enjoy audio from your home theater unit.
POWER OFF: Select to turn off the wireless sound system.
MUSIC PORT: Select
to enjoy
audio from the MUSIC PORT on the wireless sound system.
External device (not included)
Reduce the volume before connecting.
e.g.
