CT-2500CH, CT-2300, UP14ZLW Tools;

CD-525, CD-550, CD-570 and CD-090 Dies

PA25711A01

Rev. 057-2023

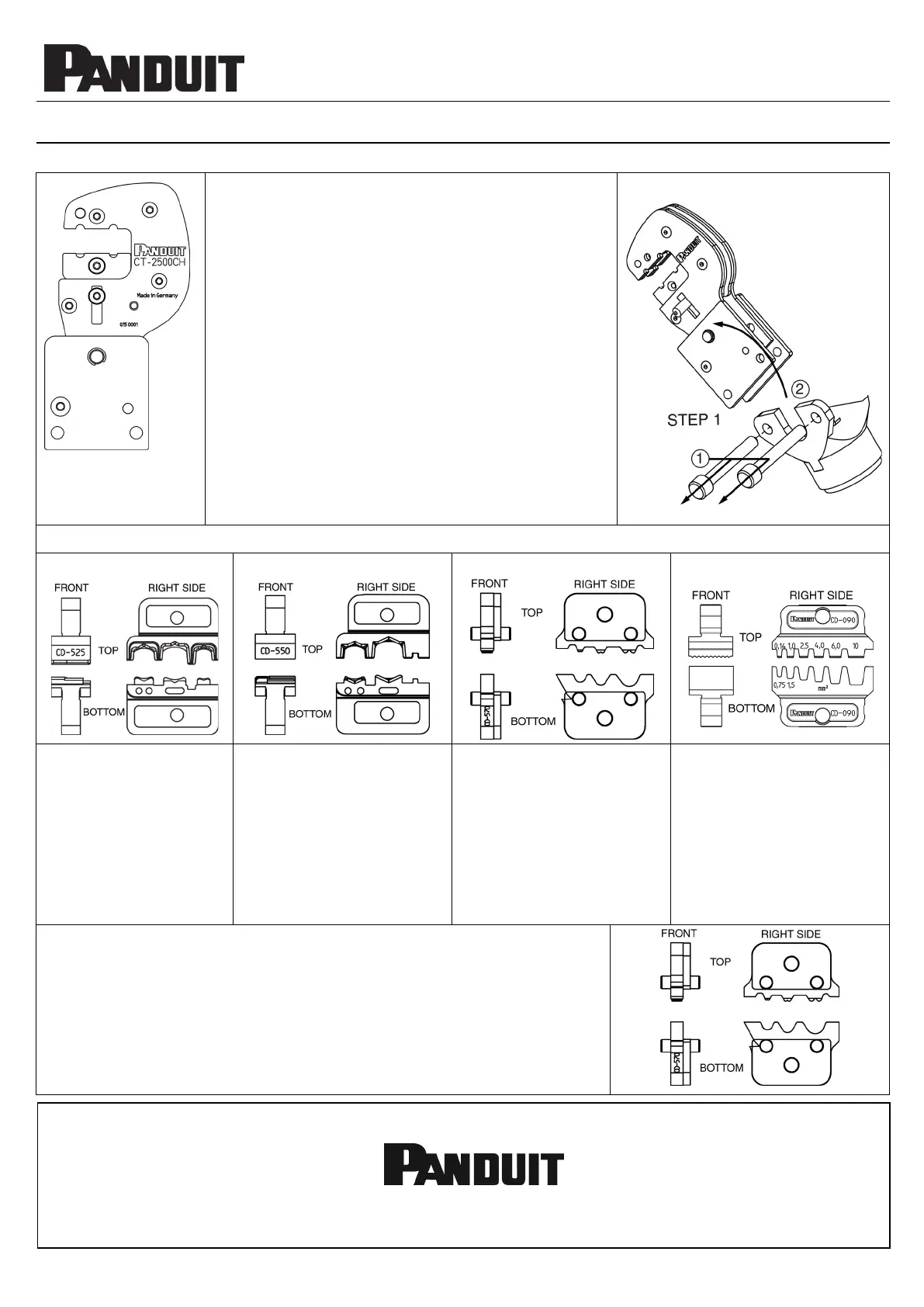

CRIMPING HEADand CRIMP DIE INSERTINSTALLATION INSTRUCTIONS

© Panduit Corp. 2023

CT-2500CH

(shown without

Crimp Die Inserts)

CRIMPING HEAD REMOVAL / INSTALLATION

•Pull out the pins and remove crimp head for

mounting different crimping die inserts into the

crimp head. Once die inserts have been installed,

reinsert the crimp head and lock the head with

the locating pins (see Step 1) paying attention

that the pins are locked securely before starting.

•The crimping cycle is terminated when the dies

are completely closed and the maximum crimping

force is reached, which is indicated by the auto

retraction of the piston.

•Follow the instructions for installing crimp die

inserts below. The directional callouts indicate die

position for correct die orientation.

Refer to CT-2500, CT-2500/E (PA25346A01);

CT-2500/L or CT-2500/LE (PA28113A01) Operation

Manual for complete tooland crimping head

instructions.

NOTE: DIE MOUNTING ORIENTATION IS SAME FOR CT-2500CH, CT-2300 and UP14ZLW TOOLS.

CD-525

CD-550

CD-570

/*

CD-090

Crimping Die for

installing the following

Panduitproducts:

#26 – #22AWG insulated

terminals and splices,

#22 – #10 AWG fully insulated

disconnects, insulated parallel

splices; and specific #22 – #14

AWG barrel insulated

disconnects.

Crimping Die for installing

the following Panduit

products:

#22 – #10 AWG insulated

terminals and splices;and

specific insulated disconnects.

Crimping Die for installing

most of the following Panduit

products:

#22 – #10 AWG and 0,5 – 6,0 mm

2

non-insulated terminals,

disconnects; and specific non-

insulated splices.

Orient part seam on bottom half of

dieopposite of indentor.

Crimping Die with square

profile for installing the

following Panduitproducts:

#26 – #10 AWG insulated and

non-insulated single wire ferrules;

and #22 - #12 AWG insulatedtwin

ferrules.

CRIMPING DIE INSERT INSTALLATION

Step 1: Align Crimp Die halves as shown.

•Crimp tabs should be centered on crimp pockets

•Color dot die halves should nest together when properly aligned. Crimp die

part numbers should be on top and in front (as shown above).

NOTE:CD-570 crimp die part number should be on bottom and in front

(as shown in view to theright).[Continued on Page 2]
