INSTRUCTIONS CM223B

Technical Support Phone: 866-405-6654

Fax: 708-444-6993

E-mail: ncginfo@panduit.com

Page 1 of 1

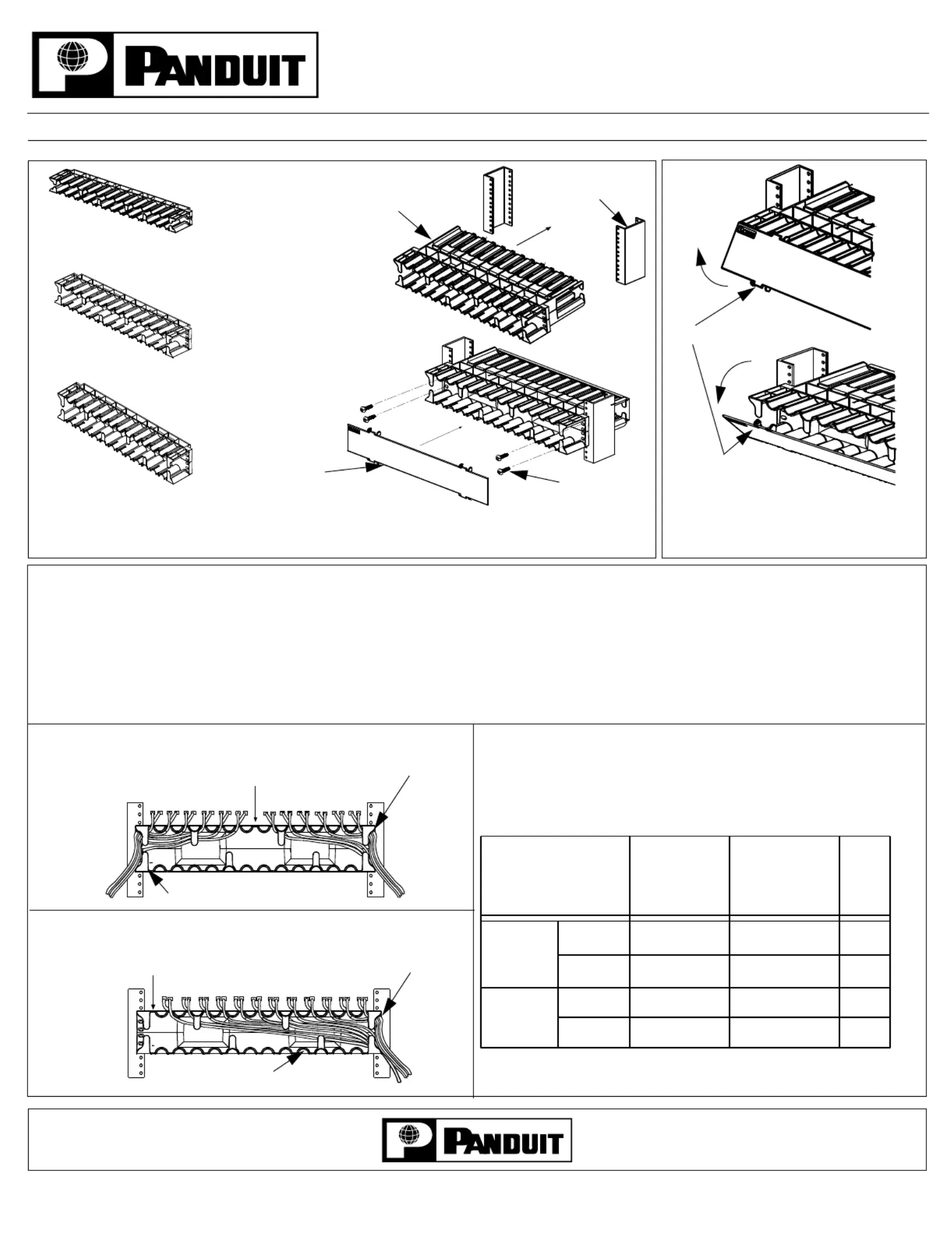

Horizontal Network Cable Managers

Part Numbers: NCMH2, NCMHF2, NCMHF1

MANAGER

UTP Cable

.187” Dia

SeTP Cable

.250” Dia

Fiber

3mm

Method 1

Method 1

Method 2

Method 2

NCMH2/

NCMHF2

NCMHF1

96

72

48

24

72

48

32

16

312

192

144

72

Tabs

The network cable manager is recommended for use with Panduit 24 or 48 port patch panels mounted above and below the manager. When

routing the cables for the patch panels, either of the following two methods are recommended to help maintain cable bend radius.

METHOD 1: For each row of 24 ports, place two cables in each slot on the manager, leaving the middle slot empty. Route half the cables

through each of the wire retainers on the ends of the manager.

METHOD 2: If the cables are coming from one side of the rack, place 2 cables in each of the slots on the manager, leaving the last slot

empty.

NOTE: When using the NCMH2 to manage cables on the rear of the rack, place 2 cables in each of the 12 slots in the rear of the manager,

for each row of 24 ports.

Empty Slot

Empty Slot

Wire Retainer

Wire

Retainer

METHOD 1

METHOD 2

12-24x1

Screws

CABLE CAPACITY

Finger

Finger

NCMH2

Cover

Install the managers to the rack with the 12-24x1 screws provided. Install the Front Cover to the

manager by positioning it flat against the front of the manager and pushing to snap in place

.

NCMHF2

NCMHF1

19” Rack

The hinged cover opens from the top or

the bottom. Pull both tabs to open and

close cover

.

NCMH2
