RVM-043ATD User Manual
Premium OEM Style 4.3” Replacement
Mirror Monitor Auto Dimmingwith
2
Thank you for purchasing Parkmate’s RVM-043ATD Premium OEM Style 4.3” Replacement
Rear View Mirror Monitor Auto Dimming. This state of the art Parkmate product is packed with
with features including a monitor embedded into the rear view mirror that automatically displays
images from the optional rear-view camera upon selecting reverse gear. Auto Dimming is a
state of the art feature that includes a sensor that gauges the amount of ambient light being
reflected in the mirror and automatically adjusts the mirror to reduce the glare from the mirror
to your eyes.
This product uses the most advanced technology and components to provide you with a long
service life and integrates perfectly with the factory look of your vehicle to add a high level of
safety and security to your driving experience.
Please note: Although this product will allow you to view blind spots, it does not remove the
responsibility of driving the vehicle from the driver. The legal responsibility and safe driving
practice remains with the driver at all times.
You have purchased this Parkmate product with the understanding that its use is as an aid
only. We highly recommend that you have this product professionally installed to ensure that it
will provide the functions it is set out to perform.
Designed to replace the original rear view mirror of your vehicle, Parkmate’s Auto Dimming
RVM-043ATD Mirror Monitor features a high resolution 4.3” LCD panel embedded into the
mirror that captures the area not visible to standard rear-view mirrors when fitted with an
optional Parkmate rear view camera.

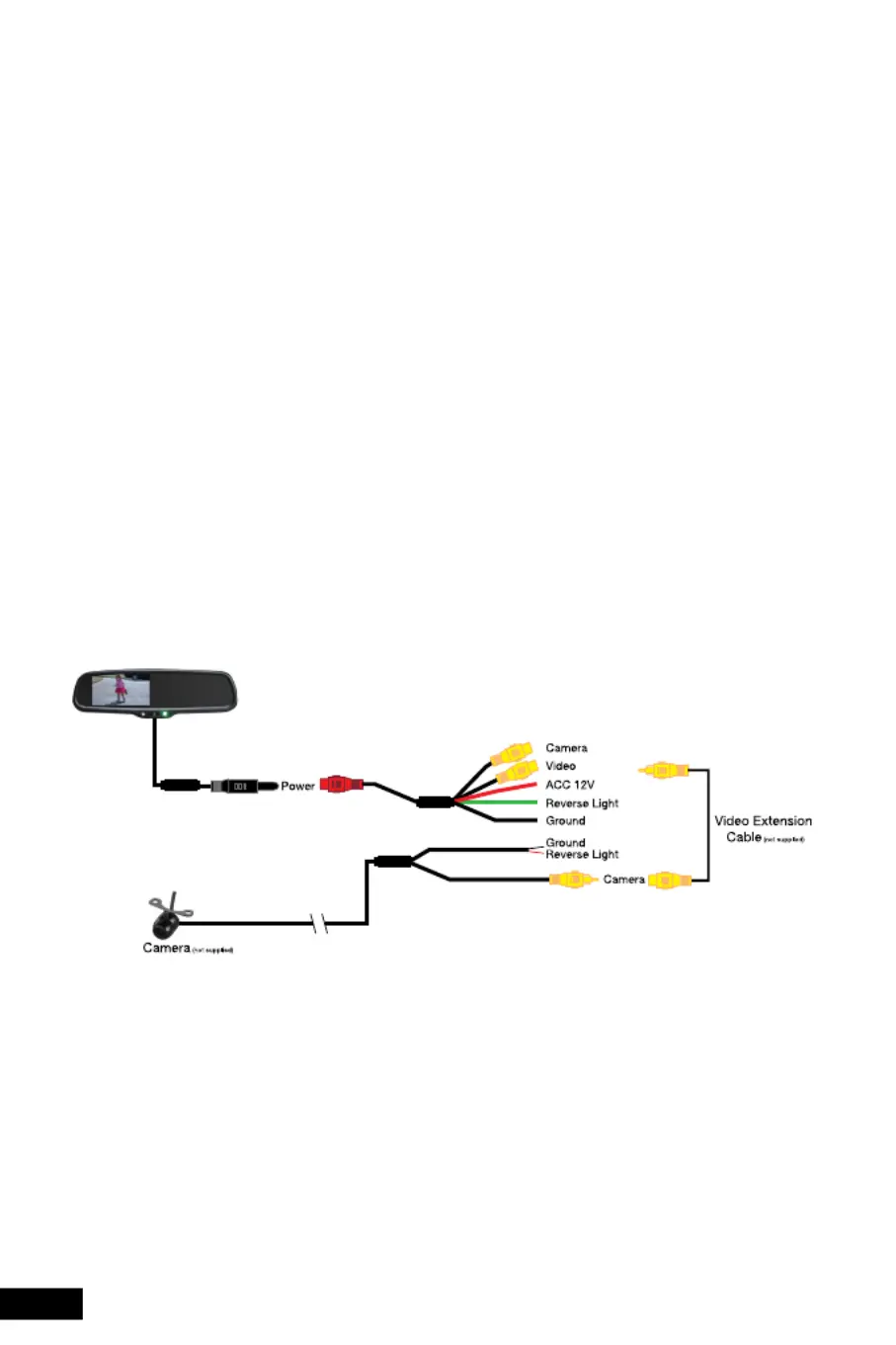

WIRING OPTIONS
Connect the Rear View Mirror Monitor to the supplied harness and the supplied harness to the
wiring of the car as instructed in the below image:
PLEASE NOTE: CAMERA IS NOT SUPPLIED. IF YOU HAVE PURCHASED A REVERSE
CAMERA PLEASE FOLLOW THE INSTALLATION INSTRUCTIONS THAT WERE SUPPLIED
WITH THE CAMERA AS THE ABOVE IMAGE IS ONLY A GUIDE.
1. When the rear view mirror is “Powered-On” and the reverse gear is engaged, the system
automatically switches from video source (i.e. if there are 2 video sources in use) to reverse
camera video. When reverse gear is disengaged the system switches back automatically.
2. When the rear view mirror is “Powered-Off” and the reverse gear is engaged, the system
automatically switches to the camera signal and displays reverse camera video. When
reverse gear is disengaged the system switches off automatically.
3
3. The button in the middle of the rear view mirror is the POWER button.
a) When reverse is engaged or when in camera mode press the POWER button to adjust
the back-light of the monitor.
b) When the monitor is in video mode, the POWER button is used to turn the monitor on
and off.
PRECAUTIONS FOR USE OF MIRROR MONITOR
1. The Mirror monitor is made of glass. Do not subject it to a mechanical shock by dropping it
from a high place, etc.
2. Do not apply excessive force to the monitor surface or to the adjoining areas as this may
cause the colour tone to vary.
3. Do not attempt to disassemble the mirror monitor. Doing so will void all warranties.
4. When cleaning the mirror monitor, spray glass cleaner directly onto a paper towel or similar
material. Do not spray glass cleaner directly onto the mirror monitor as this can result in
damage to circuitry. Clean residue with a soft dry cloth.
SAFETY
1. A rear view camera display is only a visual assistance device when reversing the vehicle.
Images displayed on the screen may be different from actual conditions. Always physically
inspect conditions and drive carefully.
2. Reverse your vehicle as slow as possible. High speeds can limit your reaction time to stop
your vehicle.
3. The displayable range of input devices including cameras can vary depending on vehicle
loads and road conditions.
4. Do not use a rear view camera system with the tailgate open.
5. Objects under or around the bumper cannot be displayed when the system is used with a
rear view camera.
SPECIFICATIONS
Screen Size
4.3”
Display Screen
TFT-LCD
Display Resolution
400(h) x 234(v)
Aspect Ratio
16:9
Power consumption
8W
Working Voltage
DC 12V
Video Input
Video-In (e.g. GPS / DVD (default) + Reverse Camera-In
Signal System
PAL / Auto / NSTC
