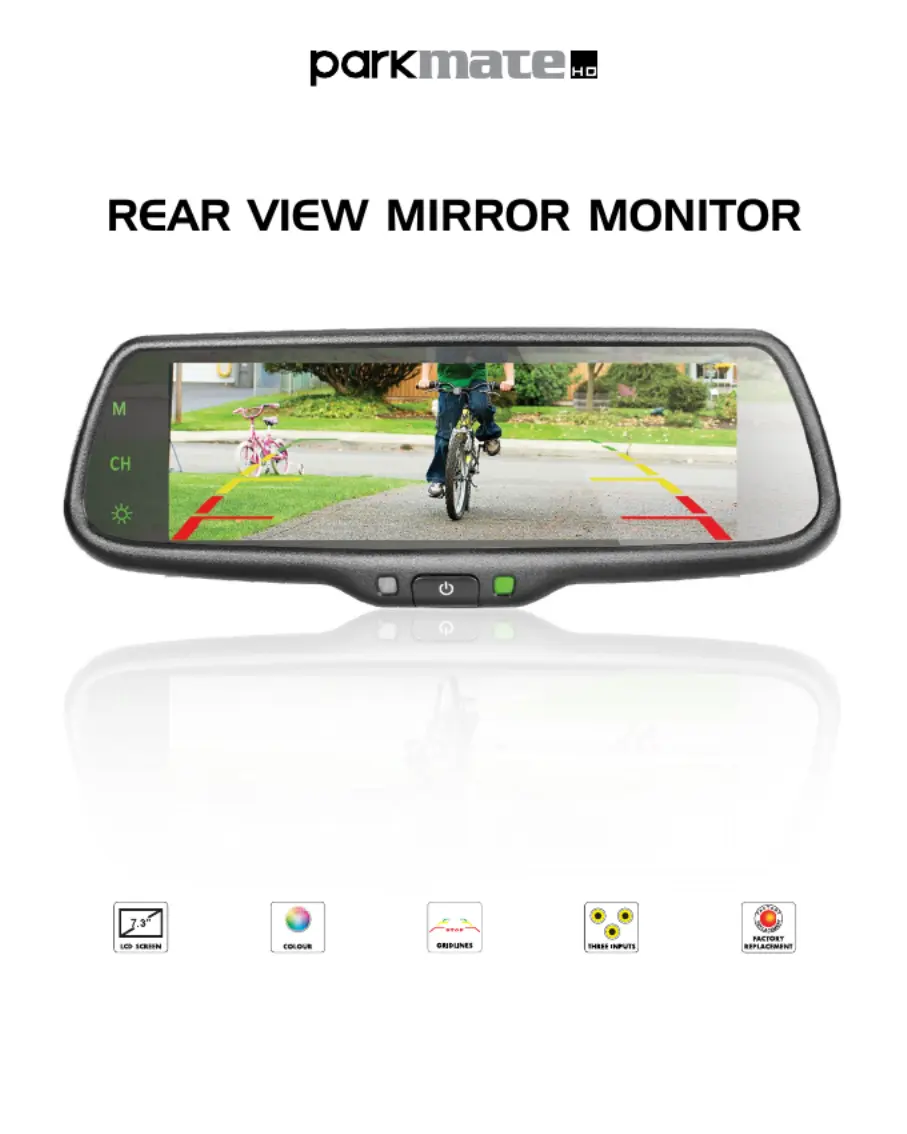

RVM-073A User Manual
7.3”SUPER WIDE LCD SCREEN
2
Thank you for purchasing the Parkmate rear view mirror monitor. This state of RVM-073A
the art Parkmate product is packed with features including a 7.3” monitor embedded into
the rear view mirror that displays the video feed from up to three installed rear or side view
cameras. This product uses the most advanced technology and components to provide
you with a long service life and integrates perfectly with the factory look of your vehicle to
add a high level of safety and security to your driving experience..
Please note: Although this product will minimise your blind spots while driving, it does not
remove the responsibility of driving the vehicle from the driver. The legal responsibility and
safe driving practice remains with the driver at all times.
You have purchased this Parkmate product with the understanding that this rear view mirror
monitor has been designed to be used as an aid only. We highly recommend that you have
this product professionally installed to ensure that all features function correctly and are
optimised for your vehicle.
Please note: The
RVM-073A does not include any rear or side view cameras. It is
recommended that the
RVM-073A is used with Parkmate brand reverse cameras. To view
the full range of Parkmate reverse cameras please visit www.parkmate.com.au or contact
your local Parkmate dealer.
SPECIFICATIONS
Screen Size
7.3"
Display Screen
TFT-LCD
Display Resolution
1280 x 390
Aspect Ratio
16:5
Working Voltage
DC 12V
Video Input
Video-In (e.g. GPS / DVD (default) + Reverse Camera-In
Signal System
PAL / Auto / NTSC
PACKAGE CONTENTS
• 7.3 inch wide LCD Display Mirror
• Wire Harness
• User’s Manual
• Cable Shield
• Connector Shield
• Remote Control
3
PRODUCT DIAGRAM
1. 11. 7.3 inch display ACC+
2. 12. Light sensor Ground
3. 13.Screen sleep button Left signal power
4. 14. Power Indicator Right signal power
5. 15.Display reverse camera output Reverse signal power
6. 16.Input select Left video input
7. 17. Colour mode select Reverse camera
8. 18. Speaker Right video input
9. 19. Input Connector shield
10. 20. Bracket Cable shield

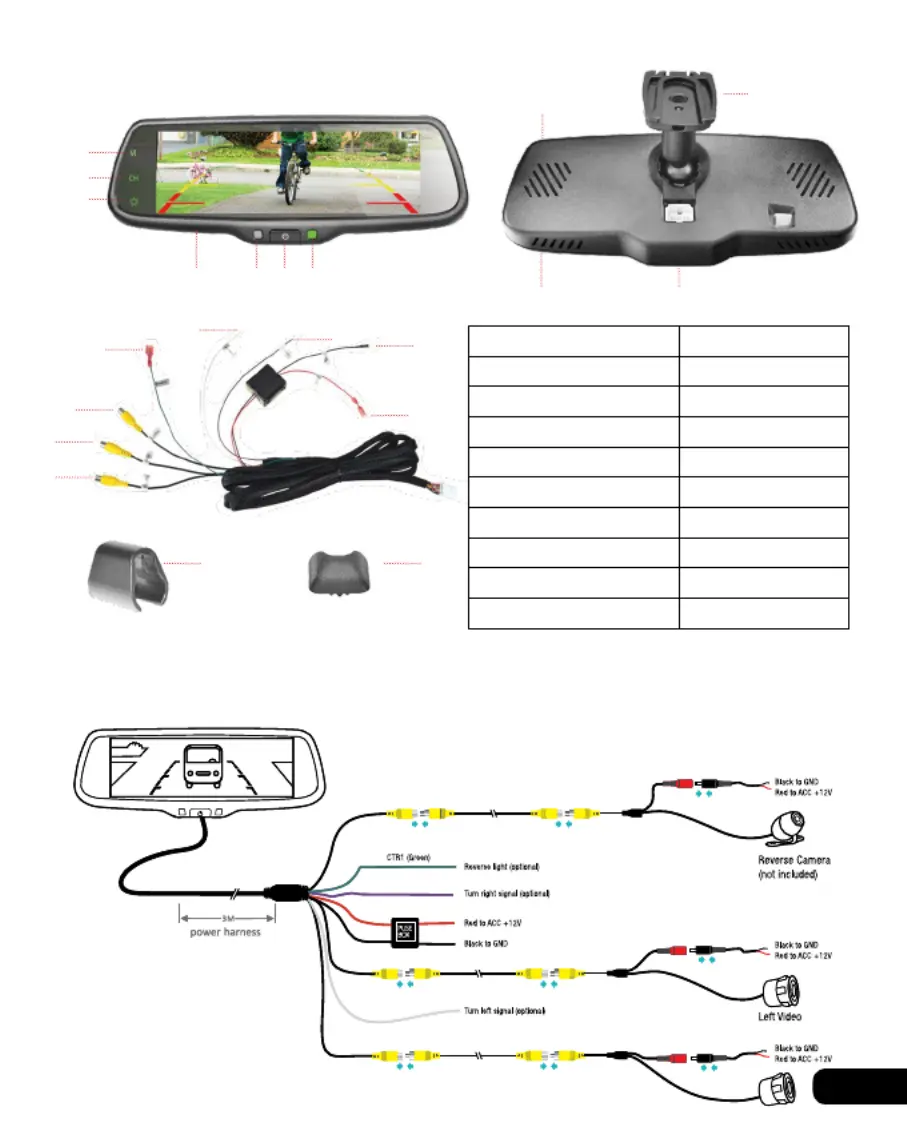

WIRING OPTIONS
To install the RVM-073A connect the Rear View Mirror Monitor to the supplied harness, then connect the
harness to the wiring of the vehicle as per the diagram below.
Please note: cameras sold separately.
5
15
14
13
12
11
19 20
16
17
18
6
7
1 2 3 4
8
8
9
10
Reverse light (optional)
CTR1 (Green)
Turn right signal (optional)
Turn left signal (optional)
Black to GND
Red to ACC +12V
Black to GND
Red to ACC +12V
Black to GND
Red to ACC +12V
Left Video
Reverse Camera
(not included)
Red to ACC +12V
Black to GND
