User manuals in various languages (français, italiano, español, português, nederlands,
türk, polski) can be found via our product search on:
www.pce-instruments.com
PCE-ISM 10ILEQ
USER MANUAL
ENGLISH
IMPULSE INTEGRATING SOUND LEVEL METER
2
The Impulse Integral Sound Level Meter is a universal sound level meter that measures the exponential
time weighted sound level, an integrated average sound level meter that can measure the time average
sound level, and an integrated sound level meter that measures sound exposure. It can also measure
Accumulated percentile sound level (statistical sound level). Its performance is in accordance with GB/T
3785-2010 standard level 2 And IEC 61672:2013 Class 2 sound level meter requirements. It also meets the
JJG 188-2017 standard.
Microphone: 12.7mm (1/2‘) test condenser microphoneΦ
Frequency weighting: A, C, and Lin(Linear)
Measurement range: 25dB ... 130dB (A)
Range control: manual, three gears, linear range > 60dB
Measurement ranges:
30dB ... 90dB (dynamic scale display 10 ... 100)
50dB ... 110dB (dynamic scale display 30 ... 120)
70dB ... 130dB (dynamic scale display 50 ... 140)
Accuracy: in accordance with IEC61672 standard, class 2
Time weighting: Fast (F), Slow (S), Impulse (I)
Display: large screen dynamic LCD, instantaneous sound level, with analog
ammeter display.
The output interface: AC signal output
USB data cable output
Calibration: use class 1 sound level calibrator
Power Supply: 4 x 1.5 V AAA (UM-4) Battery
External power supply: 6V
Weight: 185g (Not Including Batteries)
Dimensions: 227x63x26 mm
Operating Condition: Temperature: -10 ... 50°C
With the function of integration and statistics, 800 groups of single measurement and 6 days of regular
measurement can be achieved. The stored data can be read and printed. The collected data can be checked
when the regular measurement is paused.
»The three time weighting F, S, and I measurements can be selected.
»The digital detection technology is used to replace some traditional sound level meters, the stability and
reliability are greatly improved.
»Large screen display is adopted, with clear and intuitive display. With dynamic scale display.
»It can be connected with computer through USB interface or Bluetooth adapter, and measurement data
can be sent to general computer for analysis and processing.
»Optional Bluetooth printer for measurement data printing.
OVERVIEW
TECHNICAL PERFORMANCE
FUNCTIONS AND FEATURES
3
See Figure 1 for the outline of sound level meter. The test condenser microphone and preamplier should
be installed in the head of the main unit during normal operation. The shape is tapered to reduce acoustic
reection. The case is made of ABS injection molding, and the battery is installed in the battery box. The
battery can be easily replaced by removing the back cover plate of the meter. The measurement results are
displayed by large screen LCD. The frequency weighting, time weighting and range switch are are located
in the front middle of the sound level meter. The sensitivity potentiometer, data cable interface, output port
and power interface are located on the right side of the meter.
Function description of each key on the panel:
WEIGHTING: Frequency weighting selection key, press the key to select A, C, and Lin.
UP/HOLD: Up key, hold key. Press to enter hold mode during normal measurement, exit to normal
measurement in hold state. In case of multiple choices, move up or increase.
FAST/SLOW: Time weighting selection key, press the key to select F, S and I.
RESET: System reset key for system reset and data area reset.
OUTPUT: Output selection key, press the key to select display output, printer output and computer
output.
RUN/PAUSE: Operation control and screen option conrmation key. Run and pause control during Leq
measurement. In case of multiple choices, make option conrmations.
MODE: Working mode selection key, press the key to select Leq measurement,
1/1 lter measurement and 1/3 lter measurement.
STRUCTURE AND FUNCTION

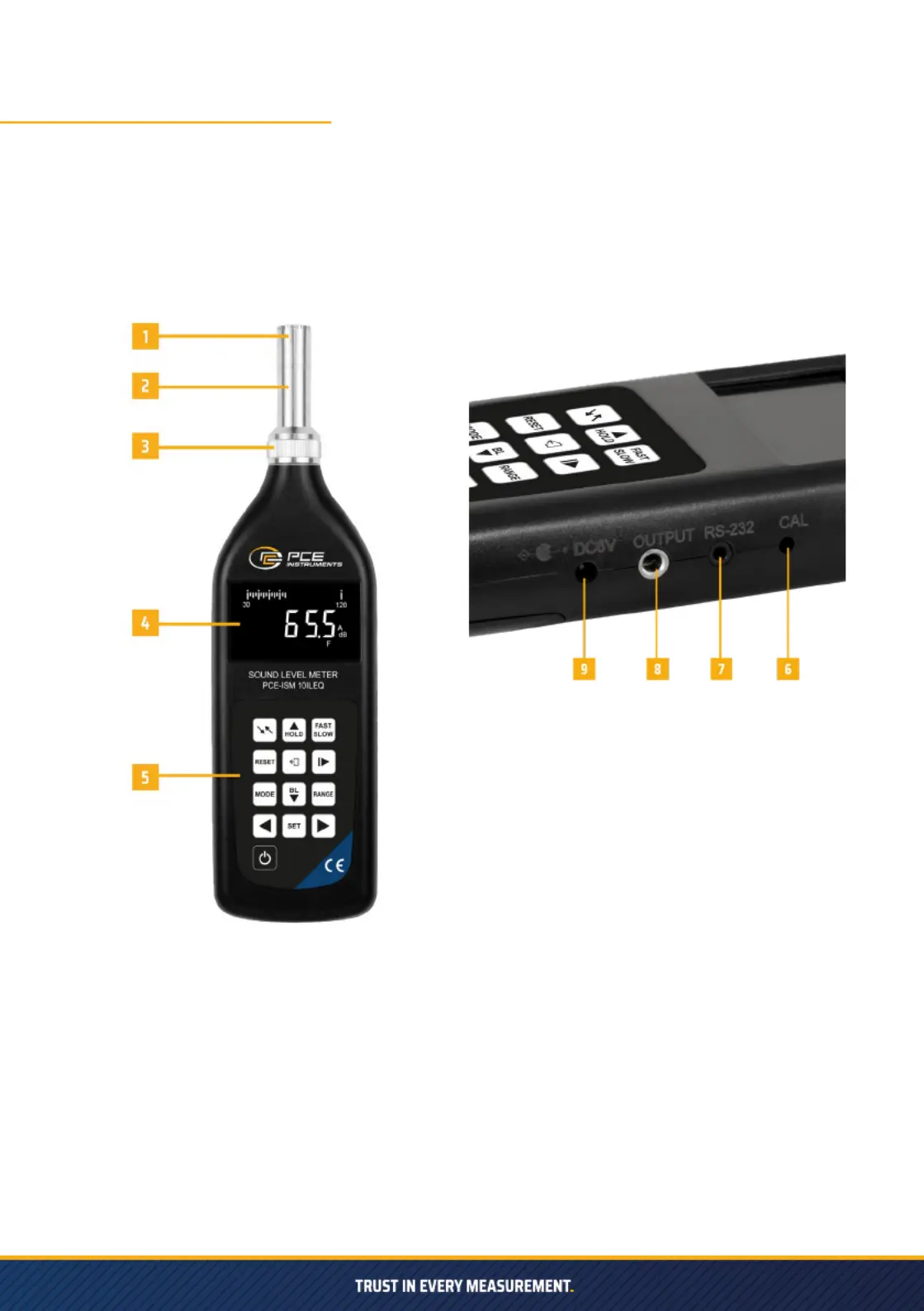

1 - Microphone
2 - Preamplier
3 - Lock nut
4 - LCD screen
5 - Panel buttons
6 - Sensitivity calibration potentiometer
7 - Data cable interface
8 - AC output port
9 - Power input
Fig. 1
