Seite 1/7
User manuals in various languages (français, italiano, español, português, nederlands,
türk, polski) can be found via our product search on:
www.pce-instruments.com

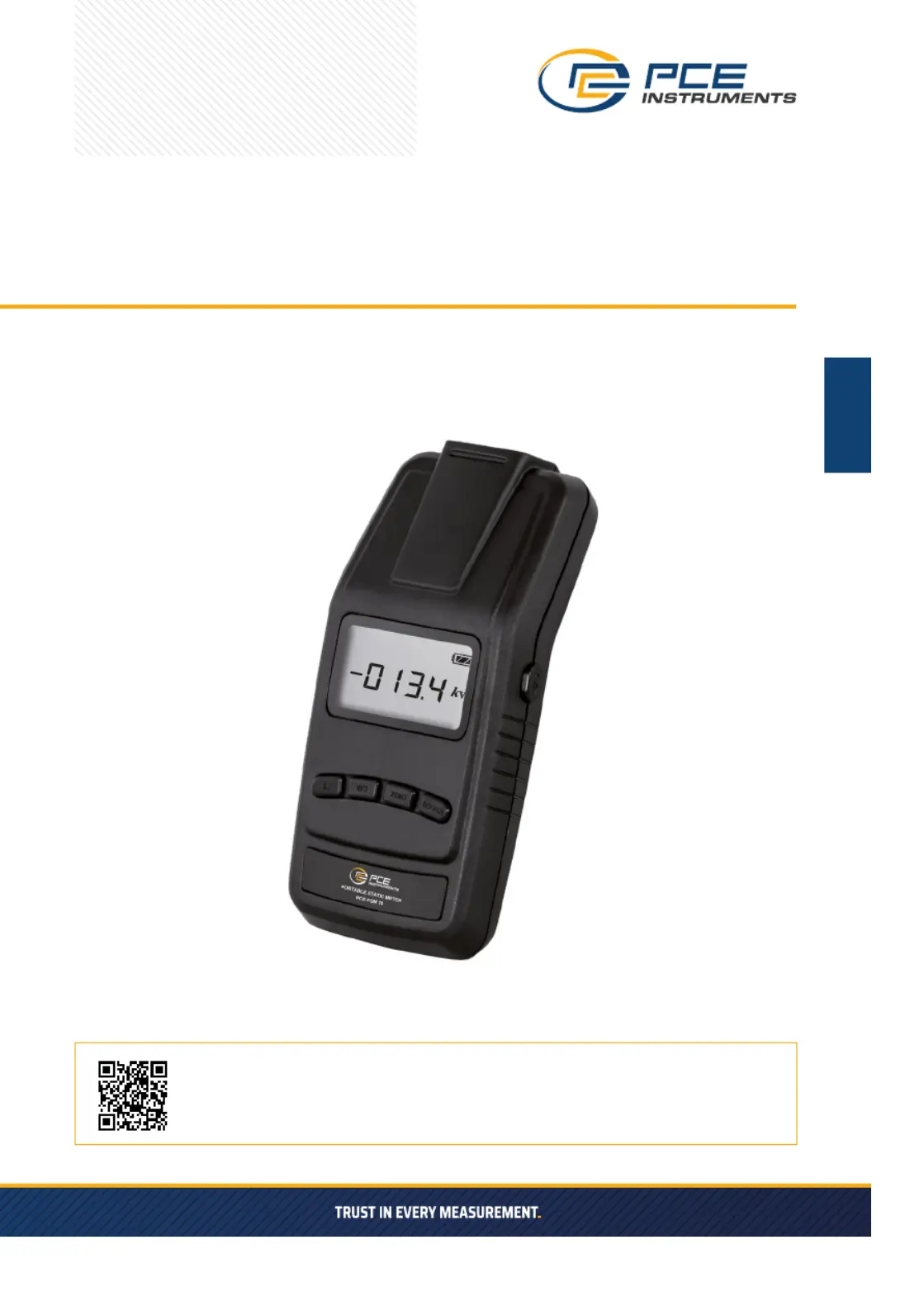

PCE-PSM 10
USER MANUAL
ENGLISH
ELECTROSTATIC METER
2
Calibration conditions
»Ambient temperature: 20°C ±3°C.
»Relative humidity: 40 ... 45%RH.
»No measurable electric eld, magnetic eld, positive and negative ions around.
»With ground wire, ground wire resistance <1Ω.
CALIBRATION
Explosion-proof Static Meter
Explosion-proof grade:Ex ib T5 GbIIB
This product can be used in ammable and explosive working places corresponding to IIB or lower level
with this safe explosion-proof function.
Can detect static electricity on the surface of any object.
Application eld:
»Film Industry
»Textile Industry
»Coating Industry
»Printing Industry
»Injection molding Industry
»Electronics Industry
»Chemical Industry
»Medical Industry and etc.
Wide detection range
It can perform not only high-precision measurement with a minimum display unit of 0.001kv, but also
measurement on strongly charged workpieces of ±200 kV, thus meeting a wide range of needs.
High detection accuracy
High-precision mode with accuracy ±10%.
Accurate detection distance
The detection distance is 25mm±1.0mm.
Convenience
Small & light, comfortable button and easy to operate.
USE IN FLAMMABLE AND EXPLOSIVE ENVIRONMENT
DUAL LED PRECISE POSITIONING & ACCURATE DETECTION DISTANCE
3
Requirements to equipment or devices as follows:
C Calibrated product: PCE-PSM 10
D1 DC high voltage power supply: output range -30KV ... +30KV, continuously adjustable,
or minimum step 1V measurement uncertainty less than 1/4 of the allowable error limit of the
calibration table;
D2 DC high voltage meter: measuring range -40KV ... +40KV,
measurement uncertainty less than 1/4 of the allowable error limit of the calibration table;
D3 Standard plate electrode: The plate electrode should be round or square with rounded corner.
The radius of curvature of the edge of the electrode should not cause corona. It is recommended
to wrap the edge of the electrode with insulating material; the area of the plate should be large
enough. The diameter or side length should be no less than 0.4m.
Our calibration plate is stainless steel size 600mm*600mm square.
Protection resistance: The resistance of the resistor should be >20KV, the protection current and the
current of the human body are <5mA, and the resistance value meets the requirements of the following
formula: R/(R+R
d
) < 0.1 %
Where: for protection of resistance, the unit is ohm (Ω);
The resistance of the insulating bracket is in ohms (Ω), the resistance is >1013Ω, and the compressive
strength is >25KV. The above two resistors, their dierent resistance values, may cause the detected static
voltage values to be dierent under the same standard voltage.
S1 Insulated bracket
S2 Scale, measuring range: 5mm ... 700mm, measurement uncertainty less than 0.5mm
S3 Distance adjuster: Place the test meter on the calibration device. The front end of the test chart
should be extended. The geometry and material of the support should be minimized to aect
the electric eld distribution around the front end of the test chart.
Calibration equipment
The instruments and equipment used for calibration must be calibrated by the measurement technical
institution to meet the calibration requirements and be within the validity period.
The calibration equipment mainly includes: DC high-voltage meter, DC high-voltage power supply, standard
at electrode, distance regulator, etc. The test meter is located on the center line of the calibration plate.

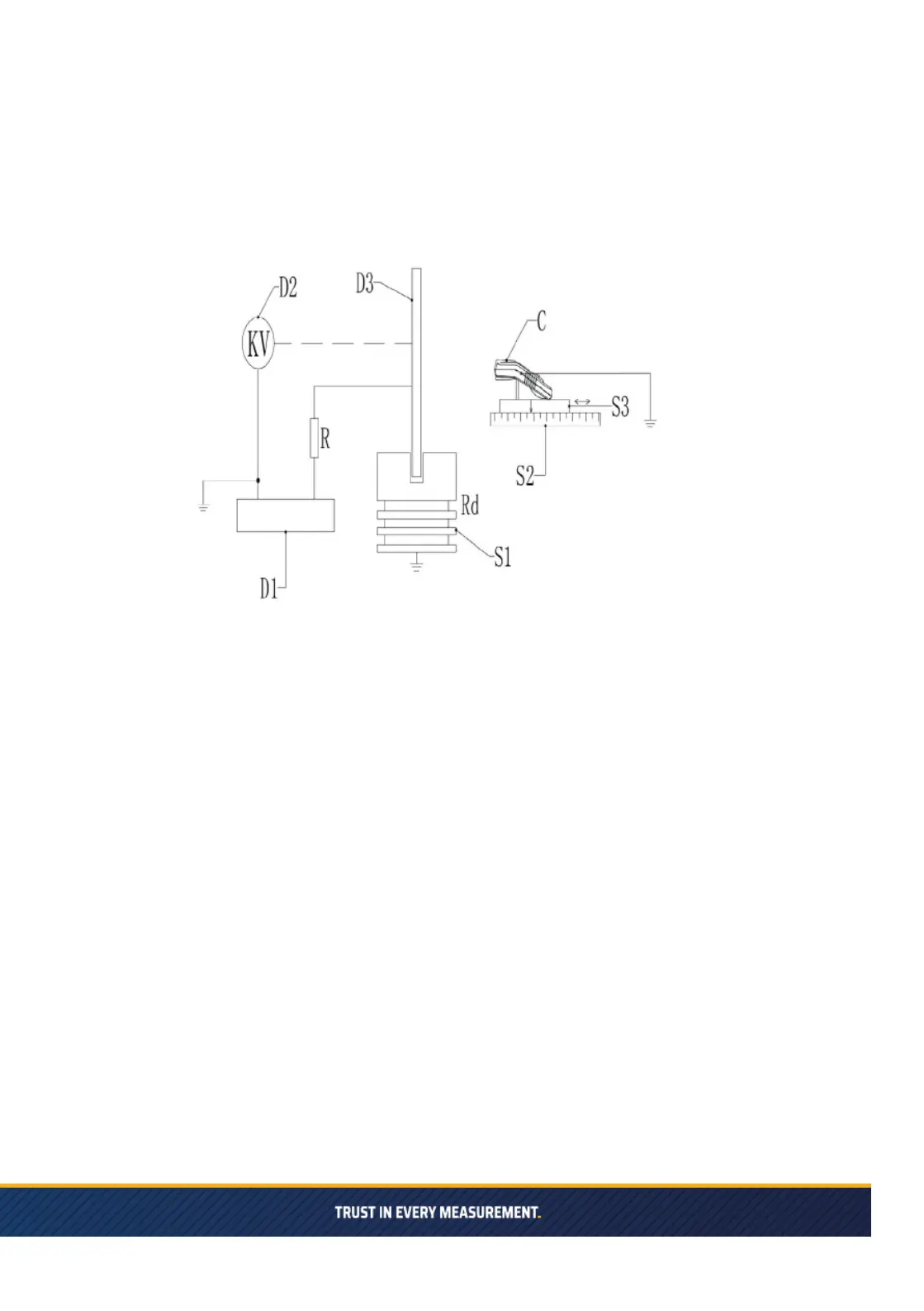

The block diagram of the noncontact electrostatic voltmeter calibration device is as follows:
DC high voltage meter
Standard at electrode
Static Meter
Distance adjuster
Scale
Insulation bracket
Protection resistance
DC high voltage power supply
