Installation manual CA-R-FIA.004 | Version 1.0

EN - Installation Manual

CA-R-FIA.004

Steering Wheel Control Interface

for Fiat Ducato (2015 - ...)

Allows for the upgrade of the factory stereo to a

Pioneer stereo, whilst retaining factory steering wheel

control functionality and phone buttons

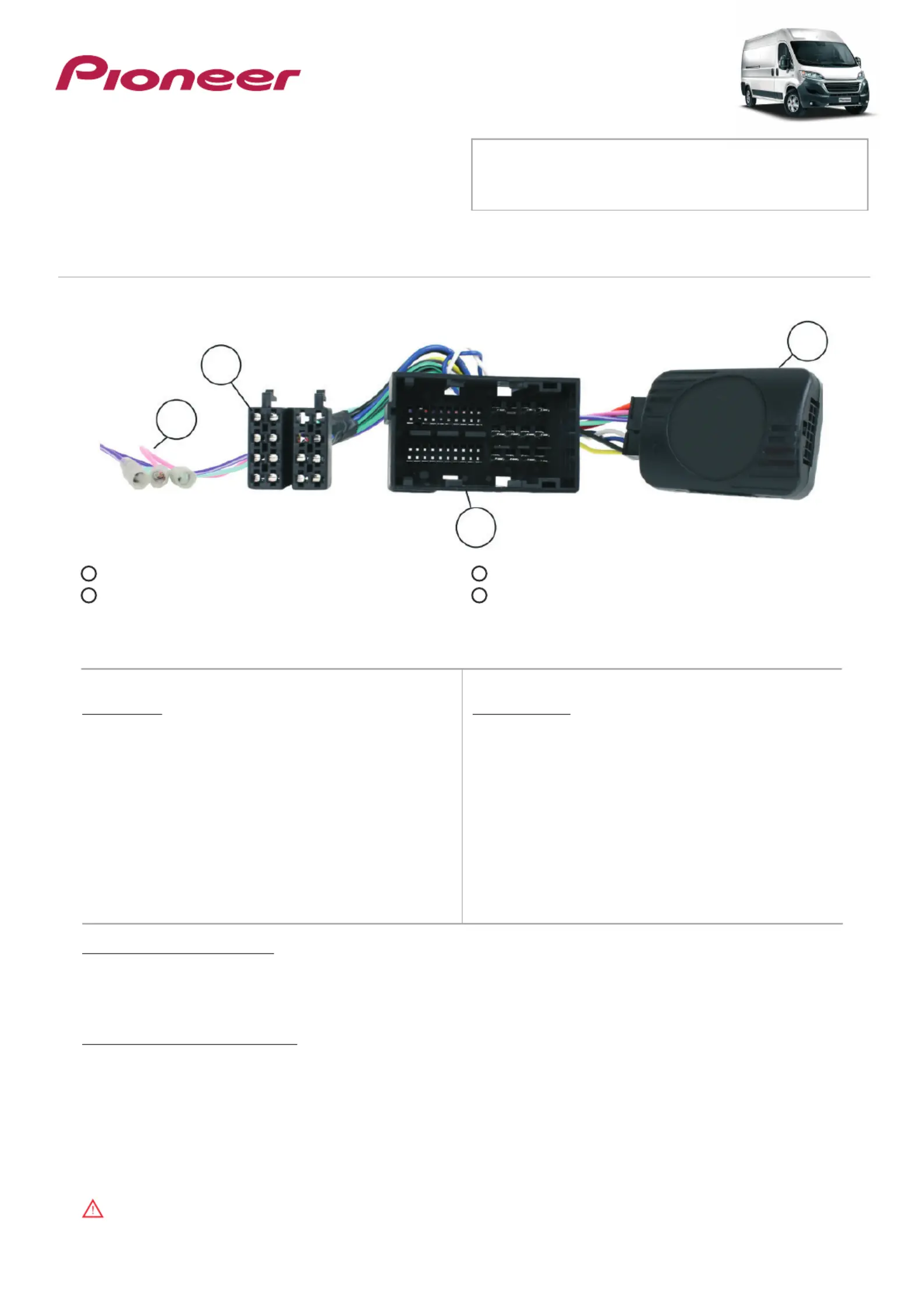

IV

II

III

I

I

Interface Box

II

Male ISO Connector (16 Pin)

III

Fiat Vehicle Connector

IV

Flying Wires*

*(Green - Park Brake / Pink - Speed Pulse / Purple & White - Reverse Gear)

FEATURES

• Retains Factory Steering Wheel Control Functionality

(if vehicle is equipped)

• Retains Phone Button Functionality

(if vehicle is equipped)

• Provides Park Brake, Speed Pulse & Reverse Gear Outputs

PRIOR TO INSTALLATION

Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of

moisture and away from heat sources. Please ensure that the correct tools are using during the installation to avoid damage to the vehicle or

product. Pioneer can not be held responsible for the installation of this product.

Setting the Interface Dipswitches

Prior to installation, the circuit board dipswitches must be set to ensure correct operation of the product.

To do this, remove the interface box casing and set the dipswitches as follows:

Dipswitch 1 - Set to ‘ON’ for vehicles with 250VP1 factory stereo, otherwise set to ‘OFF’

Dipswitch 2 - Set to ‘ON’ for vehicles with 250VP2 factory stereo, otherwise set to ‘OFF’

Dipswitch 3 - Set to ‘ON’ for vehicles with factory Blue&Me system, otherwise set to ‘OFF’

Dipswitch 4 - Must be set to ‘ON’

: Only change dipswitch positions when interface is disconnected from the vehicle.

DISCLAIMER

The information provided in this document is subject to change

without notice due to manufacturer changes and/or improve-

ments to the product/s. This instruction manual is based on

documented data and research. The manufacturer of this prod-

uct cannot be held responsible for any changes made to the vehi-

cle by the manufacturer or damages that may occur through the

installation of this product in accordance with the steps outlined

herein.
