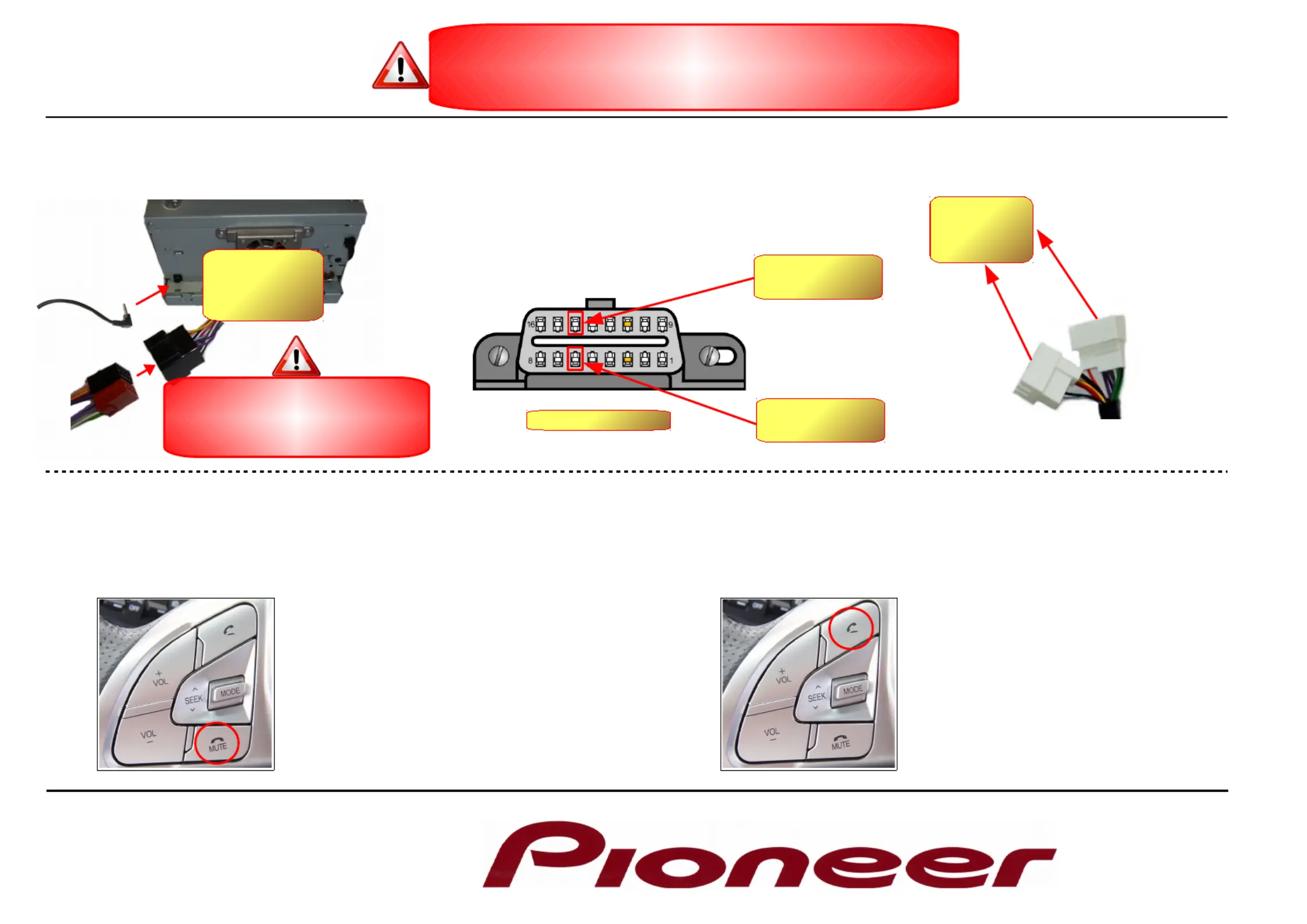

Installation Manual

Ssangyong Tivoli SWC

*IF SUPPORTED BY THE RADIO

Installation must be performed by a qualified professional installer only, with appropriate equipment. The manufacturer is not liable for any kind of incidental or indirect damages.

07/2015 All rights reserved. No liability for misprints

3 Plug-in all connections. Verify the

proper functioning of the system.

2 Connect the grey-red (CAN-H) and the

grey-blue (CAN-L) cables to the vehicle's

OBD connector (which is located under the

steering wheel, follow the numbers on the

connector for connecting wires).

1) If you the MUTE BUTTON, the function will be:long press

HOOK ON*.

If you the MUTE BUTTON, the function will be:short press

MUTE*.

1 Remove the original head unit. Connect the

ISO to the radio harness, the SWC Jack, and

all other needed connectors.

2) If you the TEL BUTTON, the function will be: long press

SPEECH*.

If you the TEL BUTTON, the function will be: short press

HOOK OFF*.

DOCUMENTS TO BE ATTACHED TO THE CUSTOMER'S VEHICLE -- STEERING WHEELINSTRUCTION

RADIO

HARNESS

CAR

HARNESS

PIN 6 → CAN-H

(Grey/Red)

PIN 14 → CAN-L

(Grey/Blue)

OBD CONNECTOR

CONNECTOR'S FRONT VIEW

In order to prevent ESD damage, the

SWC Jack must be connected before

plugging the connectors on car side

(see point 3)

BEFORE INSTALLING THE KIT, PLEASE CAREFULLY

CHECK WHICH WIRING HARNESS IS REQUIRED BY

YOUR CAR AMONG THOSE SUPPLIED.

CA-R-SST.00C
