Planet GSD-603F Bedienungsanleitung

Planet Schalter GSD-603F

Lies die bedienungsanleitung für Planet GSD-603F (2 Seiten) kostenlos online; sie gehört zur Kategorie Schalter. Dieses Handbuch wurde von 5 Personen als hilfreich bewertet und erhielt im Schnitt 4.9 Sterne aus 3 Bewertungen. Hast du eine Frage zu Planet GSD-603F oder möchtest du andere Nutzer dieses Produkts befragen? Stelle eine Frage

Download PDF

Seite 1/2

- 1 -

- 2 -

- 3 -

- 4 -

- 5 -

- 6 -

- 7 -

- 8 -

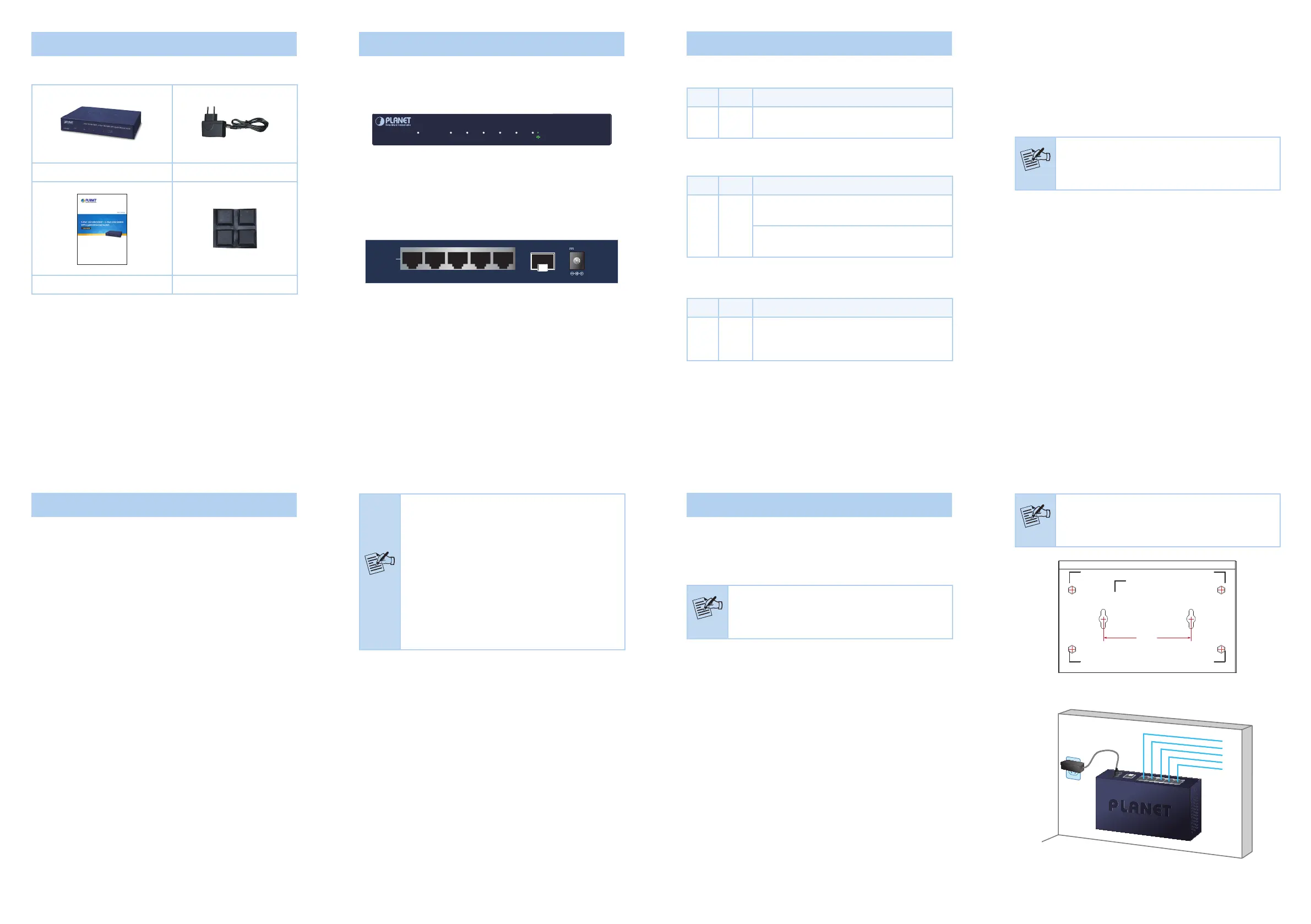

1. Package Contents

Check the contents of your package for the following parts:

Gigabit Ethernet Switch x 1 AC Adapter x 1

User’s Manual x 1 Rubber Feet x 4

If any of these are missing or damaged, please contact

your dealer immediately; if possible, retain the carton

including the original packing material, and use them again

to repack the product in case there is a need to return it to

us for repair.

In the following sections, the term “Gigabit Ethernet

Switch” means the GSD-603F.

3. Hardware Introduction

3.1 Switch Front Panel

Figure 3-1 shows the front panel of GSD-603F.

PWR SFP 1 2 3 4 5

ACT

LNK

GSD-603F

5-Port 10/100/1000T +1-Port 100/1000X SFP Gigabit Ethernet Switch

Figure 3-1: GSD-603F Front Panel

3.2 Switch Rear Panel

Figure 3-2 shows the rear panel of GSD-603F.

12345

10/100/1000T

, 1A max.

SFP

100/1000X

Figure 3-2: GSD-603F Rear Panel

Step 4: Connect your Gigabit Ethernet Switch to network

devices.

A. Connect one end of a standard network cable

to the 10/100/1000Mbps RJ45 ports on the

back of the Gigabit Ethernet Switch.

B. Connect the other end of the cable to the

network devices such as printer servers,

workstations, routers, etc.

Note

Connection to the Gigabit Ethernet Switch

requires UTP Category 5 network cabling with

RJ45 tip.

Step 5: Supply power to the Gigabit Ethernet Switch.

A. Connect one end of the power cable to the

Gigabit Ethernet Switch.

B. Connect the power plug of the power cable to

a standard wall outlet.

When the Gigabit Ethernet Switch receives power, the

Power LED should remain solid Green.

Wall-mount Installation

Step 1: PleasendthewallthatcanmounttheGSD-603F.

Step 2: Screw two screws on the wall.

Step 3: Hang the GSD-603F on the screws from the wall.

Step 4: Repeat Step 5 of Desktop Installation for power

supply to the GSD-603F.

4. LED Indicators

System

LED Color Function

PWR Green

Lights to indicate that the Switch has

power.

Per 10/100/1000BASE-T RJ45 Port (Port 1 ~ Port 5)

LED Color Function

LNK/

ACT

Green

Lights to indicate the link through that port

is successfully established.

Blinks to indicate that the Switch is actively

sending or receiving data over that port.

100/1000BASE-X SFP Port

LED Color Function

LNK/

ACT

Green

Lights to indicate that the Switch is

successfully connecting to the network at

100/1000Mbps.

2. Product Features

Physical

¾Five 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

¾One 100/1000BASE-X SFP Slot

Layer 2 Features

¾Features Store-and-Forward mode with wire-speed

lteringandforwardingrates

¾IEEE 802.3x, full-duplex ow control compliant; back-

pressure,half-duplexowcontrol

¾Integrated address look-up engine, supporting 2K abso-

lute MAC addresses

¾1.5Mbiton-chipframebuer

¾9K jumbo packet

¾Power saving ability for Green networking

Hardware Features

¾DC 5V, 1A external power

¾Compact size, wall-mountable design

¾Metal case, good for heat dissipation

¾Easy installation; ideal solution for space-limited locations

Power

Note

1. The device is a power-required device,

meaning it will not work till it is powered.

If your network remains to be active

all the time, please consider using UPS

(Uninterrupted Power Supply) for your device.

It will prevent you from network data loss or

network downtime.

2. In some areas, installing a surge suppression

device may also help to protect your Switch

from being damaged by unregulated surge or

current to the Switch or the power adapter.

5. Installing the Switch

This part describes how to install your Gigabit Ethernet

Switch and make connections to it. Please read the

following topics and perform the procedures in the order

being presented.

Note

This Gigabit Ethernet Switch does not need

software configuration.

Desktop Installation

To install the Gigabit Ethernet Switch on desktop, simply

follow the steps below:

Step 1: Attach the rubber feet to the recessed areas on

the bottom of the Gigabit Ethernet Switch.

Step 2: Place the Gigabit Ethernet Switch on desktop near

an DC power source.

Step 3: Keep enough ventilation space between the

Gigabit Ethernet Switch and the surrounding

objects.

Note

Before mounting the device to the wall, please

check the location of the electrical outlet and

the length of the Ethernet cable.

800 mm

GSD-603F Switch Bottom Side

12345

10/100/1000T

5V DC

SFP

1000X

RJ45 UTP Cable

Produktspezifikationen

Marke:	Planet
Kategorie:	Schalter
Modell:	GSD-603F
Breite:	162 mm
Tiefe:	102 mm
Gewicht:	398 g
Produktfarbe:	Schwarz
Höhe:	28 mm
DC input Spannung:	5 V
Betriebstemperatur:	0 - 50 °C
Relative Luftfeuchtigkeit in Betrieb:	10 - 90 %
Netzstandard:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Vollduplex:	Ja
Power over Ethernet (PoE):	Nein
Warentarifnummer (HS):	85176990
Stromverbrauch (max.):	4.1 W
Gehäusematerial:	Metall
Temperaturbereich bei Lagerung:	-40 - 70 °C
Luftfeuchtigkeit bei Lagerung:	5 - 90 %
Switch-Typ:	Unmanaged
Anzahl der basisschaltenden RJ-45 Ethernet Ports:	5
Basic Switching RJ-45 Ethernet Ports-Typ:	Gigabit Ethernet (10/100/1000)
Auto MDI/MDI-X:	Ja
10G-Unterstützung:	Nein
Kupfer Ethernet Verkabelungstechnologie:	1000BASE-T
MAC-Adressentabelle:	2000 Eintragungen
Routing-/Switching-Kapazität:	12 Gbit/s
Durchgang:	8.9 Mpps
Jumbo Frames Unterstützung:	Ja
Rack-Einbau:	Ja
Eingangsstrom:	1 A
Wandmontage:	Ja
Store-and-Forward:	Ja
Stapelbar:	Ja
Unterstützung Datenflusssteuerung:	Ja
Jumbo-Frames:	9000
Wärmeableitung:	13.99 BTU/h
Menge SFP-Modul-Steckplätze:	1
Halb-Duplex:	Ja
