This washing machine is equipped with automatic safety

functions which detect and diagnose at an early stage

and react appropriately.

A. Program selector

B. Program and function status display window

C. “Temp.” button

D. “Spin” button

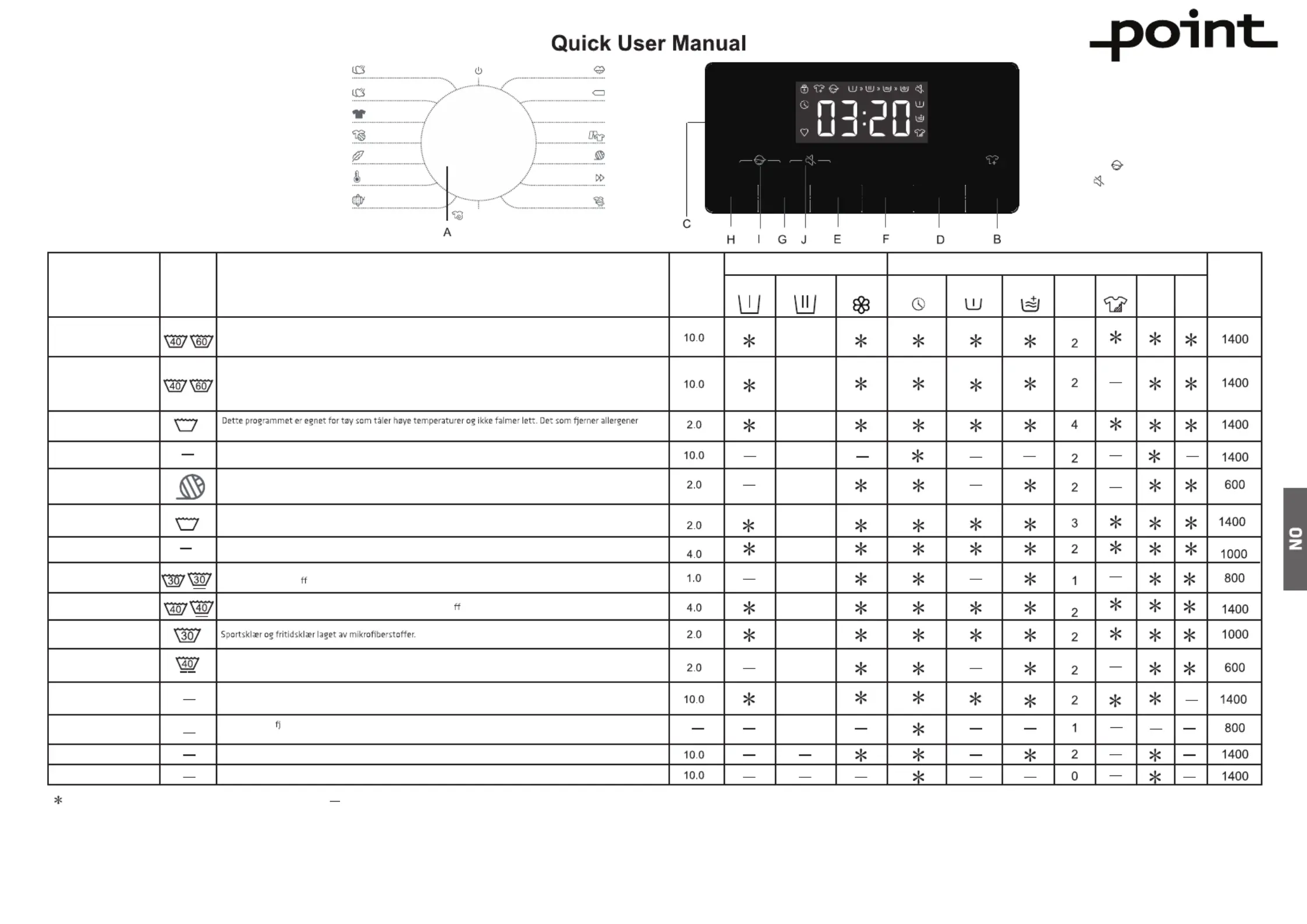

Quick User Manual

: Optional Functions Yes: Detergent Required : Cannot be selected : Temperature of unheated water

(1) Wash performance test programs are: Eco 40-60.

(2) Allergy Steam and Baby Steam Care both suitable to sterilize the colorfast clothes, When you see the door glass with water mist, please don't put your hand on the door glass or open the dispenser to prevent bums.are

Program Care Label

Material / Level of Soiling

Washing temperature selected as per the Care Label instruction.

Maximum

Wash Load

Detergent Compartment Wash Program Functions

Maximum

spin speed

rpm

Prewash

Main wash Softener Delay End Prewash Extra rinse Default

rinse

times

Intensive Spin Temp.

Cotton

--, 20°C, 30°C, 40°C, 60°C,

95°C

Heavily and moderately soiled cotton, or linen.

For very heavily soiled items select the "Prewash" function.,

10.0

Yes 2

1400

Cotton Color

--, 20°C, 30°C, 40°C, 60°C

Programme for lightly to moderately dirty laundry. The temperature can be set separately; therefore,

observe the instructions indicated on the clothing. Wash the clothes worn directly on the skin at 60°C.

Less heavily soiled laundry will be thoroughly cleaned at 40°C. Spinning speed can also be freely selected.

Default setting is maximum spinning speed.

10.0

Yes 2

1400

Allergy Steam (2)

40°C, 60°C

It is suitable for high temperature resistant and less fading fabrics, which removes allergens such as

pollens, mites and parasites through high temperature steam.

2.0

Yes 4

1400

Eco 40-60 (1) Normally soiled cotton laundry.

10.0

Yes 2

1400

Wool

--, 20°C, 30°C, 40°C

Machine washable wool. (Refer to the washing label attached to the clothing).

2.0

Yes 2

600

Baby Steam Care (2)

40°C, 60°C, 95°C

It is suitable for baby clothes and underwear, etc., which sterilizes and disinfects through high

temperature steam.

2.0

Yes 3

1400

Dark Wash

--, 20°C, 30°C, 40°C, 60°C

Dark textiles made of cotton and dark easy-care textiles.

4.0

Yes 2

1000

Quick 15'

--, 20°C, 30°C, 40°C

Cotton, mixed fabrics. Items worn for a short time or newly bought.

1.0

Yes 1

800

Mix

--, 20°C, 30°C, 40°C

Mixed loads of moderately soiled cotton and synthetic fabrics.

4.0

Yes 2

1400

Sportswear

--, 20°C, 30°C, 40°C

Sportswear and leisure wear made from microfibre fabrics.

2.0

Yes 2

1000

Down

--, 20°C, 30°C, 40°C

Machine-washable items stuffed with synthetic fibres, such as pillows, quilts and bedspreads; also

suitable for items stuffed with down.

2.0

Yes 2

600

20°C This program is suitable for cotton clothes with light stains, energy saving.

10.0

Yes 2

1400

Drum Clean

95°C

Program to remove dirt and bacterial residue that can breed in the machine after it has been used for a

period, especially when low temperature washes are used regularly.

Yes 1

800

Rinse + Spin This program is defaulted to two rinses and spin.

10.0

1400

Spin

Select the length and speed of the spin manually.

10.0

1400

E. “Favourite” button

F. “Options” button

G. “Delay End” button

H. “Start/Pause” button

I. Child Lock Function

J. Mute Function

POWM5A1014

Baby Steam Care

Dark Wash

Down

Sportswear

20°C

Drum Clean

Cotton

Cotton Color

Eco 40-60

Mix

Wool

Quick 15’

Rinse+Spin

Spin

Allergy Steam

PARAMETER

Model POWM5A1014

Washing Capacity 10.0kg

Max. spin speed 1400 rpm

Net Weight 67 kg

Dimension (W×D×H) 595 × 610 × 845 mm

Rated Voltage 220-240V

Heating Power 1500W

Washing Power 250W

Add Detergent, Close the Door and Set the Program

Load the clothes to be washed in the drum and close the door.

Add the detergent into the relevant compartments for the type

of program you are going to select dd detergent as described .A

in section of .Detergent and Additives User’s Operation Manual

1. Turn on the power.

2. Spin program selection button to required program, “off” must

be passed through if pointer’s initial position is not “off”, start

up.

Select washing temperature spin speed by pressing and

“Temp” “Spin” buttons. and

4. Press “Options” button to select additional functions.

5. After starting the program, display window displays program

length (hours: minutes) and additional function options in

sequence.

Addition function selection

At standby state, press “Options” button to select additional

function for current program. Select only one function for each

press, and then corresponding icon flashes. After starting up,

program cannot be changed.

Pre-wash

Select the function to conduct pre-wash so as to enhance

washing effects and better remove stains. This function is suitable

for heavy dirt clothes.

Before inflowing, laundry detergent/washing powder can be

added to pre-wash box, and washing powder must be added to

main wash box.

Extra Rinse

After set the function of rinsing adding, the program runs the

rinsing process once again before running the softening, and the

total running time of the program increases accordingly.

Intensive

The function can be selected to prolong washing time,

strengthen washing effects and .remove stain better

Inlet water warning

If tap is not opened, or water pressure is low, display screen too

will prompt “F01” to give alarm.

Drainage warning

If the pipe is squeezed, drainage will not be smooth. In case

of failing to completely drain for long time, display screen will

prompt “F03” to give alarm.

Programme Instructions

1. The eco 40-60 programme is able to clean normally soiled cotton

laundry declared to be washable about 40 °C to 60 °C, together

in the same cycle, and that this programme is used to assess the

compliance with the EU ecodesign legislation.

The power consumption of the off-mode is 0.49W, and the left-

on mode is 0.49W.

3. The most efficient programmes in terms of energy consumption

are generally those that perform at lower temperatures and

longer duration.

4. Loading the household washing machine up to the capacity

indicated by the manufacturer for the respective programmes will

contribute to energy and water savings.

5. Correct use of detergent, softeners and other additives. Do not

apply excessive detergent. This may affect the washing results

adversely.

6. Periodic cleaning, including optimal frequency, and limescale

prevention and procedure.

7. Noise and remaining moisture content are influenced by the

spinning speed: the higher the spinning speed in the spinning

phase, the higher the noise and the lower the remaining moisture

content.

8. The product information and QR code are reflected in the energy

consumption label, the product registration information can be

obtained by scanning the QR code.

9. The information of standard programmes.

Program

Selected

Temperature

(°C)

Rated

Capacity

(kg)

Maximum

temperature

in drum (°C)

Program

duration

(h:min)

Energy

consumption

kWh/cycle

Water

consumption

litres/cycle

Remaining

moisture

content

(%)

Maximum

speed

reached

rpm

Eco 40-60

full load

10 39 3:59 0.99 49.00 140065

Eco 40-60

half load

5 36 3:00 0.65 50 51.00 1400

Eco

40-60

1/4 load

2.5 25 2:50 0.27 51.00 140024

Cotton

20 10 20 2:09 0.22 115 51.00 1400

Cotton

60 10 55 3:29 1.56 108 53.00 1400

Mix

40 4 2:18 0.85 45.00 140045 69

Quick 15’

40 1 38 0:30 0.33 22 55.00 800

20°C

20 10 20 1:50 0.20 85 51.00 1400

The values given for programmes other than the eco 40-60

programme are indicative only.

Door Lock Icon

After the program starts the Door Lock icon will light up and ,

the door will be locked.

After completing program, door lock unlocks automatically.

During pause, if door opening condition can be met halfway, the

door lock will unlock and its indicator light will go out.

When door lock indicator light flashes, door shall not be opened

forcibly so as to avoid personal injury.

Delay End Function

Delay end function allows to run the machine at the consumers’

convenience, for example, at night when electricity is cheaper.

•Only under the standby mode, this button is valid for selecting

the reservation time.

•After the reservation function is selected, the time will increase

1h when each time the reservation button is pressed. Before

reservation, if the program time does not satisfy the integral

multiple of 1h, it shall be completed by pressing the reservation

key for the first time, and then the time increases 1h when each

time the reservation button is pressed. If the reservation is

selected, before the program runs, the current reservation can be

cancelled by turning the button to select other programs.

•The delay time must be longer than the wash program length as

the delay time is the time program will finish. For example: if the

selected program time is 02:28, the delay time selected must be

between 03:00 and 24:00.

•When the reservation process is operated, the icon of

‘reservation time’ will be on. When the reservation process is

finished, the icon of ‘reservation time’ will be off, while the icon

of the ‘remaining time’ will be on.

Favourite

After selecting the program and setting each parameter and

starting, long press the Favorite key for 3s to memorize the

selected program, temperature, rotational speed and other

related settings, and then the Favorite symbol lamp will be on.

Under the circumstance that the Favorite lamp is not on, short

press the Favorite key, then the program will be switched to the

program memorized last time; and meantime, the temperature,

rotational speed and other parameters will automatically change

into the parameters memorized last time.

At this moment, if switching the program or pressing other keys,

the panel will display a new program and parameters, and the

Favorite symbol lamp will be off.

When the user uses it for the first time, if he/she has never long

pressed the Favorite key to collect programs, he/she can short

press the Favorite key and then the cotton linen program and its

default settings will be collected by default.

Mute Function

When the machine is in the state of holding, pause or

operation, press buttons for 2 seconds, he “Spin+Favourite” t

display will show mute function fault icon. All the buzzing will

be turned off except the alarms.

When the machine is in the mute state, press “Spin

+Favourite” buttons for 2 seconds until mute function fault

icon light off. All the buzzing will be activated.s

Automatic weighting

Washing machine displays “----” after startup, indicating that it

is weighing automatically. It will adjust program length (hours:

minutes) automatically according to weight of clothes.

Child Lock

To strengthen the safety of children, this machine is equipped

with Child Lock function.

When the programme starts, press “Temp. Spin+ ” button for 2

seconds. Child Lock icon will light up, and then Child Lock is set

up. Repeat the same operation, the Child Lock will be released.

•When the Child Lock is set, all function buttons will be shielded.

•When you turn the machine off by rotating the program

selection button to

“Off”, child lock is released.

•After completing program, child lock will automatically unlock.

To Start the Program

After you have selected your options and placed detergent

within the detergent dispenser, turn on the water tap and press

the button. The screen will display the current “Start/Pause”

program progr

ession with icons from left to right. It also displays

the remaining program time.

To Cancel the Program or Reselect the Options

1. Rotate the program to “Off” for 3 seconds to turn off the

machine.

2. Select the new program and options.

3. Press button to turn on the machine without “Start/Pause”

adding any extra detergent.

End of the Program

When programme finished its running, it will display . If “End”

no operation is taken in 2 minutes, the machine will turn off

automatically.

1.Rotate the program to to turn off the machine;“Off”

2.Close the tap;

3.Open the door and take the washed clothes out;

4.Slightly open the door to remove moisture in the pump.

Reload in Process

If you want to reload clothes in the process of washing, please

press button.“Start/Pause”

•If reload icon light up, the door can be opened in the process,

remaining time and the Door Lock icon in display will flash. Then

the Door Lock icon will go out, and the door can be opened.

•If reload icon doesn’t light up, the Door Lock icon doesn’t

flash, it indicates that current temperature is over 50°C or you

have passed the time for reloading in the process, namely no

clothes allowed to load into the machine.

Vasketemperatur valgt i henhold til instruksjonene på vaskelappen.

Bomull farge

—,20°C, 30°C, 40°C,60°C

Bomull

-,20°C, 30°C, 40°C,60°C,95°C

Allergiprogram (2)

40°C, 60°C

Babyklær

(2)

40°C, 60°C, 95°C

Mørk vask

-,20°C,30°C, 40°C,60°C

Sportsklær

-,20°C, 30°C, 40°C

Dunklær

—,20°C, 30°C, 40°C

Skyll + sentrifuge

Sentrifuge

Maskinvaskbart tøy fylt med syntetiske fibre, som puter, dyner og sengetepper; også egnet for tøy fylt med dun.

Program for lett til moderat skittent tøy. Temperaturen kan stilles inn separat. Følg derfor instruksjonene som

står på tøyet. Tøyet som bæres direkte på huden, skal vaskes ved 60 °C. Mindre skittent tøy vil bli grundig rent

ved 40 °C. Sentrifugehastigheten kan også velges fritt. Standardinnstillingen er maksimal sentrifugehastighet.

Dette programmet er egnet for babyklær og undertøy osv., da det steriliserer og desinfiserer med høy temperatur.

Mørke tekstiler laget av bomull og mørke lettstelte tekstiler.

Dette programmet er som standard satt til to skyllinger og sentrifugering.

Velg lengden og hastigheten på sentrifugering manuelt.

＊H k f l rold inne i 3 se or å ag e programmet.

St rdanda

skylletider

Intens

Program

Forvask Temp.

,20°C, 30°C, 40°C

--,20

°C, 30°C, 40°C

--,20°C, 30°C, 40°C

20°C

POWM 45A101

A. Programvelger

B. "Start ause" knapp/P

C. Displayvindu for program - og funksjonsstatus

D. "Forsinket slut" knapp

E. "Favor tt" ap i kn p

F. "Tillegg" knapp

G. "Sentrifuge" knapp

H. "Temp." knapp

I. Barnesikring

J. Demping

Kraftig og moderat skittent bomull eller lin. For svært skitne artikler velger du «Forvask» - funksjonen.

som pollen, midd og parasitter med damp med høy temperatur.

Ull

Maskinvaskbar ull. (Se vaskeetiketten som er festet til klærne).

Blandet

Hurtig 15’

Bomull, blandede sto er. Gjenstander brukt i kort tid eller nykjøpt.

Blandede mengder moderat skittent bomull og syntetiske sto

er.

Dette programmet er egnet for bomullstøy med lette flekker og sparer strøm.

(1) Testprogrammer for vaskeytelse er: Øko 40–60.

(2) Allergidampvask og Baby-dampvask er egnet for å sterilisere fa efast tøy. Når du ser vanndamp på dørglasset, må du ikke legge hånden på dørglasset eller åpne dispenseren for å forhindre forbrenning.rg
