KIT NAME: WB-4200

WB-4200 wall mount bracket - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 pcs

Self tapping screw 3.5φ-16L (P/N: 10642035162) For TX-4200/4200E Wall

mount use- - - - -- - - - -- - - - -- - - - -- - - - -- - - - -- - - - -- - - - -- - - - - 4 pcs

Shoulder screw (P/N: 10504140062 applied on back of main unit if this kit

ordered with it) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -4 pcs

Plastic Cotter (P/N: 10241000021)-- - - - -- - - - -- - - - -- - - - -- - --- - 4 pcs

Washer φ4.2* φ12*1mm(Ni) (P/N: 10410421210) For RT Series Wall

mount use………………………………….……………………………4 pcs

Installation guide - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 copy

ABOUT THIS PRODUCT

This WB-4200 wall mounting kit is applicable for wall mount application

of main unit of TX-4200/4200E and RT series. With this robust kit, TX-

4200/4200E Series is so versatile that it can be used as a full fledge POS

Box, a Kitchen Video System (KVS) controller and a Digital Signage

controller.

INSTALLATION PROCEDURE

FOR WALL MOUNTING

This bracket kit supports wall mounting of TX-4200/E, separately packaged

at delivery. However, this kit is ordered separately from the main unit and

to be installed on a system initially. Some preparations must be taken on the

main unit and then come back for the operation of wall mounting.

Please kindly follows steps below to fix the WB-4200 wall mount with

the main unit TX-4200 series on the wall.

This bracket can be fit to a supportive mechanism compliant to standard

with 75 mm pitch in vertical direction &146 mm pitch in horizontal

direction.

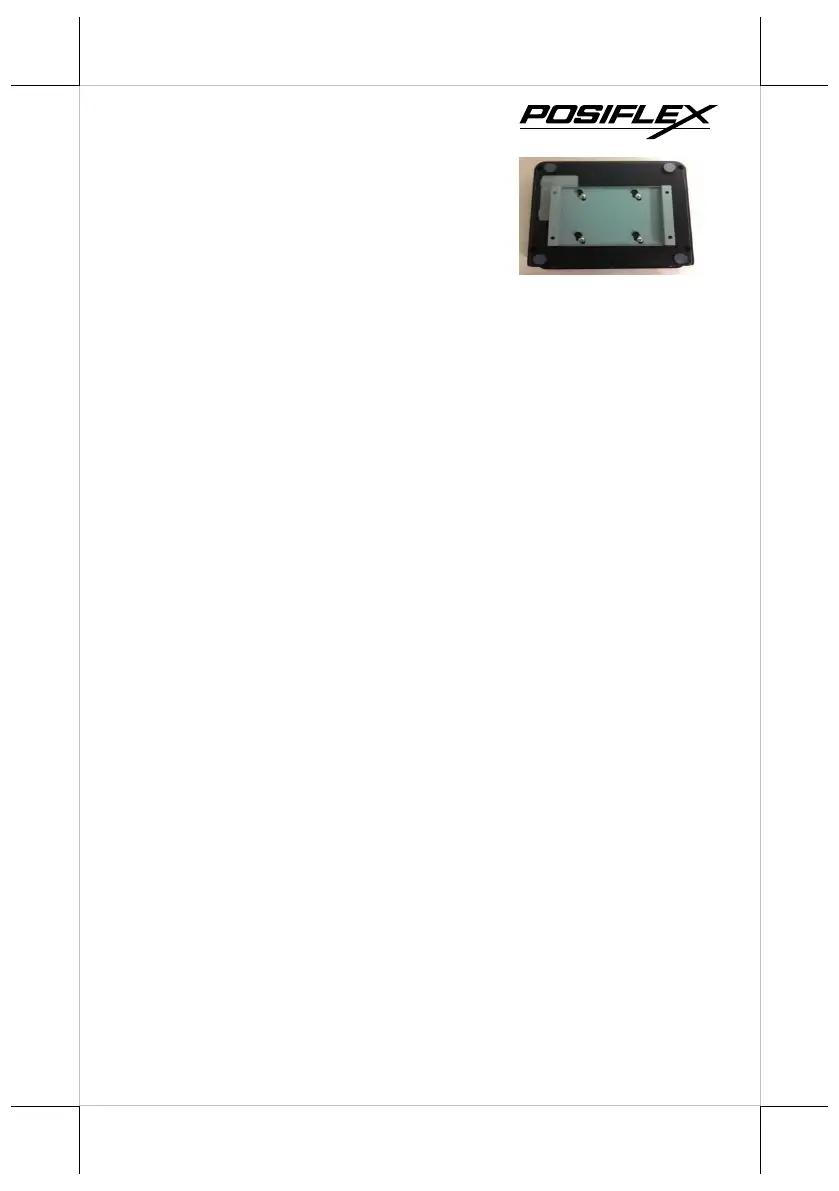

WB-4200

Wall Mounting Bracket

Installation Guide

Rev.: B0

P/N: 14520901030
