Seite 1/4
www.radialeng.com
True to the Music

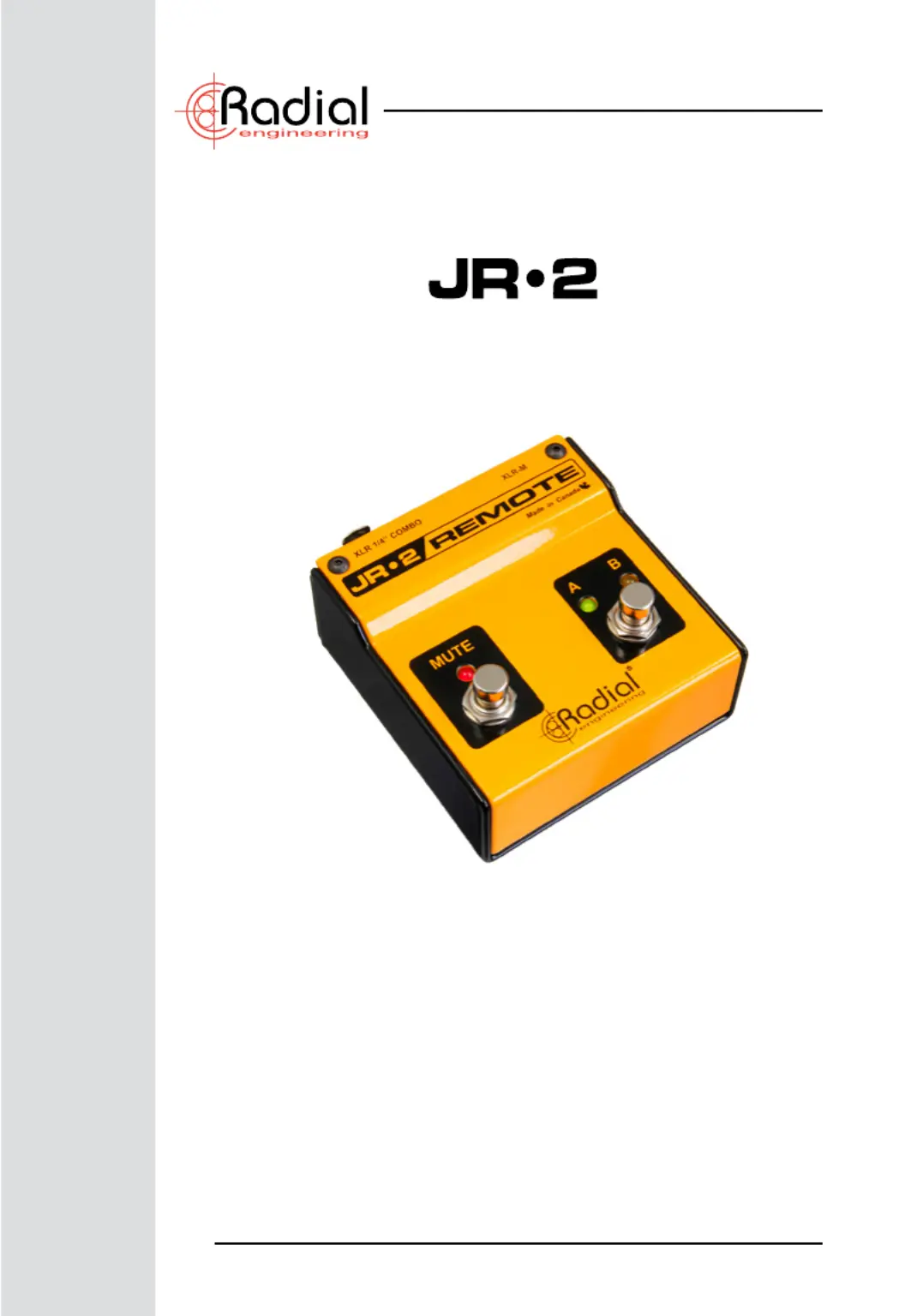

USER GUIDE
REMOTE
FOO TSWIT CH
®
Radial Engineering Ltd.
1845 Kingsway Ave., Port Coquitlam, BC V3C 1S9, Canada
tel: 604-942-1001 • fax: 604-942-1010
info@radialeng.com
Radial Engineering Ltd.
JR•2™ Remote Footswitch
True to the Music
®

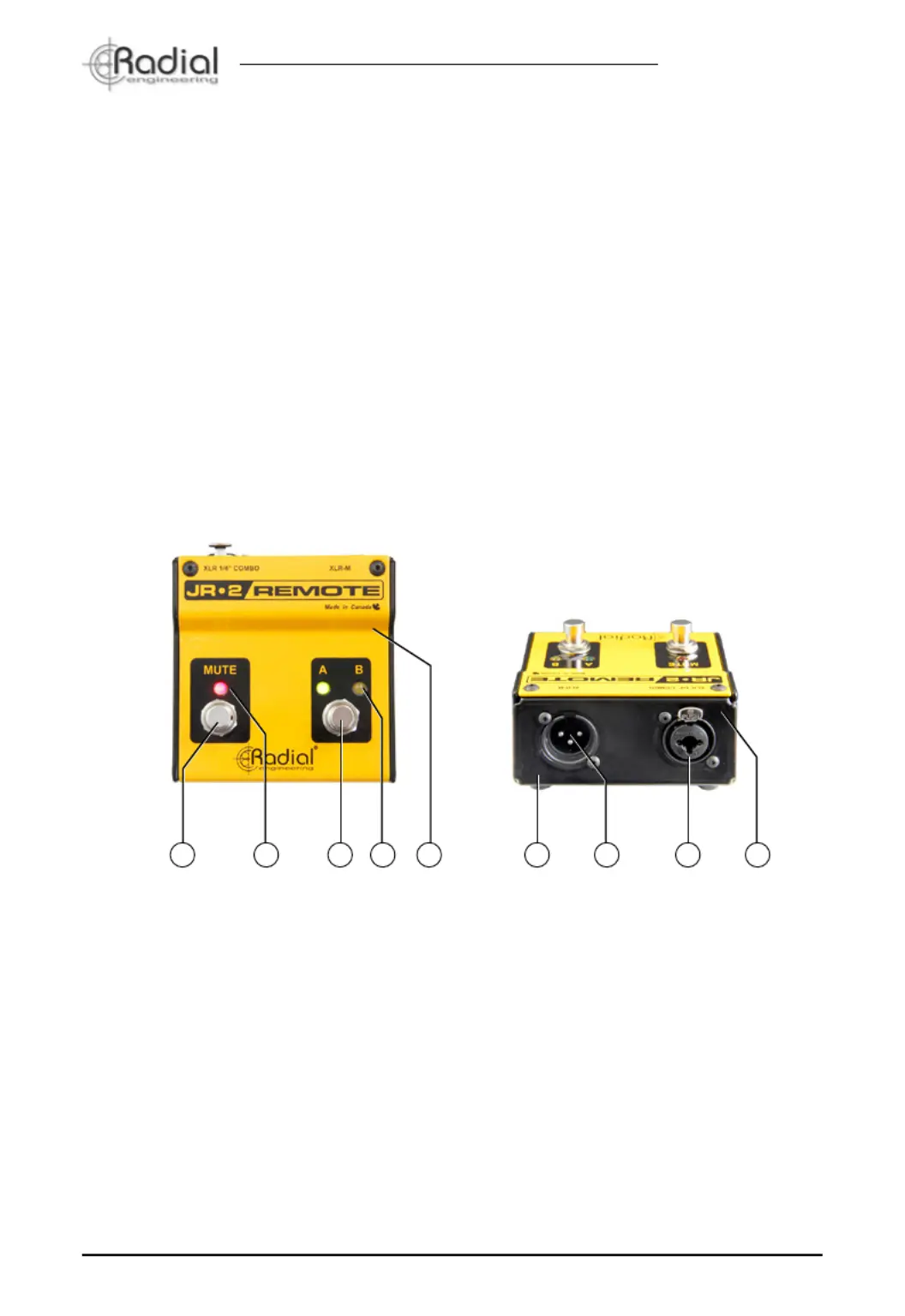

FEATURE SET
INTRODUCTION
Thank you for purchasing the Radial JR•2 footswitch. This handy device can be used to
remotely control various Radial devices such as the Firey tube direct box or SW8 backing
track switcher. Please take a few moments to read this short manual and familiarize yourself
with the various functions. This will help you get the most out of the JR•2 as you explore its
uses. Should you have a question that is not covered in this manual, we invite you to send
us an email at info@radialeng.com and we will do our very best to reply in short order.
OVERVIEW
The Radial JR•2 is a remote footswitch equipped with two footswitches that enable you to
control various functions depending on the device that is connected. The left footswitch
is designated as MUTE while the right footswitch is designated as A or B. Above each
footswitch are a series of status LEDs. These are used to provide local visual feedback when
controlling a remote device. The JR•2 derives its power from the Radial device that is being
controlled, thus eliminating the need for a local power supply or batteries. Connecting to and
from the JR•2 is done using a balanced cable with either XLR or TRS connectors.
1. MUTE: Used to turn off the output from
the remotely controlled device.
2. MUTE LED: Illuminates when the mute
footswitch is depressed.
3. AB SELECT: Generally used to toggle
between two sets of inputs or outputs,
depending on the remotely controlled
device that is in use.
4. AB LEDs: Provides local visual status
of the remotely controlled device.
5. YELLOW TOP: Highly visible color
designed to be easy to see on dark
stages.
6. BLACK CASING: Designed to
be ‘invisible’ form the audience’s
perspective.
7. XLR-M: Used to connect to remote
device, provides alternate connection
for XLR-female cable.
8. COMBO: Used to connect to remote
device, provides locking connection for
¼" TRS or XLR-male terminated cable.
9. 14 GAUGE STEEL: Heavy duty
construction for years of trouble-free
use.
1 5 6 832 4 97
JR•2™ Remote Footswitch
True to the Music
®
Radial Engineering Ltd.

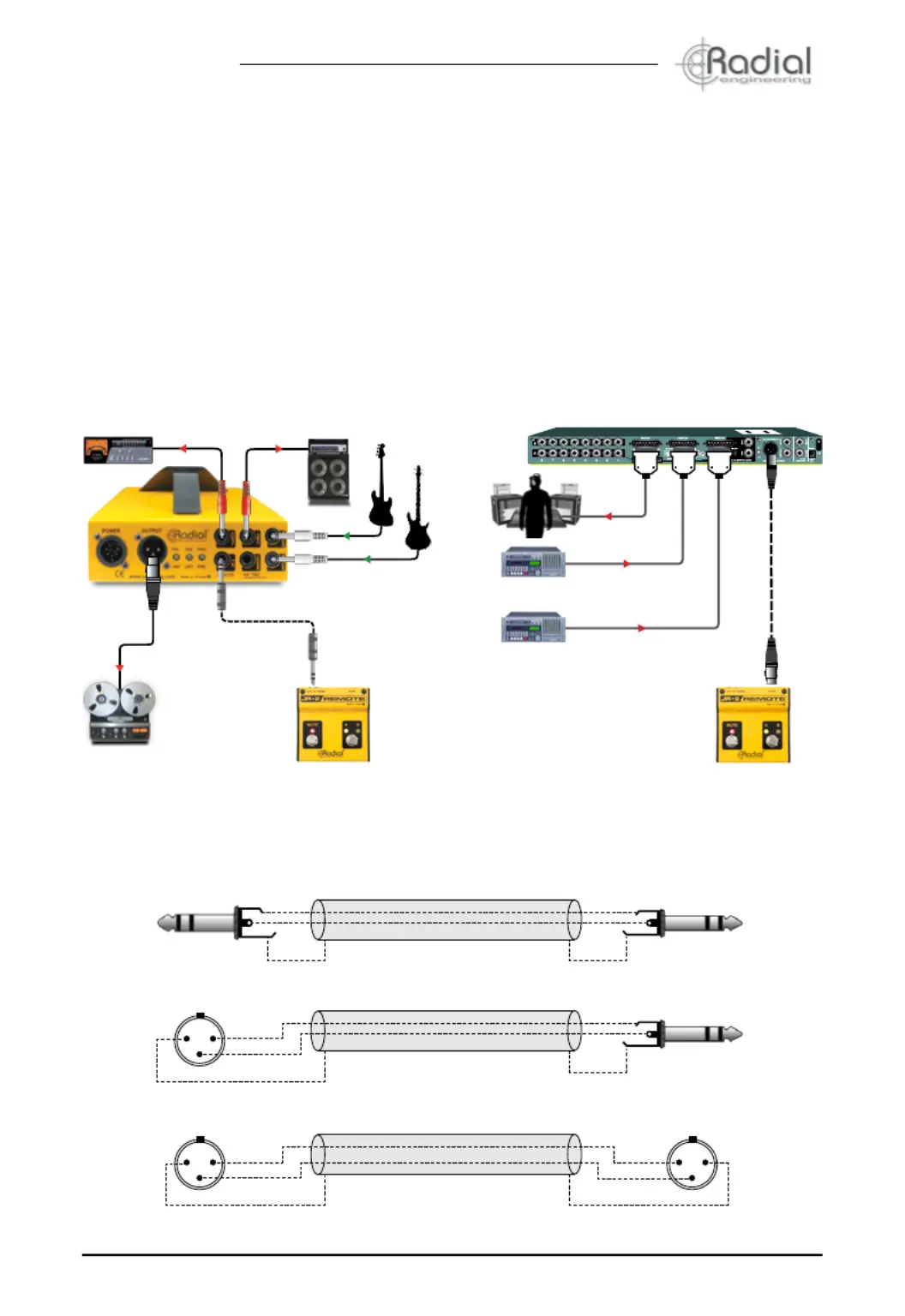

MAKING CONNECTIONS
The JR•2 does not require any local power to make it work. It derives its power source from
the remotely connected Radial device and travels along the balanced cable to activate the
JR•2’s active circuits and illuminate the LEDs. There are two connectors to choose from. The
rst is an XLR-male, the second a combo connector with ¼" TRS and XLR-female. These
are wired in parallel to provide greater exibility, which in turn, enables the JR•2 to be used
on several different Radial devices. Only one remote output connector should be used at
a time as using two concurrently could cause a control system conict.
Simply connect using a balanced cable and the JR•2 will spring to life. As the JR•2 can be
used with a number of Radial devices, please consult the specic owner’s manual for details
on the appropriate cable and how the two footswitches will interact.
1 2
TIP
RING
SLEEVE
TIP
RING
SLEEVE
TIP
RING
SLEEVE
SHIELD SHIELD
3
SHIELD
SHIELD
1 2
3
12
3
SHIELD
SHIELD
¼” TRS ¼” TRS
F-XLR ¼” TRS
F-XLR M-XLR
OUTPUT TO PA OR
RECORDING SYSTEM
¼” TRS
BALANCED
CABLE
XLR BALANCED CABLE
AMP
JR•2
TUNER
JR•2
PRIMARY-A
MULTI-TRACK
BACKUP-B
MULTI-TRACK
WIRING DIAGRAMS
