Manual-1

OPERATORS MANUALRPE 228d

PROGRAMMABLE EQUALIZER

QUICK START

Read this section if you want to install and operate the RPE 228d without wading through the detailed descriptions in

this manual. If the control software has not yet been installed on your computer, refer to SOFTWARE OPERATION on

page Manual-5 first.

Turn the amplifier(s) down or off until all connections are complete. Connect balanced audio INPUTSand OUTPUTS

to the handy Euroblock connectors on the rear. Connect the RW 232 INPUTjack on the rear to a serial (COM) port on a

PC-compatible computer using a standard 9-pin RS-232 cable (a short one is supplied with the unit, which is intended to

connect between units in a rack). The cable or adaptor must not be a null-modem type.

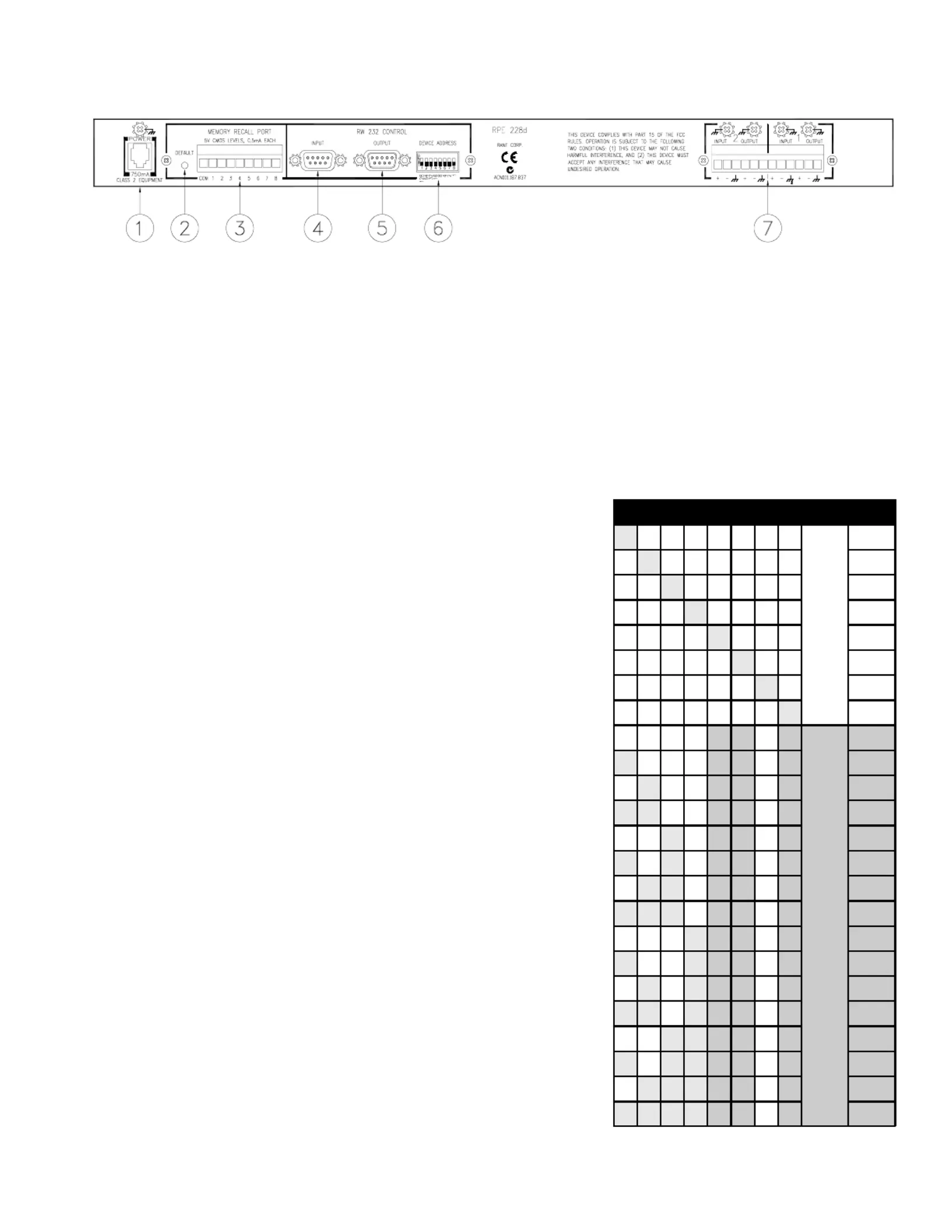

Locate the RW 232 DEVICE ADDRESSswitch on the rear panel. If this unit is to be tested by itself, set it to ‘1’ by

setting all switches off (down), except switch one (labeled ‘1’ on the chassis, the right-most switch). If there is more than

one unit, refer to SETTING THE DEVICE ADDRESS to set a unique number (see page Manual-4).

Apply power by connecting the RS 1 remote power supply to the red telephone-style jack on the rear of the unit.

CAUTION: don’t connect anything but an approved RANE power supply to this jack. If the RS 1 and the RPE 228d are

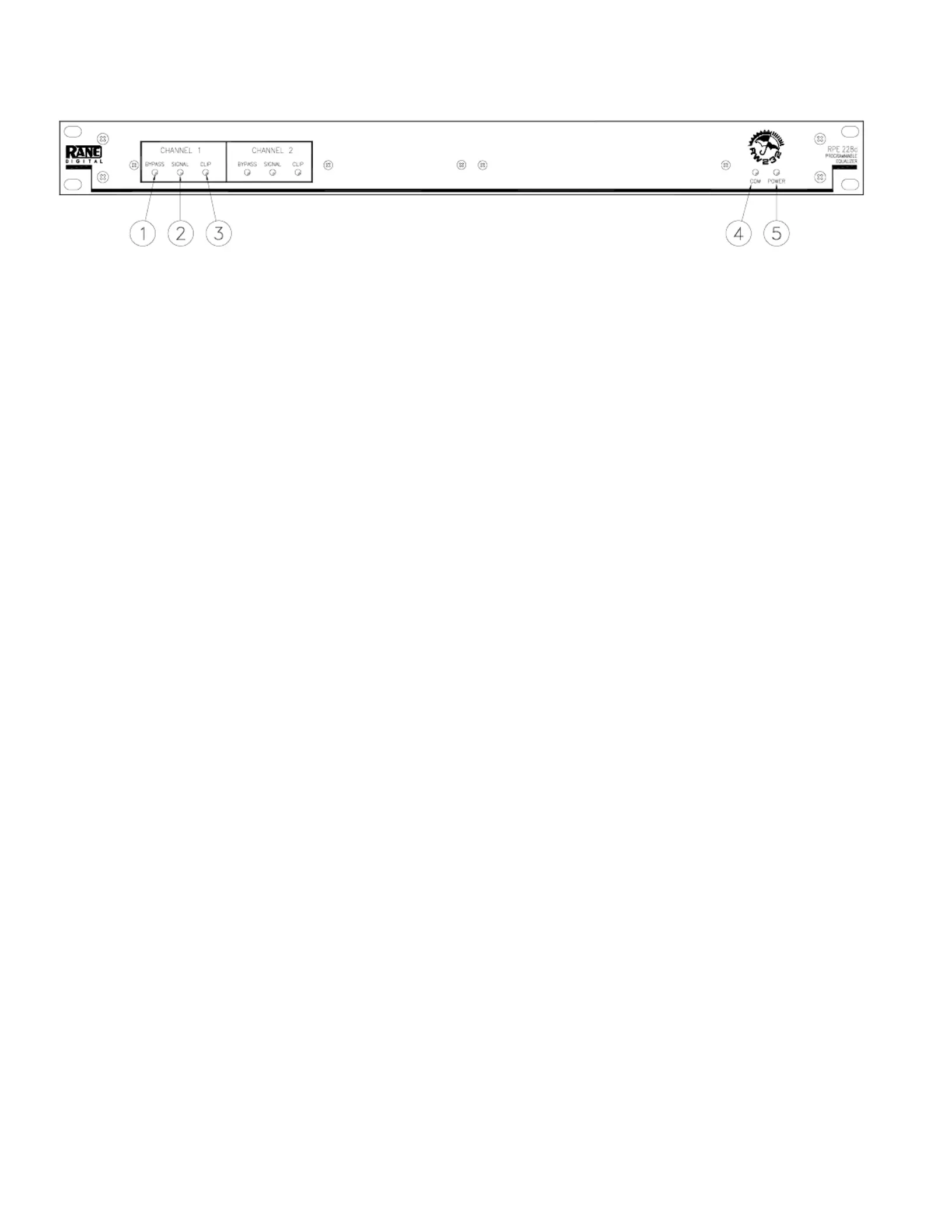

getting power, the front panel yellow POWERlight will be on.

Start your computer, run Windows

®

, and launch our software by double-clicking on the RaneWare

®

icon. The System

SetupSetupwindow may appear. If it doesn’t, select System Setupfrom the menu. Be careful to select the COM port

which is physically connected to the RPE 228d. Click OK. Now, the Device Selectionwindow may appear. If it doesn’t,

choose Select from the Device menu. Click on Poll, … and the Devices Foundwill display the number of units found.

Click the Stop button. Select the unit listed in the . If no unit was found, pleaseDevice Selection window and click OK

refer to the TROUBLESHOOTING section.

Several clues indicate communication between the computer and the RPE 228d. The yellow COM(communications)

light on the unit should flash periodically. The Memorynumbers (1-16) near the top of the computer screen should be

blackrather than grey. Clicking the BYPASSbutton on the screen causes one Channel of the unit to enter Bypass mode.

WEAR PARTS:This product contains no wear parts.

Windows

is a registered trademark of Microsoft Corporation.

RaneWare is a registered trademark of Rane Corporation
