REL

ACOUSTICS

LTD.

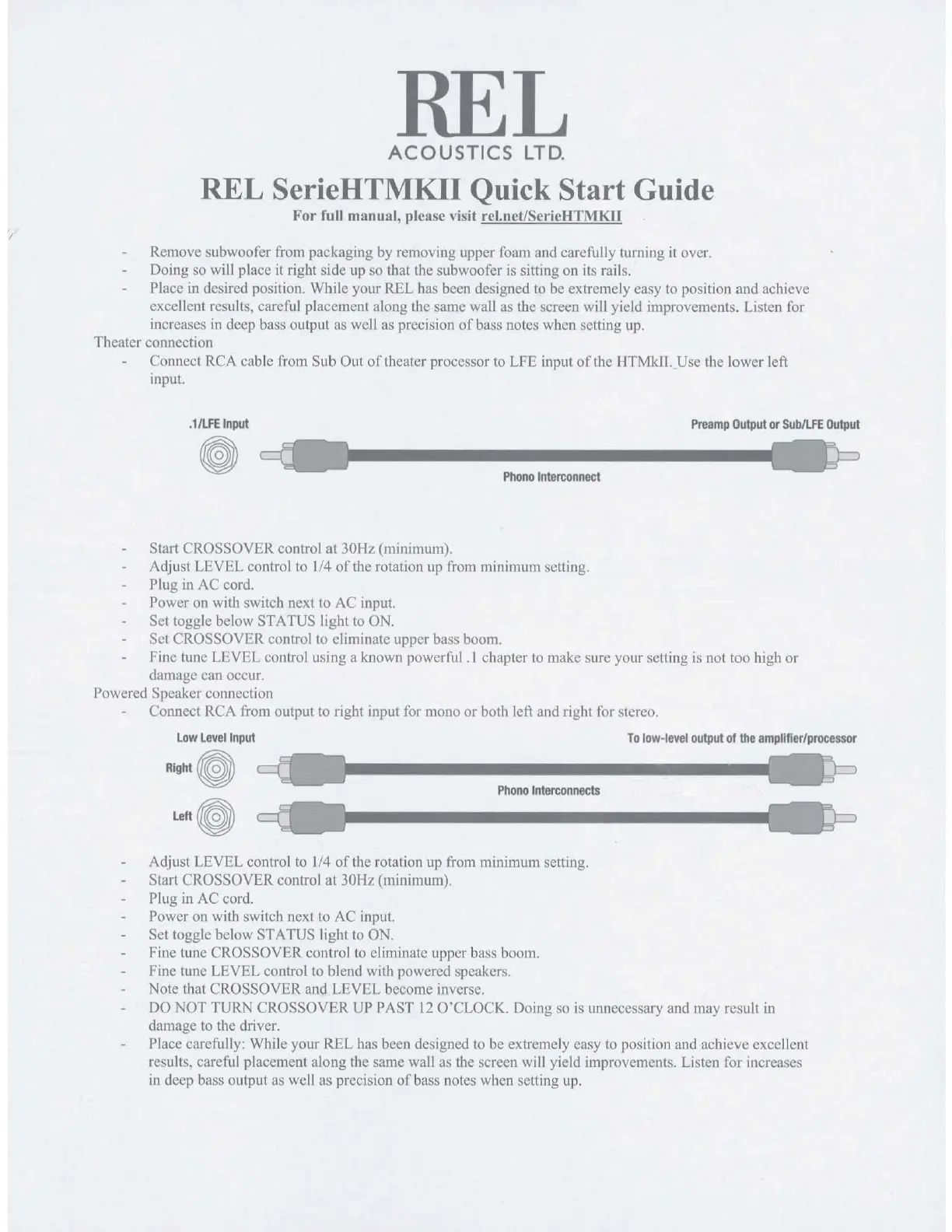

REL SerieHTMKII Quick Start Guide

For full manual, please visit rel.net/SerieHTMKJI

Remove subwoofcr from packaging by removing upper foam and carefully turning it over.

Doing so will place it right side up so that the subwoofer

is

sitting on its rails.

Place in desired position. While your REL has been designed to be extremely easy to position and achieve

excellent results, careful placement along the same wall as the screen will yield improvements. Listen for

increases

in

deep bass output as well as precision

of

bass notes when setting up.

Theater connection

Connect RCA cable from Sub

Out

of

theater processor to LFE input

of

the HTMkll. Use the lower left

input.

.1

/LFE

Input

~

Phono

Interconnect

Start CROSSOVER control

at

30Hz (minimum).

Adjust LEVEL control to 1/4

of

the rotation

up

from minimum setting.

Plug in AC cord.

Power on with switch next to AC input.

Set toggle below STATUS light to ON.

Set CROSSOVER control to eliminate upper bass boom.

Preamp

Output

or

Sub/LFE

Output

Fine tune LEVEL control using a known powerful . I chapter to make sure your setting is not too high

or

damage can occur.

Powered Speaker connection

Connect RCA from output to right input for mono

or

both left and right for stereo.

Low

Level

Input

Right~

Left~

Phono

Interconnects

Adjust LEVEL control to I

/4

of

the rotation

up

from minimum setting.

Start CROSSOVER control

at

30Hz (minimum).

Plug in

AC

cord.

Power on with switch next to AC input.

Set toggle below STATUS light to ON.

Fine tune CROSSOVER control to eliminate upper bass boom.

Fine tune LEVEL control to blend with powered speakers.

Note that CROSSOVER and LEVEL become inverse.

To

low-level

output

of

the

amplifier/processor

DO

NOT

TURN

CROSSOVER UP PAST

12

O'CLOCK. Doing

so

is unnecessary and may result

in

damage to the driver.

Place carefully: While your REL has been designed to be extremely easy to position and achieve excellent

results, careful placement along the same wall as the screen will yield improvements. Listen for increases

in deep bass output as well

as

precision

of

bass notes when setting up.
