Quick Start Guide
Rigel PULS-R
Universal SpO2 Finger Simulator
Introduction
Welcome to your new Rigel PULS-R. This quick start guide tells you how to set up your Rigel
PULS-R and make use of its key features. The Rigel PULS-R can only be used with the
Rigel SP-SIM and UNI-SIM and is compatible with firmware version 3 or higher.
This firmware can be downloaded from the Rigel website and uploaded onto your device
using a step by step guide in Application Note 0028 and the data transfer.exe program. These
are all readily available from the Rigel medical website at the link below:
www.rigelmedical.com/rigel-downloads
Technical Specification
Accuracy of simulation when used with the corresponding R-curves
* Based on using the same probe and monitor setup
**Note that some monitor types might not be able to display low range sats
Heart rate setting 30-300 bpm***
Operating temperature 0-40˚C
Dimensions 78 x 68 x 29 mm
Finger shape 40 x 18 mm
Part number 399A910
*** Subject to monitor capability
Rev 1.2
Instruction Manual
This Quick Guide is designed to be used in conjunction with the full Rigel
UNI-SIM or SP-SIM Instruction Manual.
The Rigel UNI-SIM Hand-Held Vital Signs Simulator and SP-SIM instruction
manuals are now provided in electronic format only.
The manual is available as a download from rigelmedical.com/rigel-downloads
Resolution Range Repeatability*
1% steps 30 - 59% ±5%**
1% steps 60 - 89% ±3%
1% steps 90 - 100% ±1%
1
3

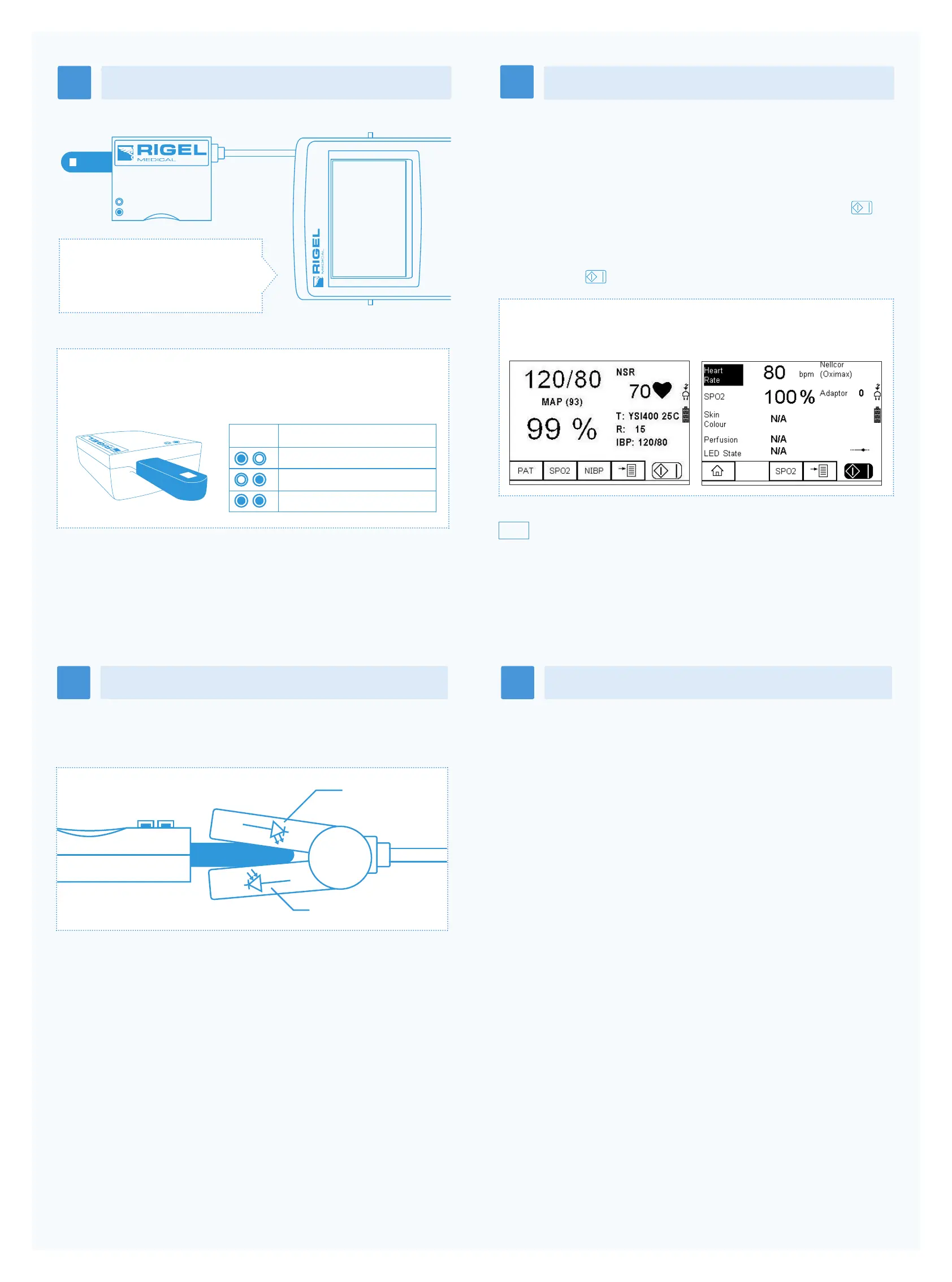

Performing SpO2 Simulation
Getting to know your Rigel PULS-R
The positioning of the SpO2 probe to the PULS-R is shown below. Ensure that the
probe LEDs are aligned with the top of the finger and the photo detector with the
bottom of the finger.
Parameters can be varied to validate the monitor and probe including:
■ Technology. E.g.: PULS-R, Masimo, Nellcor....
■ SpO2 (%) simulated
■ Heart Rate
UNI-SIM
1
2
1 UNI-SIM/SP-SIM
2 PULS-R
LEDs Probe Positioning
a
r
r
The Rigel PULS-R has status LEDs which light up to indicate whether a
probe connection has been achieved. The table below shows connection
status as indicated by the LEDs
2
G
etting Started
In this section we will identify some of the basic functions of the Rigel UNI-SIM Hand-held
Vital Signs Simulator and SP-SIM with the PULS-R SpO2 simulator and how to get you
started.
Switch on!
Turn on your Rigel UNI/SP-SIM by pressing and holding the green start button until
you hear a “beep” and the Rigel splash screen appears.
The summary simulation screen appears displaying the settings from the previous
simulation for all parameters and can be repeated by simply pressing
the green start key
For both the Rigel UNI and SP- SIM the user will need to select.
SpO2 Simulation
Image 1 of the UNI-SIM shows NIBP, SpO2, ECG, IBP, Respiration and Temperature
a
nd Image 2 shows the same for the SP-SIM
S
PO2
Image 1 Image 2
4
Supported default R-curves
■ Beijing Choice
■ Criticare
■ GE Tuffsat
■ Masimo
■ Mindray
Custom R-curves subject to availability
■ Nellcor
■ Nellcor Oximax
■ Nihon Kohden
■ Nonin
■ Novametrix
■ Philips / HP
RED/Infrared LED
PULS-R
Photo detector
SpO2
