DC~500MHz

13pF±3pF

10MΩ±2%

10:1 (Fixed)

CAT II 300VAC

6pF~24pF

0~50℃，0~80%RH

140±2cm

About 56g

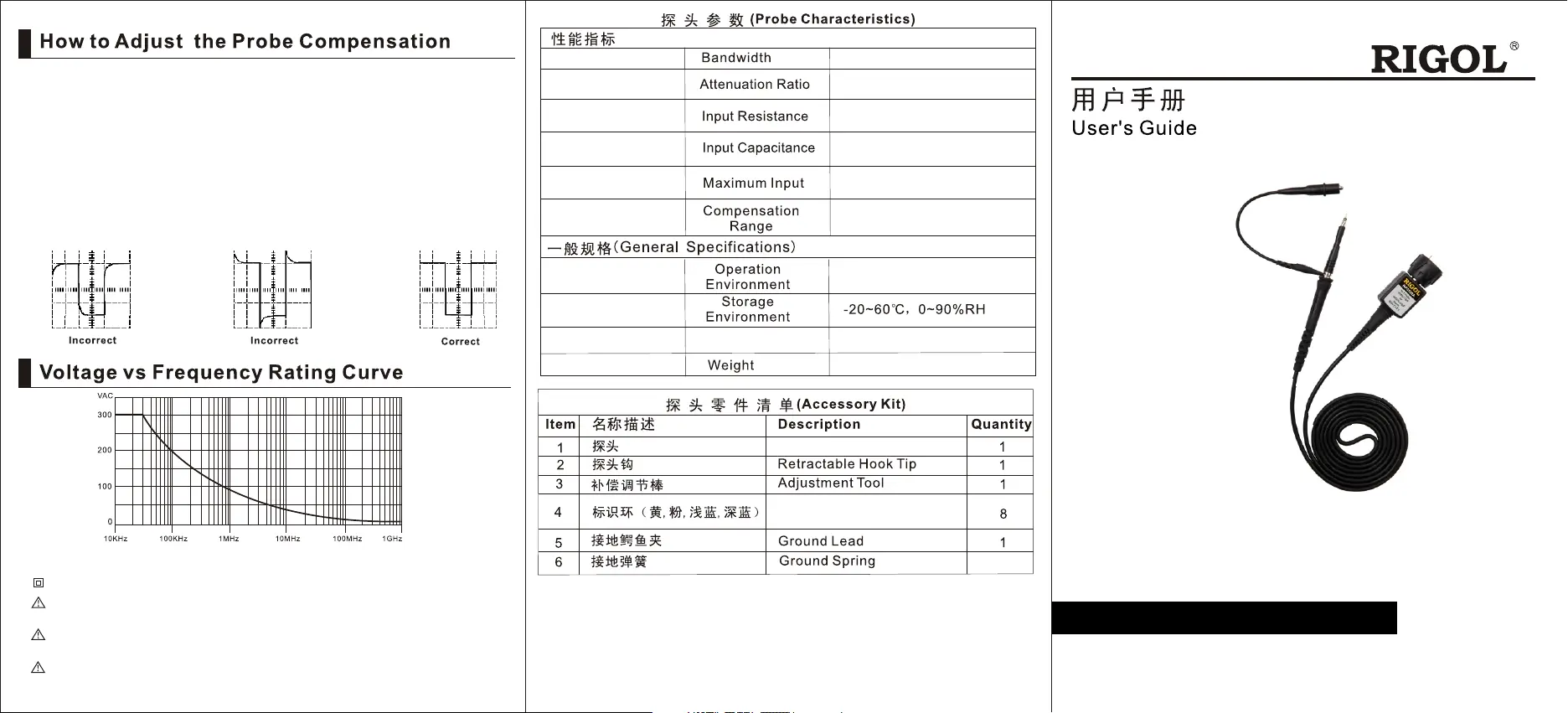

（TechnicalSpecifications）

©2012 RIGOL Technologies, Inc. All Rights Reserved.

RP3500A无源示波器探头

RP3500A Passive Oscilloscope Probe

Probe Head

CAT II:IECMeasurementCategoryII. Inputsmaybeconnectedtomains (upto300VAC)

underCategoryIIovervoltageconditions.

Equipment protected throughout by DOUBLE INSULATION or REINFORCE INSULATION.

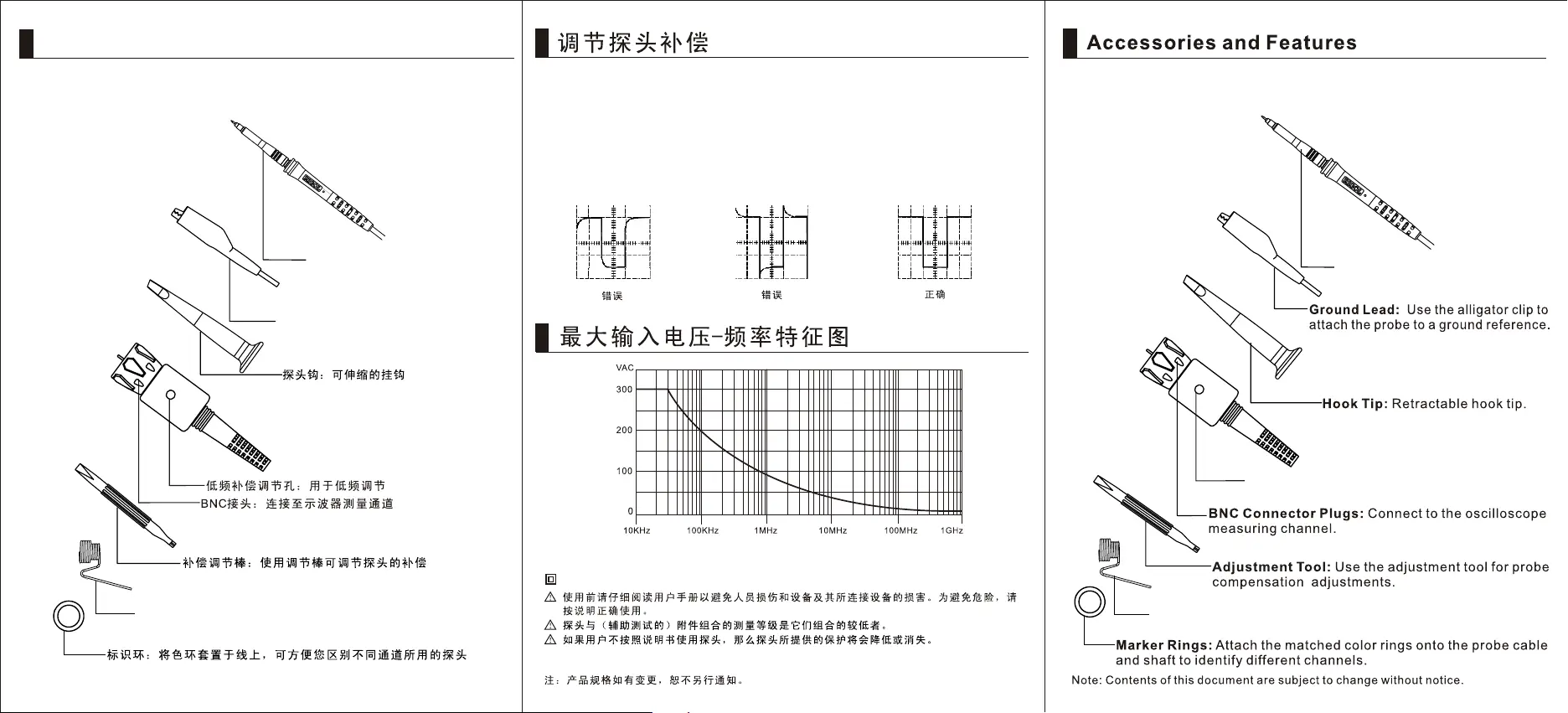

Low-frequency compensation

1Connect the probe to the calibration signal output terminal and

signal input terminal at the front panel of the oscilloscope.

2Press Auto at the front panel of the oscilloscope and a 1 kHz square

waveform is displayed on the screen.

3Use the adjustment tool to adjust the low-frequency adjustment

hole to obtain the flattest pulse (As shown in the figures below).

CableLength

You are suggested to compensate the probe so as to match its

characteristics to the oscilloscope. The probes can be adjusted for

low-frequency compensation. Low-frequency compensation needs to

MarkerRings(yellowp

)

, ink,

lightblue anddarkblue

Review this manual carefully to avoid injury and prevent damage to this product or any

products connected to it. To avoid potential hazards, use this product only as specified.

The measurement category of a combination of a PROBE ASSEMBLY and an accessory is the

lower of the measurement category of a combination of the PROBE ASSEMBLY and of the

accessory.

If the PROBE ASSEMBLY is used in a manner not specified by the manufacturer, the

protection provided by the PROBE ASSEMBLY may be impaired.

带宽

衰减比

输入阻抗

输入电容

最大输入

补偿范围

操作环境

探头尺寸

存放环境

探头重量
