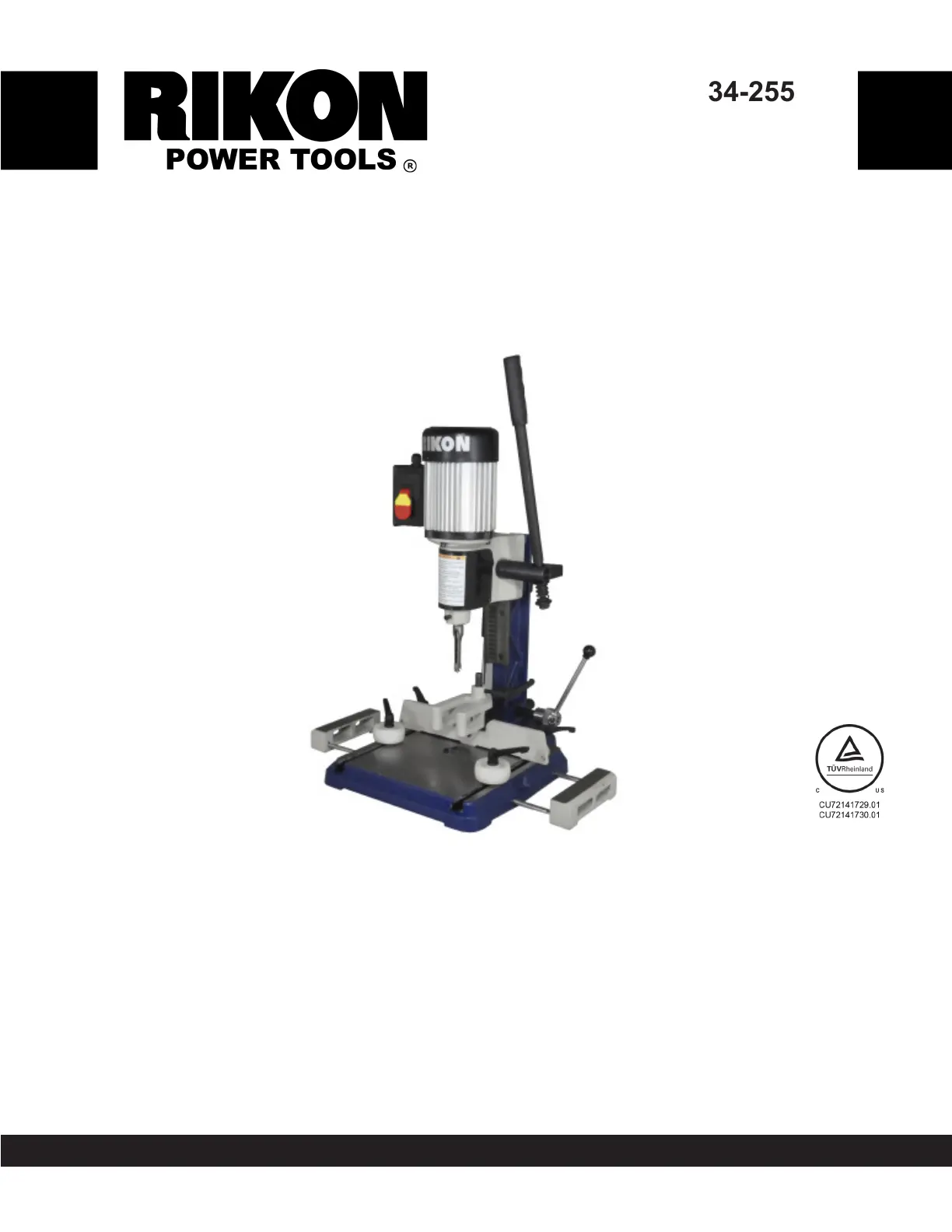

34-255
www.rikontools.com
34-255M3
Benchtop Mortising Machine
with Table Extensions
Operator’s Manual
Record the serial number and date of purchase in your manual for future reference.
Serial Number: _________________________ Date of purchase: _________________________
For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167
2
TABLE OF CONTENTS
SPECIFICATIONS
NOTE: The specications, photographs, drawings and information in this manual represent the current model
when the manual was prepared. Changes and improvements may be made at any time, with no obligation on
the part of Rikon Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to
ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety,
assembly and operation of this machine.
Motor ................................................................................................1/2 HP, TEFC
Motor Speed (no load).......................................................................... 1,700 RPM
Volts ..............................................................................................................120 V
Amps, Hertz ....................................................................................... 3.6 A, 60 Hz
Chuck Capacity ..........................................................................1/2” (1.5 - 13 mm)
Chuck Type .................................................................................................. Keyed
Chisel Shank Diameter ........................................... 1” ( with 3/4” & 5/8” bushings)
Chisel Range .........................................................................................1/4” to 5/8”
Chisel Stroke ................................................................................................ 5-3/4”
Hold Down Length (from Fence) ........................................................................ 3”
Maximum Hold Down Stock Height .................................................................... 5”
Roller Clamps Diameter (2) .......................................................................... 2-1/2”
Max. Stock Width (Fence to Roller Clamps) ................................................ 8-1/2”
Table Size (Width x Depth) ......................................................... 10-3/4” x 12-1/2”
Side Extension Size (2) (Width x Depth)...................................... 1-1/4” x 6-13/16”
Table Width with Extensions ...................................................................... 26-5/8”
Fence Size (Height x Length) ..................................................... 2-5/8 “ x 13-3/4”
Max. Overall Size (W x D x H) ........................................... 27-3/8” x 22” x 30-3/4”
Base Size (Width x Depth) .......................................................... 13-3/4” x 17-3/4”
Net Weight ................................................................................................... 84 lbs
Specications.....................................................................................................................2
Safety Instructions ........................................................................................................3 - 6
Getting To Know Your Machine ............................................................................................. 7
Contents of Package .....................................................................................................7 - 8
Assembly .................................................................................................................... 8 - 11
Operation ..................................................................................................................12 - 14
Maintenance ....................................................................................................................14
Troubleshooting ......................................................................................................... 15
Electricals & Wiring Diagram ....................................................................................... 5 & 15
Parts Diagram ......................................................................................................... 16
Parts List .......................................................................................................... 17
Accessories ..........................................................................................................18
Notes ...............................................................................................................................18
Warranty ..........................................................................................................................19
