ASSEMBLY INSTRUCTIONS FOR YOUR

1809

CORD COVER ASSEMBLY INSTRUCTIONS:

(G)

(G)

(I)

(H)

(F)

(N)

(O)

(B)

(B)

(J)

(L)

(C)

(D)

(K)

(E)

(A)

(M)

1. SHUT OFF ELECTRICAL SUPPLY FROM MAIN FUSE BOX / CIRCUIT BREAKER.

2. Follow steps 1 - 3 from cord cover assembly instructions above.

4. Disconnect wiring between socket and cord with polarized plug (H) by unscrewing wire nuts (E). Pull wiring from three prong plug (H) away

from backplate (C) exiting through nipple (K). Carefully unscrew nipple (K) from backplate (C).

5. Thread plug (F) into hole of backplate (C) vacated by electrical cord and nipple (K).

5. Lift backplate (A) to outlet box and make proper electrical connection. A licensed electrician is recommended.

6. Attach ground wire from xture (green or copper in color) to ground wire from outlet box.

7. Attach hot wire from xture (black in color or smooth side of wire) to hot wire from outlet box. Fasten wires together with wire nut (E) and tightly

wrap connection with electrical tape.

8. Attach neutral wire from xture (white in color or ribbed side of wire) to neutral wire from outlet box. Fasten wires together with wire nut (E) and

tightly wrap connection with electrical tape.

9. Follow steps 6 - 8 from cord cover assembly instructions above to complete assembly.

IMPORTANT SAFETY INSTRUCTIONS:

*These instructions are provided for your safety. It is very important that they are read completely before beginning the installation of your xture.

*WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN.

*Turn off power at switch before replacing bulbs, making sure xture has had sufcient time to cool down.

*DO NOT subject the xture to any shock while lit as shattering of bulbs may result.

*This portable lamp has a polarized plug (one blade is wider than the other) as a feature to reduce risk of electric shock, this plug will t in a

polarized outlet only one way. If it does not t fully in the outlet, reverse the plug. If it still does not t, contact a qualied electrician. Never use

with an extension cord unless the plug can be fully inserted. DO NOT ALTER THE PLUG.

REAL SIMPLE

BOOM WALL LAMP

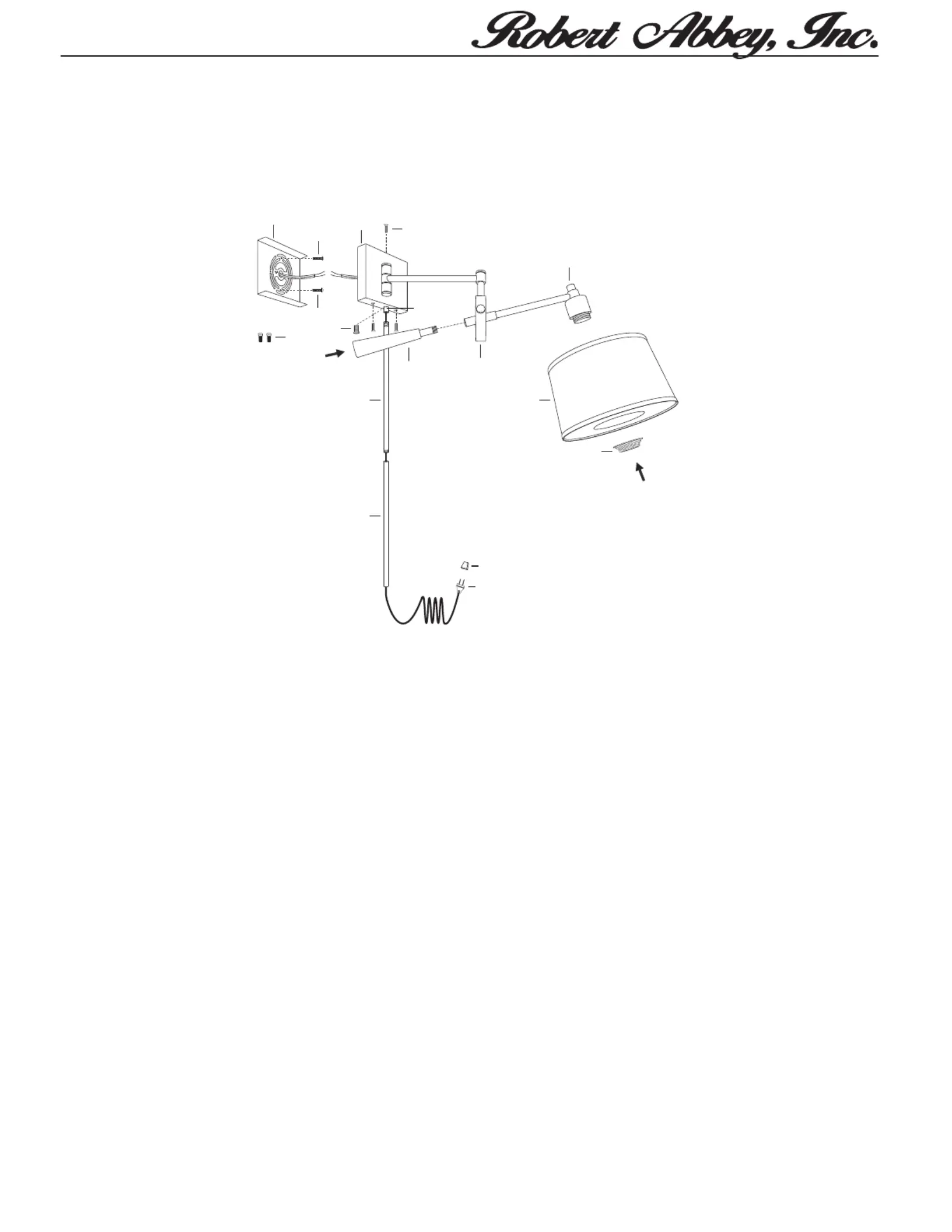

DIRECT WIRE ASSEMBLY INSTRUCTIONS:

1. Remove all parts from carton. Do not throw away any parts.

2. Remove mounting plate (A) from backplate (C) by removing backplate screws (D).

3. Afx mounting plate (A) to the wall using mounting plate screws (B) provided.

4. Align holes in backplate (C) with holes in mounting plate (A). Slide backplate (C) over mounting plate (A). Thread backplate screws (D) into

backplate (C) to secure xture to mounting plate (A).

5. Thread top cord cover (G) into the threaded opening of nipple (K). Thread bottom cord cover (G) into threaded opening of top cord cover (G).

6. Insert threaded end of boom (J) into threaded opening in housing (L).

7. Place shade spider (located inside shade (N)) over threaded socket. Attach socket ange (O) onto threaded socket to secure shade (N) to lamp.

8. Install one (1) 40W MAX Type A bulb in to socket.

9. Remove protective plastic (I) from polarized plug (H). Insert polarized plug (H) into wall outlet. Use switch (M) to turn lamp on/ off.
