Features

USB Type-C Male (Connect to host computer)

• Supports DP1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps (8.1Gbps per lane),

downward compatible with DP1.2 Alt mode

Note: To get max bandwidth, the host should support standard DP1.4 Alt mode

with DSC3:1 and HBR3

HDMI

• Supports HDMI max 4K/60Hz， 4：4：4，

8bit with 18Gbps Bandwidth

• Supports 6/8/10/12 bit color depth

output

• Supports output pixel format

RGB/YCbCr4:4:4/YCbCr4:2:2

• Supports HDCP 2.2&HDCP1.4

• Supports HDR

Note:When connecting a DP1.4 Alt

mode supported host, the max

resolution of HDMI is 4k/60Hz; When

connecting a DP1.2 Alt mode supported

host, the max resolution of HDMI is

4k/30Hz due to bandwidth limitation

Introduction

Package Contents

Before attempting to use this unit, please check the packaging and make sure

the following items are contained in the shipping carton:

• Main Unit x1

• User Manual

Rocstor presents a Type-C 5-in-1 hub featuring HDMI, 3 USB-A ports, and a

Type-C female port, oering an optimal solution for expanding the port options

of Type-C/Thunderbolt 3 hosts such as PCs, laptops, and mobile phones,

particularly benecial for devices with only one Type-C port. Equipped with the

latest DP1.4 Alt mode supported IC, this hub enables HDMI video output at a

maximum resolution of 4k/60Hz while concurrently transferring USB 3.1 data at

up to 5Gbps. The 3 USB-A ports facilitate simultaneous connection of 3 USB

devices. Furthermore, the Type-C female port supports PD 3.0 with a maximum

power delivery of 100W for PD Charging. Compatible with all DP Alt mode

supported Type-C hosts, this hub ensures versatile compatibility and

functionality.

Type-C Female (for PD Charging)

• Supports PD Charging 100W (20V/5A)

• Supports Fast Role Swap of PD 3.0, the

connected device will not get

disconnected while plugging in and

out PD Adapter

• 8W is dedicated to the functioning of

this product, the rest power (max 92W)

will be passed to charge for the host

Upstream:

Downstream:

Specication

Input / Output Connector

Input

Output

HDMI Female p1-x1

USB-A Female x3

Type-C Female x1（PD Charging)

Type-C Male x1

Warranty

Limited Warranty2 Years

Environmental

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

0°C to + 45°C

10% to 90 % RH (no condensation)

-10°C to + 70°C

10% to 90 % RH (no condensation)

Accessories Adapter

User Manual

Physical

Weight

Size

0.11lbs (53.3g)

4.5x1.3x0.37in (105.7x34x9.46mm)

Power Supply

USB-C PD Charging Port 100W(20V/5A)

English Version

FCC, CE

Regulatory Approvals

Certications

Electronic Parameter

Input Voltage

Power Consumption

5V

Max 2W

®

Congratulations

Thank you for purchasing this premium Rocstor product. For optimum performance and

safety, please read these instructions carefully before connecting, operating or using this

product. Please keep this manual for future reference.

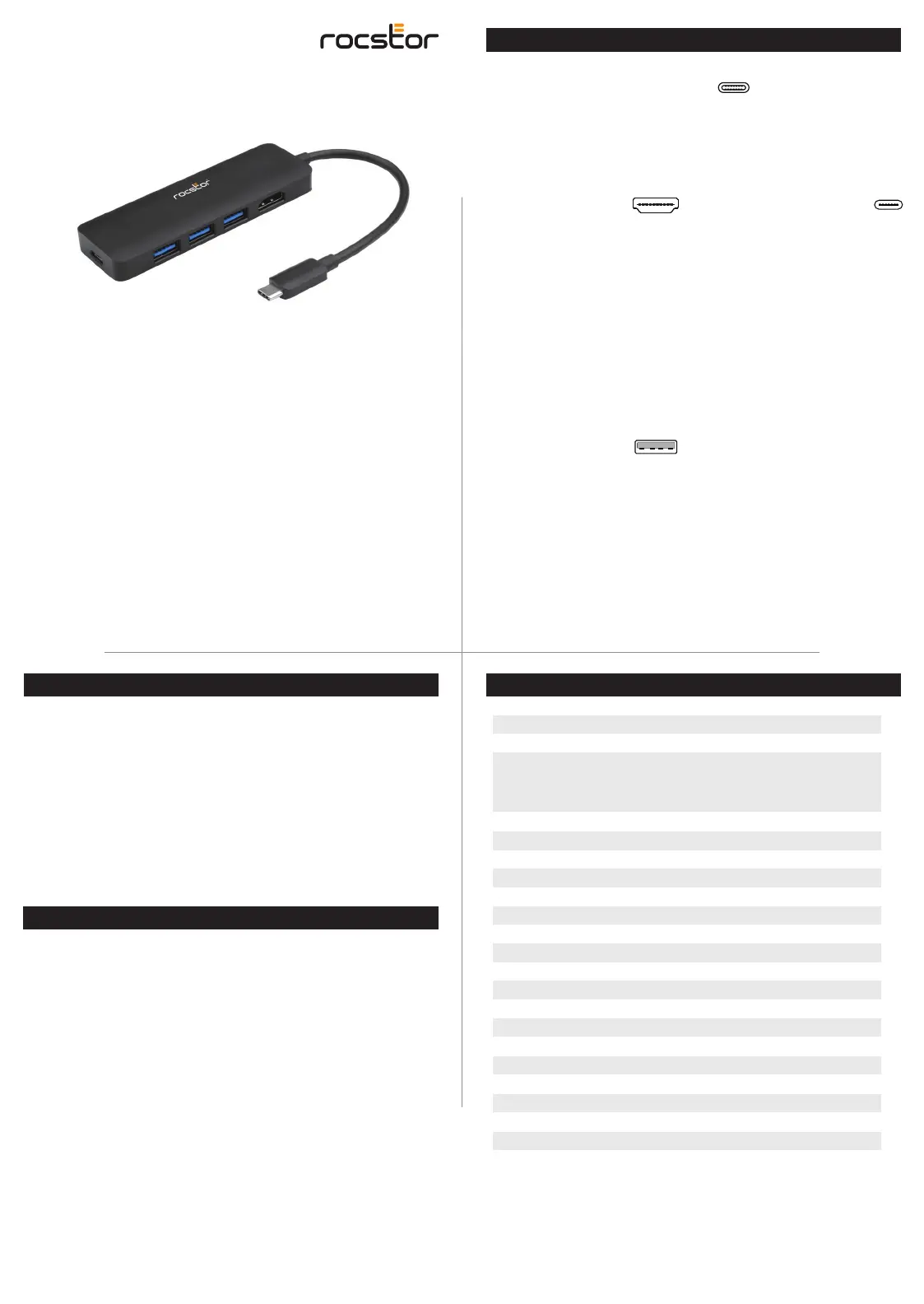

Type-C to HDMI/USB-Ax3/Type-C

PD Charging with DP1.4 Alt mode

User Manual

Y10A308-B1

USB-A 3.0 X3

• 1 USB-A port （next to HDMI port)

supports max downstream charging, 3

USB-A share max 8W (5V/1.6A)

downstream charging.

• Max 5Gbps bandwidth
