Features
USB Type-C Male (Connect to host computer)
• Support DP1.4 Alt mode, downward compatible with DP1.2 Alt mode
HDMI
• Support HDMI max 4K/60Hz
Support 6/8/10/12 bit color depth
output
• Support output pixel format
RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
• Support HDCP 2.3/2.2&HDCP1.4
• Support HDR
Note: When connecting a DP1.4 Alt mode
supported host, the max resolution of
HDMI is 4k/60Hz; When connecting a
DP1.2 Alt mode supported host, the max
resolution of HDMI is 4k/30Hz due to
bandwidth limitation
SD/Micro SD 3.0
• Support Secure Digital v3.0 UHS-I (Ultra
High Speed)：SDR12 (12.5Mbyte/s)/
DR25(25Mbyte/s)/SDR50(50Mbyte/s)/
DR50(50Mbyte/s)/SDR104(104Mbyte/s)
• Allow SD/Micro SD to work
simultaneously
Introduction
Package Contents
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in it:
• Main Unit x1
• User Manual
Rocstor introducing a versatile Type-C 6-in-1 hub featuring HDMI, 2 USB-A ports, SD/TF
card slots, and a Type-C female port. Perfect for expanding the connectivity options of
Type-C or Thunderbolt hosts such as PCs, laptops, and mobile phones, particularly
benecial for devices with only one Type-C port. Equipped with cutting-edge DP1.4 Alt
mode supported IC, it delivers HDMI video output at a maximum resolution of 4k/60Hz
while simultaneously transferring USB 3.0 data at up to 5Gbps. The hub also boasts 2
USB-A ports for dual device connection, along with SD/Micro SD slots enabling
simultaneous insertion of two cards for data transfer or information exchange with the
host. Additionally, the Type-C female port supports PD 3.0 Charging with a maximum
power delivery of 100W. Compatible with all DP Alt mode supported Type-C hosts, this
hub oers unparalleled versatility and convenience.
Type-C (for PD Charging)
• Support PD Charging with max 100W
(20V/5A), 15W is dedicated to the
functioning of this product, the rest
power (max 85W) will be passed to
charge for the host
• Support Fast Role Swap of PD 3.0, the
connected device will not get
disconnected while plugging out PD
Adapter
Upstream:
Downstream:
Support Fast Role Swap of PD 3.0, the connected device will not get disconnected
while plugging out PD Adapter
Specication
Input / Output Connector
Input
Output
HDMI Female x1(4K60Hz)
USB-A Female p1-x2 (5G)
SD/Micro SDx1(104MBps)
Type-C Femalex1（PD 100W)
Type-C Male x1
Warranty
Limited Warranty 3 Years
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
0°C to + 45°C
10% to 90 % RH (no condensation)
-10°C to + 70°C
10% to 90 % RH (no condensation)
Regulatory Approvals
Certications
Power Supply
USB-C PD Charging Port 100W(20V/5A)
FCC, CE
Accessories
User Manual English Version
®
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Type-C to HDMI/USB-Ax2/SD/Micro SD/Type-C
PD Charging with DP1.4 Alt mode
User Manual
Y10A309-B1
USB-A X2
• 1 USB-A port (close to Type-C female)
supports max 7.5W(5V@1.5A), another
USB-A supports max 900mA downstream
charging. And 2 USB-A share max 12W
(5V/2.4A) downstream charging.
• Max 5Gbps bandwidth per USB-A port
• Support short-circuit, over-current
protection
Technical Support / RMA
Hours: 9:00 am - 5:00 pm PST
Monday to Friday (except holidays)
Tell: +1 (818) 727-7000
( )National and international
Fax: +1 (818) 875-0002
Support
Warranty Information
Technical support is available to all the registered users of Rocstor products.

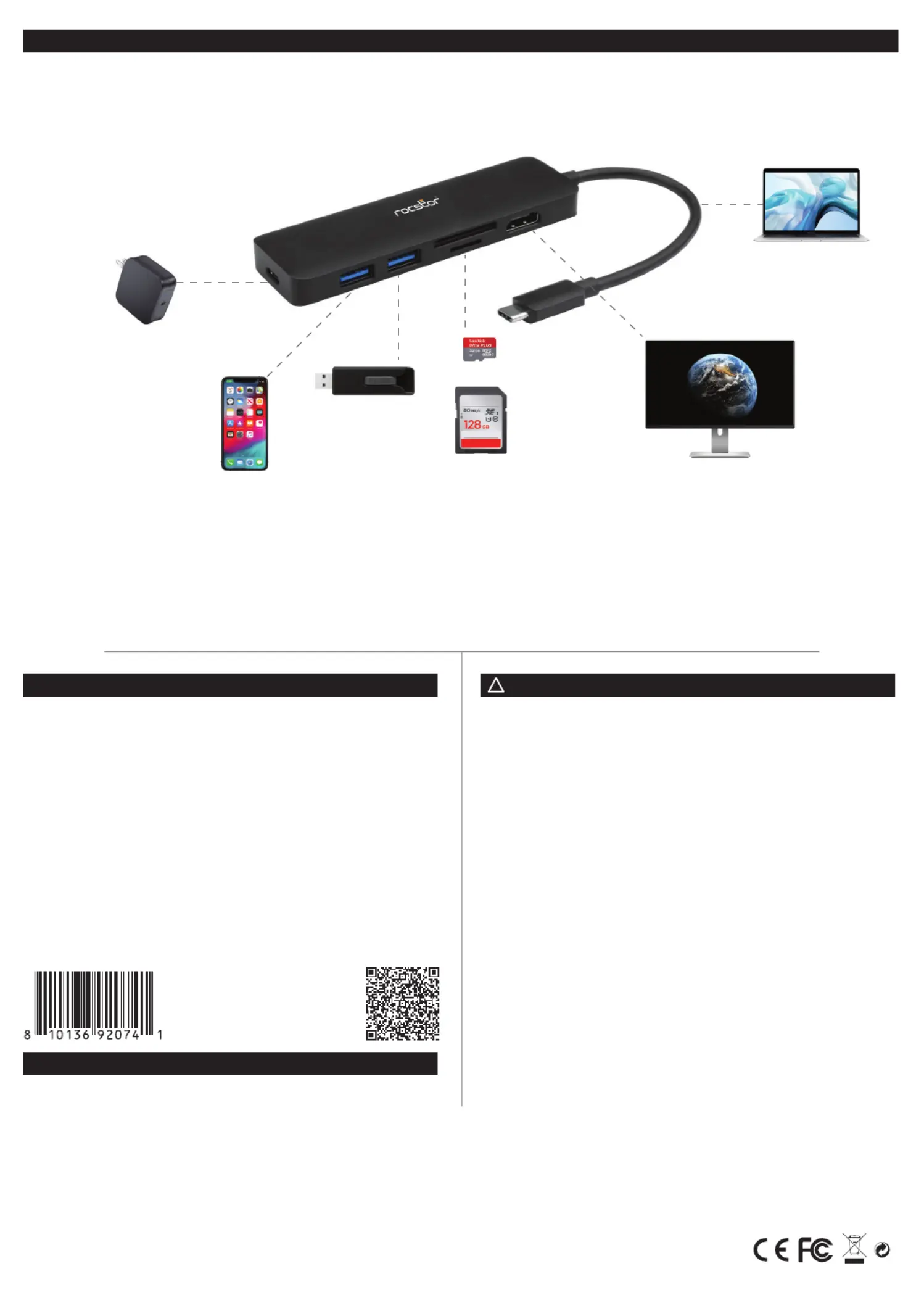

Connection Diagram
Safety Information:
Email: support@rocstor.com
WARNING:
Please follow these safety instructions. Failure to do so may result damages or injury.
It is normal that the device adapter becomes very warm during use.
Please note that:
Continuous contact with warm surfaces for extended time may cause discomfort or injury. In order to
reduce the possibility of overheating or heat-related injuries, always allow needed ventilation around
the device and use care when handling it. Avoid instances where your skin is in extended contact
with the device when plugged into the host computer. It is not recommended to sleep with the
device when plugged into a host computer. Avoid placing the device under a pillow, blanket, or your
body when connected to a host computer. If you have a medical condition that aects your ability to
detect heat against the body, extra care should be used. Never use the device in locations with water,
such as a sink, bathtub, or shower stall. Never connect or disconnect the device with wet hands.
Limitation of Liability
In no event shall the liability of Rocstor, Inc. and Rocstor (or their ocers, directors, employees or
agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or
otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of
the product exceed the actual price paid for the product. Some states do not allow the exclusion or
limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
Warranty Information
This product is backed by a (3) three-year warranty. Rocstor warrants its products against defects in
materials and workmanship for the periods noted, following the initial date of purchase. During this
period, the products may be returned for repair, or replacement with equivalent products at our
discretion. The warranty covers parts and labor costs only. Rocstor does not warrant its products from
defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
100W PD Adapter
Monitor or Projector
HDMI max 4K @ 60Hz
Host Computer with
USB Type-C
SD Card 3.0
Micro SD 3.0
USB-A (Port2) Devices
max 5Gbps
USB-A (Port1) Devices
max 5Gbps 1.5A
!
©2024 Rocstor, Inc. All rights reserved. Rocstor is registered trademark of Rocstor, Inc.
Apple®, the Apple logo, Mac®, MacBook®, MacBook Pro®, MacBook Air®, iPad®, iPad Air®, iPad mini®,
iPad Air®, iPhone®, MacOS® are registered trademarks of Apple, Inc. Google® and Chromebook™ are
registered trademarks of Google, LLC. Microsoft® is registered trademarks of Microsoft corporation. Al
other product names and logos mentioned herein may be trademarks of their respective companies.
Thunderbolt is a trademark of Intel Corporation or its subsidiaries. USB Type-C® and USB-C® are
registered trademark of USB Implementers Forum. The terms HDMI, HDMI High-Denition
Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks
of HDMI Licensing Administrator, Inc. Feature and specication are subject to change without notice.
All trademarks and registered trademarks are the property of their respective. All rights reserved.
