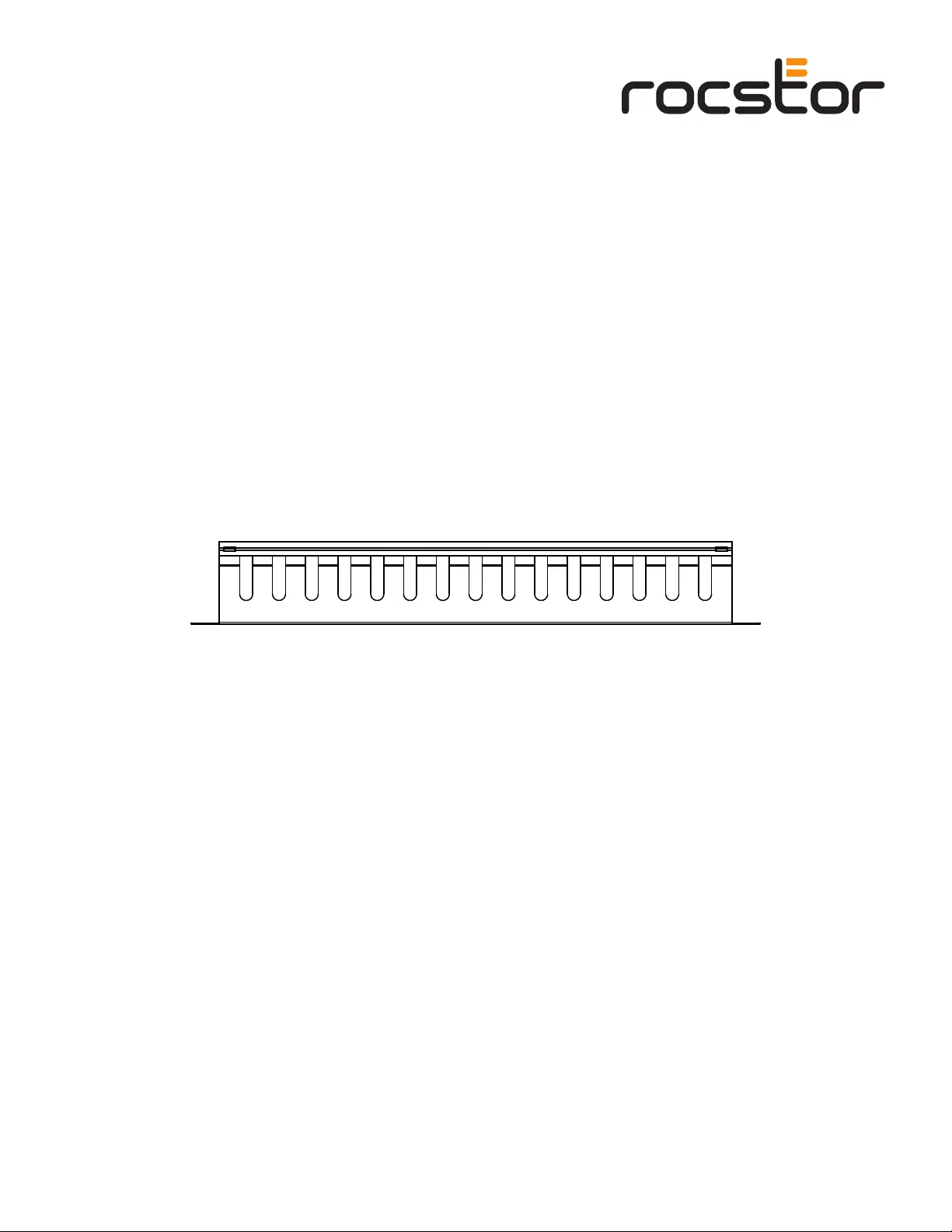

2U Horizontal Finger Duct Rack Cable Management Panel
with Cover for 19" Network Rack - Metal - Black
User Manual
Y10E044-B1
© 2022 Rocstor is registered trade mark of Rocstorage, Inc. Any unauthorized copying, duplicating, or other reproduction of the contents hereof
is prohibited without written consent from Rocstor. All rights reserved. Other trademarks are property of their respective owners.
Feature Identication
Page 1
1 - Mounting Ears
• Mounting Ears Securely Duct Cable Management
Panel to the rack
2 - Duct Cover
• Removable Duct Cable Management Panel keeps
cables out of the way during installation or upgrades
3 - Cable Management Fingers
• Duct Cable Management Panel allows cables to be inserted and
held in place and is available along the length on both sides.
4 - Duct Cover Latches
• The Duct Cable Management Panel has a latching mechanism on
each corner that keeps the Duct Cover in its position.
5 - Cable Path
• Duct Cable Management Panel allows the inserted cables to run o to the side.
1
3
4
2
5
Package included items
• Cable Management Panel (Y10E044-B1) x 1
• M6 Screws x 4
• M6 Cage Nuts x 4
• Plastic Washers x 4
Measurements
Page 2
Dimension Unit : Millimeter (mm)
13
6.5
27
88.1
76.2
155 46 155
482.6
465
70.07
Installation
Installation
1. Decide where to install the Duct Cable Management Panel by determining the U
Height Number or mounting location on the rack posts.
2. Install four Cage Nuts onto the Cage Nut Holes at the designated U Height Number. Utilize a Cage Nut
Tool or your preferred method of installation, if available, to securely fasten them in place.
3. Align the Mount Ears with the Cage Nuts which were previously inserted on the rack posts.
4. IPlace the Plastic Washers (four in total) onto the Screws (also four in total). Utilize a Phillips Head
Screwdriver to install the Screws and securely fasten the Duct Cable Management Panel to the Mount
ing Posts of the rack.
Procedure
1. Thread the cables through the Cable Management Fingers and the rear Passthrough Holes, arranging
them as desired for organization.
2. Attach and rmly secure the Duct Cover in place by utilizing the four Duct Cover Latches.
