T G SHE UARDIAN ERIES
INSTALLATION MANUAL
1045P-Guardian 2 bike
1047P-Guardian 3 bike
Note: Before installing
carrier, clean all surfaces
of vehicle which may
come in contact with the
carrier or its straps. Make
sure foam pads are free of
debris as it could scratch
vehicle's finish.

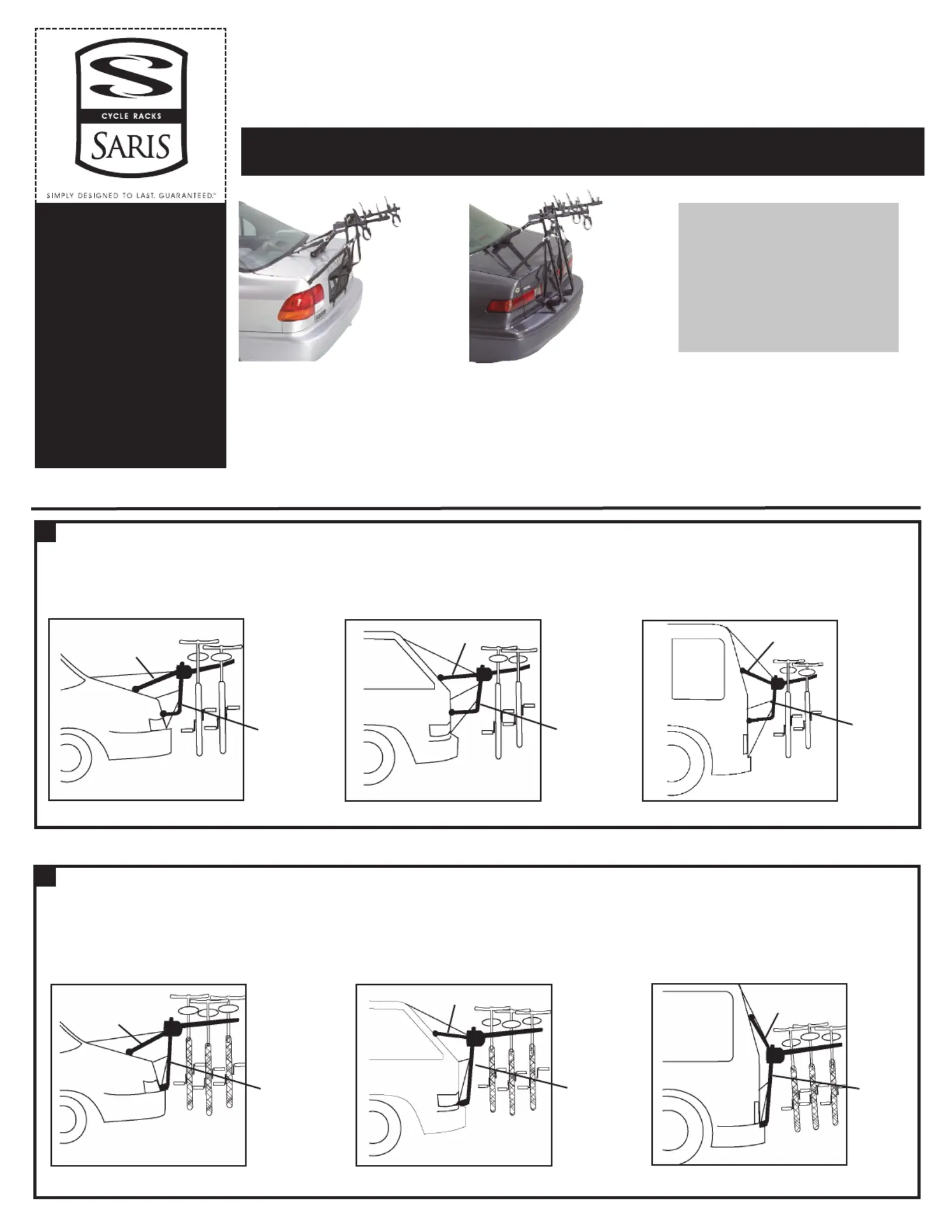

ADJUST CARRIER TO VEHICLE:
GUARDIAN 2-
Following the illustration below that most resembles your vehicle, adjust the top leg such that the lower leg
rests on or above liscense plate and the rack assumes the position that most resembles the illustration.
Lower leg must rest on or above license plate (not on bumper).
Position 1 or 2
Position 3 or 4
Position 4 or 5
Position 1 or 2
Position 3 or 4
Position 4 or 5
GUARDIAN 3-
Following the illustration below that most resembles your vehicle, adjust the top leg such that the lower leg
rests on the bumper and is positioned vertically. Lower leg must rest on bumper.
1
1
Lower Leg
Lower Leg
Lower
Leg
Lower Leg
Lower Leg
Lower
Leg
Please READ and FOLLOW all instructions carefully.
Check Fit Guide for compatibility.
Top Leg
Top Leg
Top Leg
Top Leg
Top Leg
Top Leg
Chances are, your bikes are just
like ours - your most valued
possessions. And if it has the
Saris name on it, nothing we
build goes out the door unless
it’s worth putting those posses-
sions on. Call it obsessive. Call it
eccentric. We just chalk it up to
caring a hell of a lot about creat-
ing the last rack you’ll ever need.
FINALLY – A
COMPANY THAT
LOVES BIKES AS
MUCH AS YOU DO.

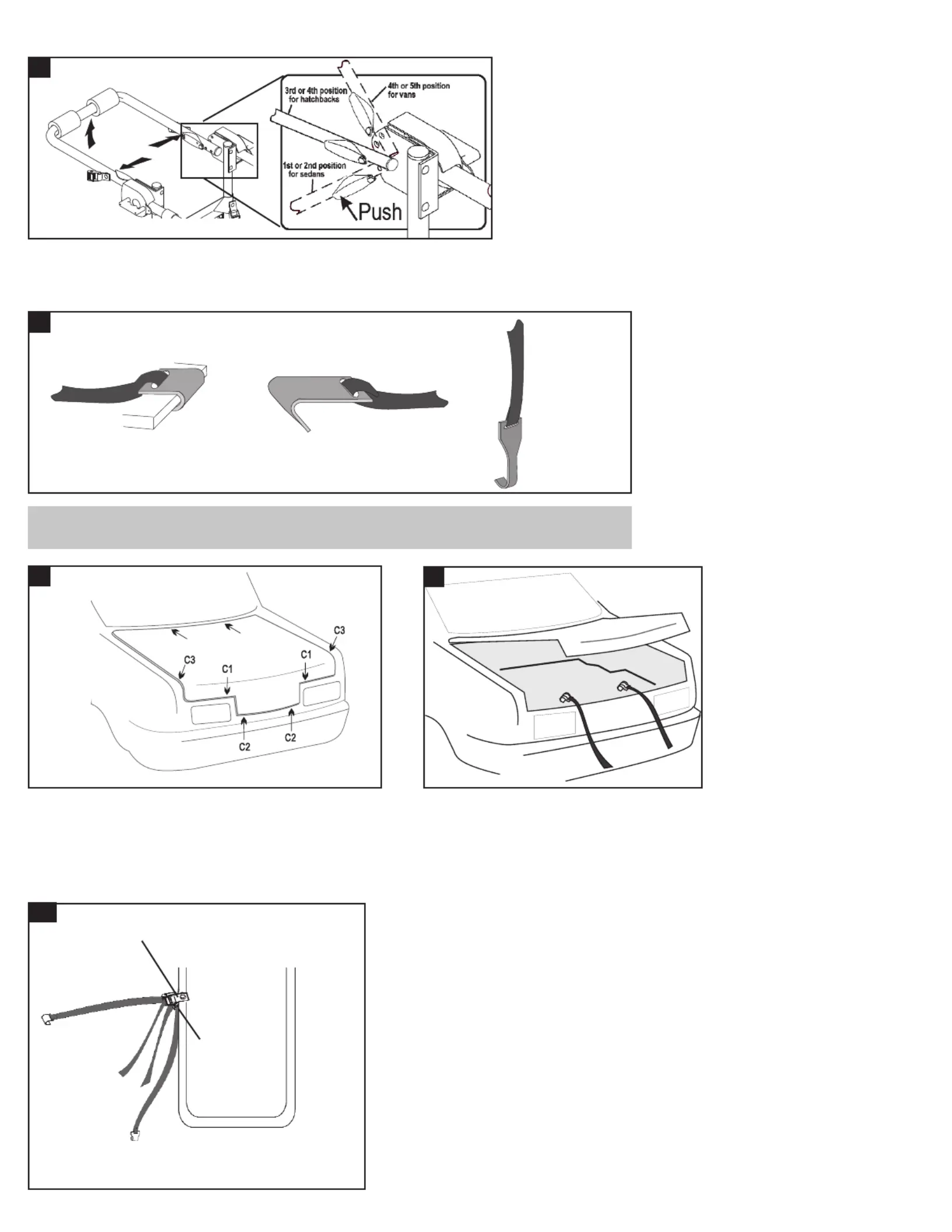

ATTACH STRAPS:
Attach Upper-hook straps to top
hinge line of vehicle as shown in
Fig.'s 3 & 4. Always place strap
between car surface and hook.
3
Note: Hook attachment must be to a supported hinge line - NEVER attach
to glass, unsupported plastic, or roof rack.
Unless otherwise specified in current fit chart,
www.saris.com attach inside strap hooks (Fig. 6)
to bottom edge of trunk at position C1 (ideally)
or C2 (Fig. 5). Attach outside strap hooks above
bend in trunk at position C3. (marked on hook)
Upper Hook
Upper Hook
4
Inside Strap Hook and Hatch Hugger special application:
ONLY IF SPECIFIED IN CURRENT FIT CHART
(available at www.saris.com)
Some vehicles require placing the Inside Strap Hooks in the trunk. To
do so: Loosen straps, place hooks inside trunk, close trunk, pull straps
until hooks brace against trunk wall, and tighten as usual (Fig. 5).
Tighten all straps evenly, removing any
slack. When straps are taut, shake
carrier to check for movement. Retighten if necessary.
5
ADJUST CARRIER TO VEHICLE CONTINUED:
Press in on adjusting levers simultaneously and raise rear leg,
then release levers allowing pins to snap into place (Fig. 2).
2
PUSH
Outside strap
Inside strap
6
View from front of rack
Upper Hook
Side Strap Hook
Lower
Strap Hook

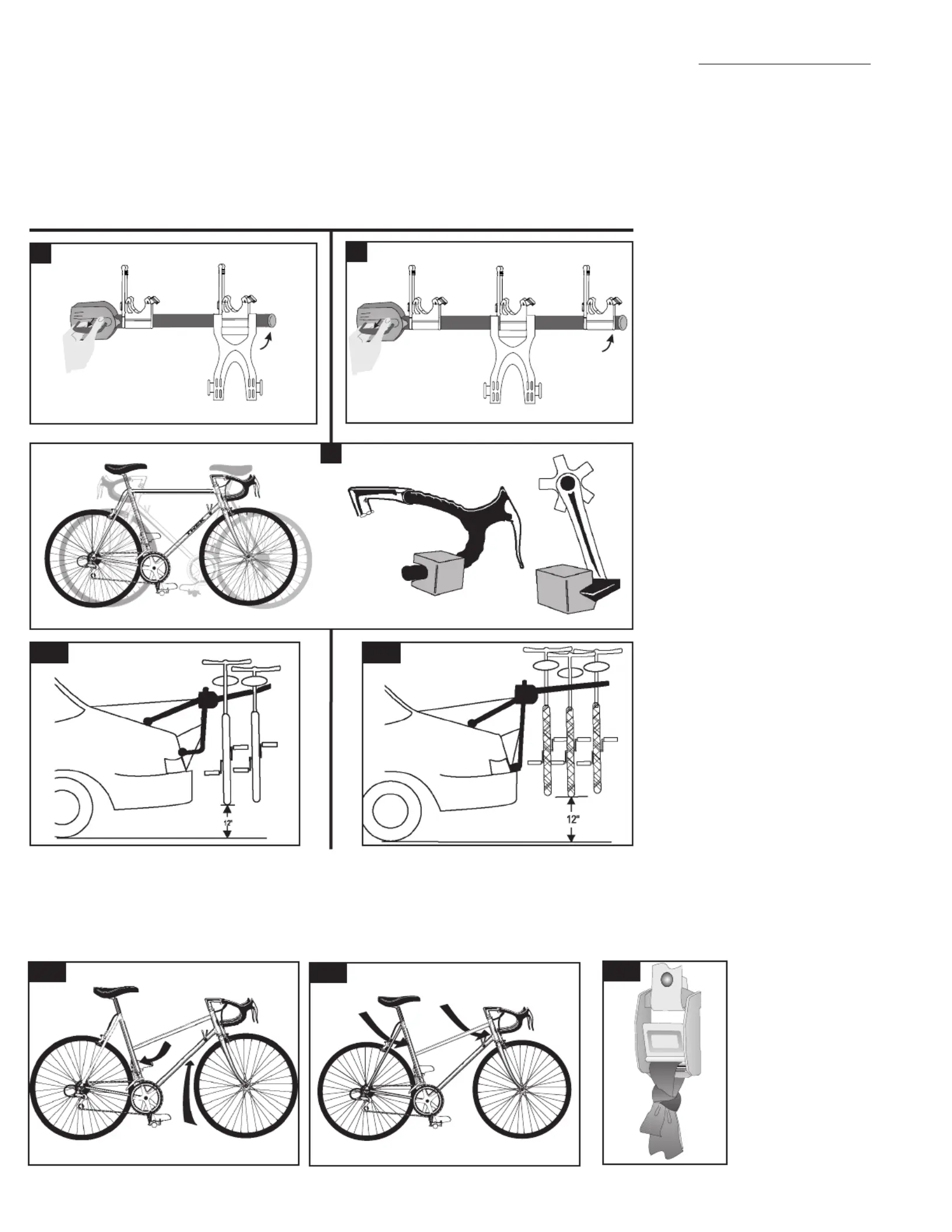

LOAD AND SECURE BIKES:
With thumb braced against arm cover, pull out on arm adjustment handle. Raise carrier arm slightly above horizontal
(never below horizontal) and release handle allowing pins to click into place. It may be necessary to wiggle arm gently
for pins to engage (Fig. 7).
Place bikes on carrier arms, alternating direction of handlebars (Fig. 8).Rest the bicycle’s top tube in hold-down saddles.
Cover inner pedal of first bike to avoid scratching vehicle finish (Fig. 8). The purchase of Saris Protect-O-Pads(#2060) is rec-
ommended to protect potential contact areas. Make sure foam pads are free of debris as it could scratch vehicle's finish.
7
7
Guardian 2 bike
Guardian 3 bike
8
Check clearance. Carrier must rest high enough to allow bike tires at least 12" of
ground clearance (Fig. 9). For women’s bikes or for additional ground clearance
mount bicycles under the "V" in the frame (Fig 10). For women's bikes, keep the
weight of the crank centered on the rack (Fig 11). Women’s children’s and unique
frame bikes may also be mounted with the aid of the Bike Beam #3037, available
at your Saris dealer.
9
12
9
10
Secure bike with hold
down straps and pull
tight.
Retighten straps
and tie off (Fig 12).
11
