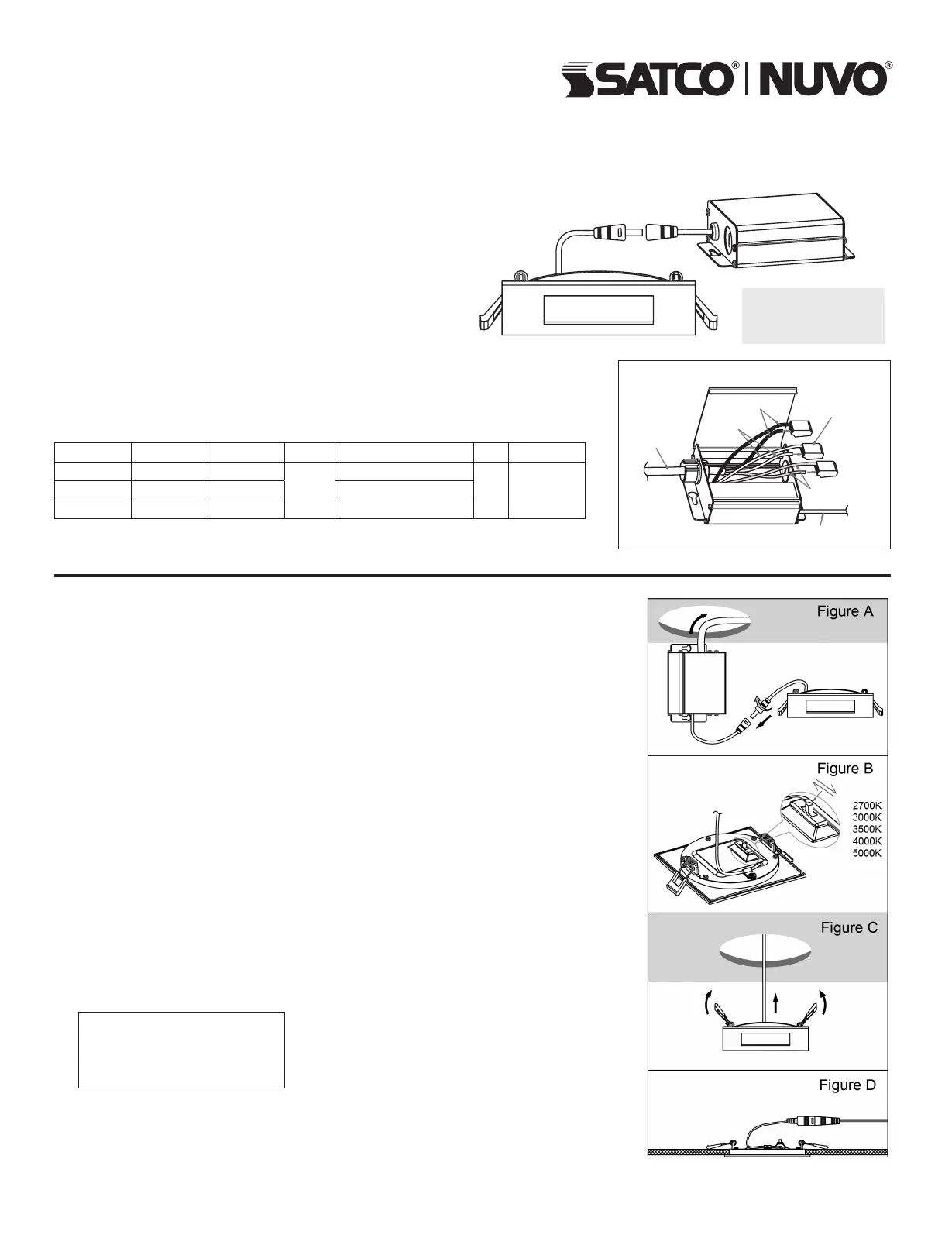

LED EDGE LIT 4", 6"& 8"

SQUARE RECESSED DOWNLIGHTS

Models: S11829, S11830, S11831

Satco Products, Inc.

Brentwood, NY 11717

INSTALLATION

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

© Copyright 2020 Satco Products, Inc. 6/20

Fixture Includes:

1 LED Lamp

1 Junction Box

TOOLS REQUIRED: Hole saw, measuring tape and connector cables (as needed).

NOTE: Use extensions if necessary. Available connector cables are 6' (1.8m).

Connector cables are linkable.

1. Turn power OFF from the electrical panel before starting installation.

2. Cut a hole in the ceiling for the downlight in a suitable position. Refer to Hole Cut

Dimension chart (below).

3. Run the electrical wire from the switch (power supply wire) through the mounting hole.

Use NMD90 Romex or BX cable. See Figure A.

4. Open the Junction Box swing cover and remove the appropriate knockouts.

5. Insert the power supply wire through the knockout and fasten with a cable connector

(not included).

6. Connect wires inside the Junction Box using the quick connect terminals. Connect

green ground with the green box wire. Connect the black and white power leads with the

matching black and white box wires. See Wiring Diagram.

7. Put all wires and connections back into the box and close the cover securely.

8. New Construction Applications: Junction Box shall be firmly secured to the studs,

joists or similar fixed structural units.

Remodel Applications: Do not require the Junction Box to be firmly secured to xed

structural units. Remove the Junction Box tabs, then insert into ceiling.

9. Choose desired color temperature. See gure B.

10. Bend back the two torsion springs and slowly t the xture through the ceiling hole.

The torsion springs will pull the xture into place. See Figures C & D.

11. Once installation is complete, turn power ON to conrm the xture is working properly.

Hole Cut Dimensions:

4" xture = ø 4 3/16" (106mm)

6" xture = ø 6 3/16" (157mm)

8" xture = ø 8 3/16" (208mm)

WIRING DIAGRAM

Power supply

Cable to fixture

Green wires

Black wires

White wires

Quick connect

terminals

ModelDimensionsWatts VoltsCCTCRIFinish

S118294 inches10W

120V

27K,30K,35K,40K,50K

90White

S118306 inches12W27K,30K,35K,40K,50K

S118318 inches24W27K,30K,35K,40K,50K
